Vehicle Exploded View - APRILIA TUONO 125 RS 125 Tuono 2003-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

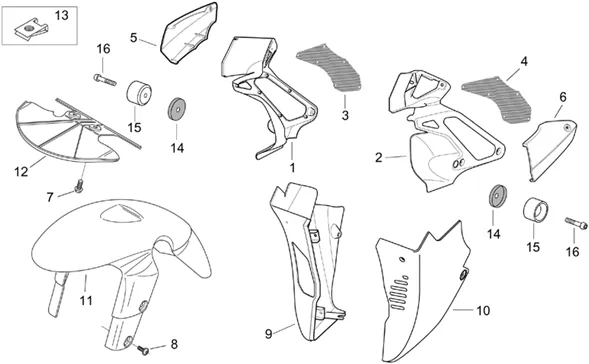

Chassis : 28.09 CARROSSERIE AV. II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/273/RS_125_Tuono_2003-2004_28.09.PNG)
1 |
AP8168842 - FIANCHETTO DX More informationQuantity required : 1 |
||||||
|
2 |
AP8168843-SIDE PANEL SX More informationQuantity required : 1 |
||||||
|
3 |
AP8168844-RETE SIDE PANEL DX More informationQuantity required : 1 |
||||||
|
4 |
AP8168845-RETE SIDE PANEL SX More informationQuantity required : 1 |
||||||
|
5 |
AP8168836-CONVOGLIATORE ESTERNO DX More informationQuantity required : 1 |
||||||
|
6 |
AP8168837-CONVOGLIATORE ESTERNO SX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
7 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
8 |
SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298 More informationQuantity required : 4 |
||||||
|
9 |
AP8168840-PUNTALE CARENA DX More informationQuantity required : 1 |
||||||
|
10 |
AP8168890-PUNTALE CARENA SX More informationQuantity required : 1 |
||||||
|
11 |
AP8156072 - PARAFANGO ANT.V. More informationQuantity required : 1 |
||||||
|
11 |
AP8156090 - PARAFANGO ANT.V.ROSSO T. More informationQuantity required : 1 |
||||||
|
11 |
AP8156148 - PARAFANGO ANT.V.SILVER M. More informationQuantity required : 1 |
||||||
|
12 |
AP8139129 - FERMETURE INF. BULLE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
13 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 6 |
||||||
|
14 |
AP8134922 - FOND; More informationQuantity required : 2 |
||||||
|
15 |
AP8163193 - TAMPON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/8/7/img/50887.jpg)
16 |
SCREW BTR (10X30) OEM PIAGGIO COMMON A LA RANGE-AP8150469 More informationQuantity required : 2 |
