Vehicle Exploded View - APRILIA TUONO 125 RS 125 Tuono 2003-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

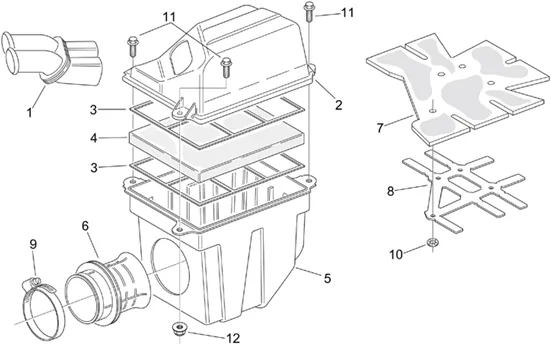

Chassis : 28.19 CORPS FILTRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/273/RS_125_Tuono_2003-2004_28.19.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/6/3/4/img/46634.jpg)
1 |
SLEEVE D'ASPIRATION OEM APRILIA 125 RS, RX, SX 2010 <-AP8120748 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/7/1/6/img/46716.jpg)
1 |
SLEEVE D'ASPIRATION ON COVER DE AIR FILTER OEM PIAGGIO APRILIA 125 RX, SX, MX, RS, CLASSIC, TUONO-AP8120997 More informationQuantity required : 1 |
||||||
2 |
AP8168042-COVER BODY FILTER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/8/6/4/7/img/48647.jpg)
3 |
GRILLE LATCH AIR FILTER OEM PIAGGIO 125 RS APRILIA 2005 <-AP8131121 More informationQuantity required : 2 |
||||||
|
4 |
AIR FILTER"PIAGGIO GENUINE PART" APRILIA 125 RS 1995>2010, AF1 1990>1992, TUONO 2003>2004 -AP81020800P More informationQuantity required : 1 |
||||||
|
4 |
AIR FILTER"PIAGGIO GENUINE PART" APRILIA 125 RS 1995>2010, AF1 1990>1992, TUONO 2003>2004 -AP81020800P More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/4/0/3/2/img/54032.jpg)
5 |
BODY DE AIR FILTER OEM PIAGGIO APRILIA 125 RS, TUONO 1995 > 2010-AP8178561 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/6/5/7/img/46657.jpg)
6 |
SLEEVE D'ASPIRATION ON BASE DE AIR FILTER OEM PIAGGIO APRILIA 125 RS, TUONO 1999 > 2010-AP8120810 More informationQuantity required : 1 |
||||||
|
7 |
AP8117111 - ISOLANT CORPS FILTRE; More informationQuantity required : 1 |
||||||
|
8 |
AP8102670-FILET FIX. ISOLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/8/img/71178.jpg)
9 |
CLAMP (70-50X8) ORRIGINE PIAGGIO COMMON A LA RANGE-AP8102401 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/8/img/71888.jpg)
10 |
WASHER ELASTIC (5) OEM PIAGGIO COMMON A TOUTE LA RANGE-AP8150450 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
11 |
SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152279 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
12 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 2 |
