Vehicle Exploded View - APRILIA TUONO 125 RS 125 Tuono 2003-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

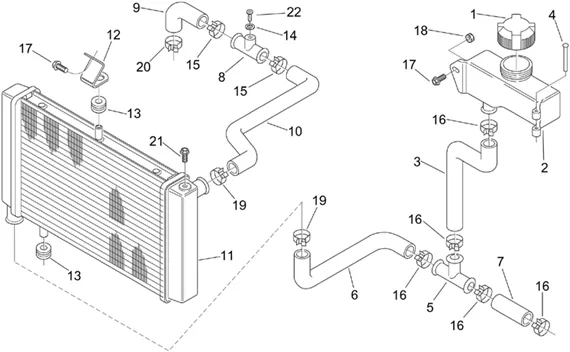

Chassis : 28.18 RADIATEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/273/RS_125_Tuono_2003-2004_28.18.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/1/1/6/img/45116.jpg)
1 |
CAP VASE COOLING OEM APRILIA 50 SR H2O 1994 > 2012-AP8101912 More informationQuantity required : 1 |
||||||
2 |
AP8101910 - VASE D'EXPANSION More informationQuantity required : 1 |
||||||
|
3 |
AP8120787-TUBE RACC.-VASE EXP. More informationQuantity required : 1 |
||||||
|
4 |
AP8101924 - RIVET FORE T?TE BOMB More informationQuantity required : 1 |
||||||
|
5 |
AP8101916 - "RACCORD EN ""T""" More informationQuantity required : 1 |
||||||
|
6 |
AP8120790 - TUBE RAD.-RACCORD T More informationQuantity required : 1 |
||||||
|
7 |
AP8120946-HOSE PUMP FITTING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/1/3/3/img/45133.jpg)
8 |
AP8102112 - RACCORD RENIFLARD More informationQuantity required : 1 |
||||||
|
9 |
AP8102118-TUBE CUL. FITTING More informationQuantity required : 1 |
||||||
|
10 |
AP8120786 - TUBE RADIAT.-RACCORD More informationQuantity required : 1 |
||||||
|
11 |
AP8102704 - RADIATEUR More informationQuantity required : 1 |
||||||
|
12 |
AP8146162-BRACKET RADIATOR UPPER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/4/img/71384.jpg)
13 |
RUBBER/SPACER OEM PIAGGIO COMMON A LA RANGE-AP8120030 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/6/2/img/50962.jpg)
14 |
WASHER PLATE (6. 4X12) OEM PIAGGIO COMMON A LA RANGE-AP8152184 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/1/0/7/img/45107.jpg)
15 |
CLAMP CLIC (23, 5X8) OEM PIAGGIO COMMON A LA RANGE-AP8101743 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/2/8/img/72128.jpg)
16 |
AP8201169-CLAMP CLIC More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
17 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/2/img/71812.jpg)
18 |
NUT (M6) OEM PIAGGIO COMMON A LA RANGE-AP8150026 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/1/2/3/img/45123.jpg)
19 |
CLAMP CLIC HOSE (23, 5X8) OEM PIAGGIO COMMON A LA RANGE-AP8101927 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/2/img/71402.jpg)
20 |
CLAMP CLIC 28. 6 OEM PIAGGIO COMMON A LA RANGE-AP8120536 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
21 |
SCREW FLANGE TH (6X12) OEM PIAGGIO COMUUN A LA RANGE-AP8152277 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/7/4/img/50874.jpg)
22 |
SCREW PARKER (5, 5X15, 9) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-AP8150426 More informationQuantity required : 1 |
