Vehicle Exploded View - DERBI GPR 50 RACING 2002 2ª EDICION DERBI

Moteur : 23 GROUPE ECHAPPEMENT

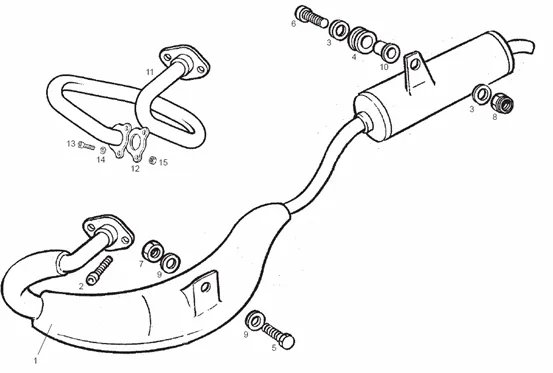

Groupe echappement
Search
00H03416601 - ENSEMBLE TUBE D'ECHAPPEMENT

1
P2R reference P2R reference 64796
Maker reference Maker reference 00H03416601

00H03416601 - ENSEMBLE TUBE D'ECHAPPEMENT

More information

Quantity required : 1

00H03421602 - SCTO.TUBO ESC.RACING FRANCIA

1
P2R reference P2R reference 193640
Maker reference Maker reference 00H03421602

00H03421602 - SCTO.TUBO ESC.RACING FRANCIA

More information

Quantity required : 1

00H03429601 - SCTO.TUBO ESC. C/PRT.GPR00 WVT

1
P2R reference P2R reference 193477
Maker reference Maker reference 00H03429601

00H03429601 - SCTO.TUBO ESC. C/PRT.GPR00 WVT

More information

Quantity required : 1

00H03430601 - SCTO.TUBO ESC.C/PR GPR RAC.USA

1
P2R reference P2R reference 193641
Maker reference Maker reference 00H03430601

00H03430601 - SCTO.TUBO ESC.C/PR GPR RAC.USA

More information

Quantity required : 1

00H03431601 - SCTO.TUBO ESC.RACING CANADA

1
P2R reference P2R reference 193642
Maker reference Maker reference 00H03431601

00H03431601 - SCTO.TUBO ESC.RACING CANADA

More information

Quantity required : 1

00000004620 - VIS T. CREUSE 6M100X20.

2
P2R reference P2R reference 63571
Maker reference Maker reference 000000046205

00000004620 - VIS T. CREUSE 6M100X20.

More information

Quantity required : 1

WASHER PLATE (6X15) OEM PIAGGIO COMMON A LA RANGE-00D01200171

3
P2R reference P2R reference 63876
Maker reference Maker reference 00D01200171

WASHER PLATE (6X15) OEM PIAGGIO COMMON A LA RANGE-00D01200171

More information

Quantity required : 1

5
P2R reference P2R reference
Maker reference Maker reference 000000028165

6
P2R reference P2R reference
Maker reference Maker reference 000000046255

NUT (M8) OEM PIAGGIO COMMON A LA RANGE-00000021080

7
P2R reference P2R reference 63587
Maker reference Maker reference 000000210805

NUT (M8) OEM PIAGGIO COMMON A LA RANGE-00000021080

More information

Quantity required : 1

NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-00000023060

8
P2R reference P2R reference 63590
Maker reference Maker reference 000000230605

NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-00000023060

More information

Quantity required : 1

WASHER PLATE (8. 4X15. 8X1. 5) OEM PIAGGIO COMMON A LA RANGE-00000031080

9
P2R reference P2R reference 63596
Maker reference Maker reference 000000310805

WASHER PLATE (8. 4X15. 8X1. 5) OEM PIAGGIO COMMON A LA RANGE-00000031080

More information

Quantity required : 1

BUSH EN T (D6) OEM PIAGGIO COMMON A LA RANGE-00G01001821

10
P2R reference P2R reference 63958
Maker reference Maker reference 00G01001821

BUSH EN T (D6) OEM PIAGGIO COMMON A LA RANGE-00G01001821

More information

Quantity required : 1

00H03434011 - R-SCTO.TUBO ESC.GPR-50 WVTA

11
P2R reference P2R reference 193643
Maker reference Maker reference 00H03434011

00H03434011 - R-SCTO.TUBO ESC.GPR-50 WVTA

More information

Quantity required : 1

00G03400321 - JOINT FIX.SILENCIEUX D-ECHAP.H

12
P2R reference P2R reference 187729
Maker reference Maker reference 00G03400321

00G03400321 - JOINT FIX.SILENCIEUX D-ECHAP.H

More information

Quantity required : 1

SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-018639

13
P2R reference P2R reference 65447
Maker reference Maker reference 0186395

SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-018639

More information

Quantity required : 1

WASHER GROWER D6 OEM PIAGGIO COMMON A LA RANGE-00442060002

14
P2R reference P2R reference 63790
Maker reference Maker reference 004420600025

WASHER GROWER D6 OEM PIAGGIO COMMON A LA RANGE-00442060002

More information

Quantity required : 1

NUT FLANGE (6) OEM PIAGGIO COMMON A LA RANGE-219277

15
P2R reference P2R reference 65941
Maker reference Maker reference 219277

NUT FLANGE (6) OEM PIAGGIO COMMON A LA RANGE-219277

More information

Quantity required : 1
