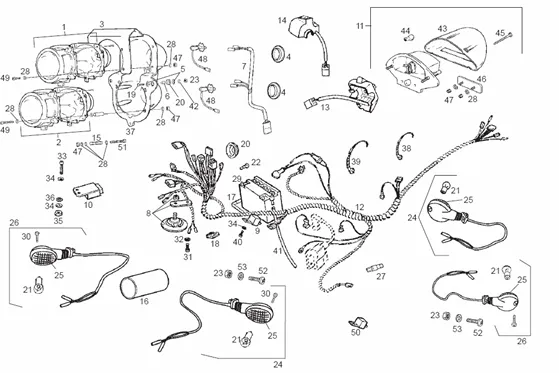

Vehicle Exploded View - DERBI GPR 50 RACING 2002 2ª EDICION

	P2R reference	193600
	Maker reference	00H01018011

00H01018011 - CTO.FARO SUP.LUZ LARGA GPR RAC

	P2R reference	193601
	Maker reference	00H01017011

00H01017011 - CTO.FARO INF LUZ CORTA GPR RAC

	P2R reference	193602
	Maker reference	00H01019011

00H01019011 - CTO.FARO LUZ CORTA IZ. GPR RAC

	P2R reference	193603
	Maker reference	00H01600661

00H01600661 - SOPTE.TABL.PORTAINS.GPR RACING

	P2R reference	193604
	Maker reference	00H05700701

00H05700701 - TAPETA PORTALAMP.FARO GPR RAC

	P2R reference	188393
	Maker reference	00D01500551

00D01500551 - CUVETTE

	P2R reference	63882
	Maker reference	00D01500471

SPACER DE GUIDE-FIL OEM PIAGGIO GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX-00D01500471

	P2R reference	193605
	Maker reference	00H02301121

00H02301121 - CTO.INSTAL.ELEC.FARO GPR RAC

	P2R reference	63903
	Maker reference	00F01001311

00F01001311 - ZLAXON COMPLET

	P2R reference	166209
	Maker reference	00G03900011

00G03900011 - ENS.RELAIS DEMARRAGE ELECT.

	P2R reference	70888
	Maker reference	898891

REGULATEUR 50 A BOX OEM PIAGGIO 50 GILERA SMT, RCR 2006 > 2017/DERBI SENDA 2000 > 2017/APRILIA RS 2006 > 2010, 50 RS4 2011 > 2017, RX, SX 2006 > 2017 (RED)-898891

	P2R reference	193606
	Maker reference	00H01008321

00H01008321 - CTO.FARO PILOTO GPR RACING

	P2R reference	64389
	Maker reference	00H01028301

00H01028301 - GR.CAVETTI ELETTR.GPR GIL.REP.

	P2R reference	193607
	Maker reference	00H01030301

00H01030301 - CTO.INSTAL.ELECTR.GPR RAC.USA

	P2R reference	64590
	Maker reference	00H01700701

00H01700701 - ENSEMB.COMMUT.POUR CLIGNOTEUR

	P2R reference	193608
	Maker reference	00H01701701

00H01701701 - CTO.CONMT.ITTE.RACING USA

	P2R reference	193609
	Maker reference	00H02300161

00H02300161 - CTO.PARO MOTOR RACING USA

	P2R reference	193428
	Maker reference	00H02300171

00H02300171 - ENSEMBLE COMMUTATEUR PHARES

	P2R reference	64691
	Maker reference	00H02304501

HEADLIGHT ADJUSTMENT SPRING "PIAGGIO GENUINE PART" APRILIA 50 SX, RX -00H02304501

	P2R reference	64684
	Maker reference	00H02300961

PROTECTOR DE CONNEXIONS ON HARNESS OEM PIAGGIO GILERA 50 SMT, RCR 2011 >/DERBI 50 SENDA 2000 >/APRILIA 50 SX, RX 2011 >-00H02300961

	P2R reference	64783
	Maker reference	00H03301551

00H03301551 - SUPPORT BATTERIE GPR-50"R"

	P2R reference	64119
	Maker reference	00G04401462

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462

	P2R reference	193610
	Maker reference	00D05900101

00D05900101 - SCTO.TOR.6M100X25.D-912/8.8.I1

	P2R reference	63673
	Maker reference	000089150205

RUBBER MOUNT DE RADIATOR OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA RS 2006 > 2011, SX, RX 2006 >-00008915020

	P2R reference	67298
	Maker reference	584332

AMPOULE/LAMPE 12V 10W BAU15S/RY10 ORANGE OEM PIAGGIO COMMON A LA RANGE-584332

	P2R reference	64610
	Maker reference	00H01801471

00H01801471 - BOUTON POSITIONNEUR BATTERIE GP

	P2R reference	63590
	Maker reference	000000230605

NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-00000023060

	P2R reference	187547
	Maker reference	00H01701301

00H01701301 - GLIGNOTEURS AR. DROITE

	P2R reference	64596
	Maker reference	00H01704071

00H01704071-GLACE INDICATOR ARRIEGE

	P2R reference	187548
	Maker reference	00H01701391

00H01701391-GLIGNOTEURS AR. LEFT

	P2R reference	64030
	Maker reference	00G02300811

00G02300811-DOOR-FUSIBLE

	P2R reference
	Maker reference	031040

VIS

	P2R reference	65970
	Maker reference	234390

BATTERY 12V 4AH YB4L-B OEM PIAGGIO COMMON A LA RANGE-234390

	P2R reference	64012
	Maker reference	00G01701091

00G01701091 - BOULON SERRAGE GLACE CLIGNOTAN

	P2R reference	66338
	Maker reference	319446

SCREW BTR (6X10) OEM PIAGGIO COMMON A LA RANGE-319446

	P2R reference	69496
	Maker reference	847226

WASHER PLATE (5X10) OEM PIAGGIO COMMON A LA RANGE-847226

	P2R reference	65460
	Maker reference	0201055

NUT M5 OEM PIAGGIO COMMON A LA RANGE-020105

	P2R reference	71851
	Maker reference	AP8150284

WASHER EVENTAIL (D5) OEM PIAGGIO COMMON A LA RANGE-AP8150284

	P2R reference	193611
	Maker reference	00H05701361

00H05701361 - SOPTE.OPTICA FARO GPR RACING

	P2R reference	63866
	Maker reference	00A00900531

00A00900531 - COLLIER

	P2R reference	63899
	Maker reference	00F00900531

HOSE CLAMP NYLON TYPE RILSAN (290X4. 8) OEM PIAGGIO COMMON A LA RANGE-00F00900531

	P2R reference
	Maker reference	00000004515

VIS T.CREUSE 5M80X15 D912/8.8

	P2R reference	64117
	Maker reference	00G04400601

00G04400601 - TUYAU DEVAPORISATION BATTERIE

	P2R reference
	Maker reference	031059

BOULON S03105900

	P2R reference	193612
	Maker reference	00H01003341

00H01003341-R-CRISTAL PILOTO GPR RACING

	P2R reference	65799
	Maker reference	181747

181747 - AMPOULE 12V 5W

	P2R reference	193613
	Maker reference	00H01000591

00H01000591 - R-TOR.FIJ.CRISTAL PIL.GPR RAC

	P2R reference	193614
	Maker reference	00H04404751

00H04404751 - R-CAPTAFAROS TRAS.PIL GPR RAC

	P2R reference	63588
	Maker reference	000000230405

NUT AUTOBLOQUANT/NYLSTOP (M4X70) OEM PIAGGIO COMMON A LA RANGE-00000023040

	P2R reference	193615
	Maker reference	00H01001131

00H01001131 - R-LAMPARA FARO DT.H3 12V-55W

	P2R reference	64136
	Maker reference	00G05701651

RELAY "PIAGGIO GENUINE PART" GILERA 50 SMT 1998>2003 -00G05701651

	P2R reference	63704
	Maker reference	000121616005

SCREW CRUCIFORME (6X16) MOUNTING AIR FILTER OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2000 > 2017/APRILIA SX, RX,-00012161600

	P2R reference	63590
	Maker reference	000000230605

NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-00000023060
