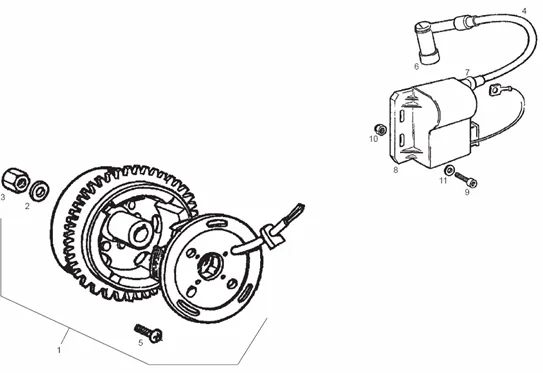

Moteur : 22 VOLANT MAGNÉTIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1118/RACING_2002_2_EDICION_22_20250925174521.png)
1 |
00H03360011 - VOLANT MAGNETIC More informationQuantity required : 1 |
||||||
|
2 |
00F03300241 - RONDELLE More informationQuantity required : 1 |
||||||
|
3 |
00H03300221 - ECROU FIXE VOLANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/6/8/img/65668.jpg)
4 |
CABLE HAUTE TENSION OEM PIAGGIO COMMON A TOUTE LA RANGE-080341 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/0/1/img/69501.jpg)
5 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250-300 -847233- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/0/8/3/img/64083.jpg)
6 |
00G03301271-MANIFOLD DE SPARK PLUG More informationQuantity required : 1 |
||||||
|
7 |
00F03300731-CAPUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/7/8/7/img/64787.jpg)
8 |
BOBINE IGNITION OEM DERBI 50 SENDA 2002 > 2017/GILERA 50 SMT 2006 > 2017/APRILIA 50 RS, RX, SX 2006 > 2017-00H03330171 More informationQuantity required : 1 |
||||||
|
9 |
00000004620 - VIS T. CREUSE 6M100X20. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/9/0/img/63590.jpg)
10 |
NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-00000023060 More informationQuantity required : 1 |
||||||
|
11 |
BOULON S03105900 |
