Vehicle Exploded View - DERBI GPR 50 RACING 2002 2ª EDICION
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

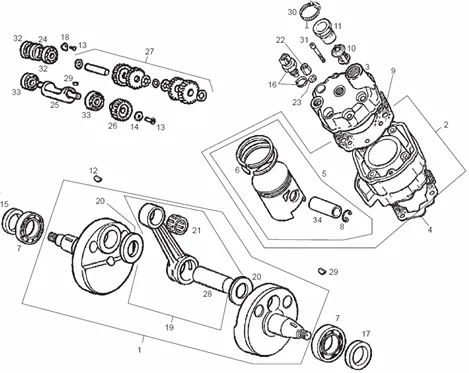

Moteur : 16 CYLINDRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1118/RACING_2002_2_EDICION_16_20250925174427.png)
1 |
00H02503141 - ENSEMBLE VILEBREQUIN-BIELLE GP More informationQuantity required : 1 |
||||||
|
2 |
00H05007123-CYLINDER ET PISTON COMPLETE More informationQuantity required : 1 |
||||||
|
3 |
00H02512013 - CULASSE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/7/0/2/img/64702.jpg)
4 |
CYLINDER BASE GASKET DE CYLINDER OEM DERBI 50 SENDA 2005 </GILERA 50 SMT, RCR 1998 > 2003-00H02500041 More informationQuantity required : 1 |
||||||
|
5 |
00H02542091 - PISTON-COMPLET (A) More informationQuantity required : 1 |
||||||
|
5 |
00H02552091 - PISTON-COMPLET (B) More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/1/2/img/69512.jpg)
5 |
PISTON C (FOR CYLINDER ALUMINIUM) OEM DERBI 50 SENDA 2011 <-8472625003 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/0/4/img/69404.jpg)
6 |
PISTON RING (FOR CYLINDER ALUMINIUM) OEM DERBI 50 SENDA 2011 <-847006 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/7/5/img/69475.jpg)
7 |
BEARING (20X47X14) DE VILEBREQUIN OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA SX, RX, RS 2006 >-8471726 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/7/8/img/69478.jpg)
8 |
847178-CIRCLIPS More informationQuantity required : 1 |
||||||
|
9 |
00H02505021 - JOINT DE CULASSE More informationQuantity required : 1 |
||||||
|
10 |
00H03800431 - THERMOSTAT More informationQuantity required : 1 |
||||||
|
11 |
00H03810421 - ECROU More informationQuantity required : 1 |
||||||
|
12 |
00H02600491 - CLAVETTE PIGNON MOT. D-6888. 7 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/6/8/img/63568.jpg)
13 |
SCREW TH (5X12) OEM PIAGGIO COMMON A LA RANGE-00000004512 More informationQuantity required : 1 |
||||||
|
14 |
00H02810801 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/3/0/img/70730.jpg)
16 |
SONDE DE TEMPERATURE WATER OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2003 >/APRILIA SX, RX 2006 >, RS 2006 >, RS4 2011 >-880325 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/4/2/img/73542.jpg)
17 |
OIL SEAL (20X35X8) VILLEBREQUIN COTE IGNITION OEM PIAGGIO GILERA 50 SMT, RCR 1998 > 2003, GPR-GU90402037 More informationQuantity required : 1 |
||||||
|
18 |
00H02500881 - BUTEE DE ROULEMENT More informationQuantity required : 1 |
||||||
|
19 |
00H05001011 - BIELLE AVEC CAGE ET AXE More informationQuantity required : 1 |
||||||
|
20 |
00002225220 - RONDELLE TETE DE BIELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/2/3/img/69523.jpg)
21 |
CAGE A AIGUILLES DE PISTON 50 A BOX OEM DERBI 50 SENDA 2000 >/GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX, RS 2006 >, RS4 2011 >-847529 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/6/9/img/63669.jpg)
22 |
NUT - FOR HANDLEBAR FASTENING "PIAGGIO GENUINE PART" GILERA GSM, H@K, ZULU, SMT, RCR 1998>2005 -00008202730- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/3/5/img/63635.jpg)
23 |
WASHER MOUNTING DE CYLINDER HEAD OEM PIAGGIO GILERA 50 SMT, RCR, GSM 1998 > 2003/DERBI 50 SENDA 2005 >-00003125280 More informationQuantity required : 1 |
||||||
|
24 |
00H05000371 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
25 |
00H05010181-SPINDLE BALANCIER More informationQuantity required : 1 |
||||||
|
26 |
00H05010191-SPROCKET More informationQuantity required : 1 |
||||||
|
27 |
00H05010201-SOUS-ENSEMBLE PIGNONS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/1/1/img/63611.jpg)
28 |
SPINDLE ARTICULATION HEAD OF BIELLE OEM PIAGGIO GILERA 50 SMT, RCR, GSM, HAK, ZULU 2005 <-00002025190 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/8/8/img/69488.jpg)
29 |
CLAVETTE DE VOLANT IGNITION ET CLUTCH OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA RS, RX, SX 2006 >, RS4 2011 >-847215 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/8/3/9/img/64839.jpg)
30 |
00H03800451 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/6/7/img/66367.jpg)
31 |
SCREW FLANGE TH (6X35) OEM PIAGGIO COMMON A LA RANGE-414838 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/4/4/img/63744.jpg)
32 |
BALANCE SHAFT BEARING "PIAGGIO GENUINE PART" GILERA 50 GPR -00058000000 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/1/0/img/69410.jpg)
33 |
BEARING (12X32X10) DE REAR WHEEL OEM PIAGGIO GILERA 50 SMT, RCR 2006/DERBI SENDA 2000 > 2010/APRILIA 50 SX, RX, RS 2006-847016 More informationQuantity required : 1 |
||||||
|
34 |
00H02501121 - AXE PISTON More informationQuantity required : 1 |
