Vehicle Exploded View - DERBI GPR 50 RACING 2002 2ª EDICION
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

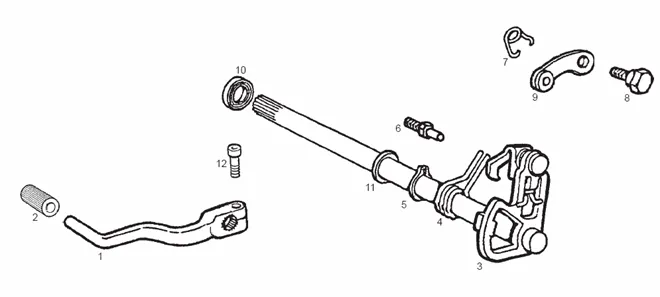

Moteur : 18 SELECTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1118/RACING_2002_2_EDICION_18_20250925174442.png)
1 |
00H02702421-PEDALE DE SELECTEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/3/7/img/63637.jpg)
2 |
00003127270 - CAOUTCHOUC DE SELECTEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/6/5/4/5/img/176545.jpg)
3 |
SPINDLE GEAR LEVER (LLIVRE NU) OEM DERBI 50 SENDA 2010 >/APRILIA 50 RS 2006 > 2010, RS4 2011 >, SX-RX 2006 >/GILERA 50 SMT, RCR 2006 >-1A004355 More informationQuantity required : 1 |
||||||
|
4 |
SPINDLE GEAR LEVER (LLIVRE NU) OEM DERBI 50 SENDA 2010 >/APRILIA 50 RS 2006 > 2010, RS4 2011 >, SX-RX 2006 >/GILERA 50 SMT, RCR 2006 >-1A004355 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/3/8/img/63738.jpg)
5 |
00047031100 - CIRCLIP POUR AXE D12 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/2/2/6/8/img/142268.jpg)
6 |
SCREW RAPPEL SPRING SHAFT OF SELECTEUR OEM DERBI 50 SENDA 2000 > 2012/GILERA 50 SMT, RCR 2006/APRILIA 50 SX, RX 2006 > 2010-B017981 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/7/5/7/1/img/187571.jpg)
7 |
SPRING SELECTEUR OEM DERBI 50 SENDA 2005 <-00H02700441 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/7/2/2/img/151722.jpg)
8 |
SCREW PLATE SPRING SPINDLE SELECTEUR DE VITESSES OEM DERBI SENDA 2000 >/GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX-1A010690 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/1/7/1/img/149171.jpg)
9 |
LEVER INTERNE SELECTION VITESSES OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA RS 2006 >, SX, RX-1A010685 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/4/9/img/69449.jpg)
10 |
OIL SEAL (12X20X5) SPINDLE CONTROL CLUTCH OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA SX, RX, RS 2006 >-847075 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/8/img/69498.jpg)
11 |
WASHER DE CALAGE SPINDLE SELECTION DE VITESSES OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA SX, RX, RS 2006 >-8472286 More informationQuantity required : 1 |
||||||
|
12 |
00000004620 - VIS T. CREUSE 6M100X20. More informationQuantity required : 1 |
