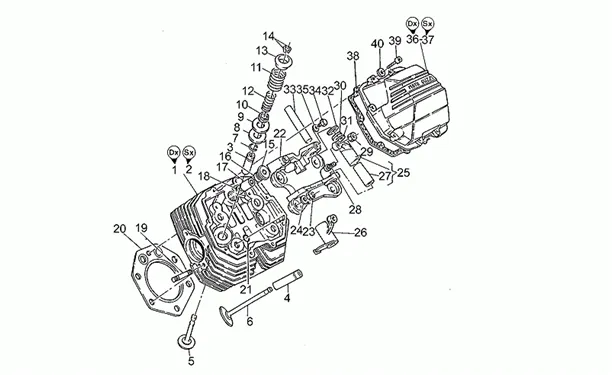

Vehicle Exploded View - MOTO-GUZZI QUOTA 1000 1992-1997

	P2R reference	130479
	Maker reference	GU30022160

GU30022160 - TETE D.GUIDES SOUPAPES GRIS

	P2R reference
	Maker reference	GU30022210

Culasse g.

	P2R reference	130481
	Maker reference	GU30022260

GU30022260-HEAD G. GIDES SOUPAPES GREY

	P2R reference	129160
	Maker reference	GU13036801

GU13036801-GUIDE-VALVE PURGE

	P2R reference	129189
	Maker reference	GU14036860

GU14036860 - GUIDE-SOUPAPE ASPIR.

	P2R reference	130494
	Maker reference	GU30036110

GU30036110-VALVE D'ECHAPPEMENT

	P2R reference	130492
	Maker reference	GU30036010

GU30036010-VALVE D'ADMISSION

	P2R reference	132152
	Maker reference	GU90353016

ANNEAU ELASTIC OEM MOTO GUZZI COMMON A LA RANGE 2012 <-GU90353016

	P2R reference	129162
	Maker reference	GU13037200

WASHER PLATE (14. 2X31X1) OEM PIAGGIO COMMON A LA RANGE-GU13037200

	P2R reference	129190
	Maker reference	GU14037300

GU14037300 - RONDELLE

	P2R reference	129161
	Maker reference	GU13037000

COUPELLE INFERIEURE VALVE OEM PIAGGIO MOTO-GUZZI 1100 CALIFORNIA, 850 LE-MANS, 850 T3, 1000 SP, STRADA-GU13037000

	P2R reference	129163
	Maker reference	GU13037400

SPRING EXTERNE DE VALVE OEM PIAGGIO MOTO-GUZZI 1100 CALIFORNIA, 850 LE-MANS, 850 T3, 1000 SP, STRADA-GU13037400

	P2R reference	129164
	Maker reference	GU13037600

SPRING INTERNE DE VALVE OEM PIAGGIO MOTO-GUZZI 1100 CALIFORNIA, 850 LE-MANS, 850 T3, 1000 SP, STRADA-GU13037600

	P2R reference	129191
	Maker reference	GU14038000

COUPELLE SUPERIEURE VALVE OEM MOTO-GUZZI 1100 CALIFORNIA, 1000 GT, QUOTA, 850 1000 LE-MANS, 1000 SP, STRADA-GU14038000

	P2R reference	129116
	Maker reference	GU12038100

GU12038100-HALF-CLAVETTE VALVE

	P2R reference	129113
	Maker reference	GU12022600

CAP OBTURATEUR USINAGE OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU12022600

	P2R reference	132224
	Maker reference	GU90706203

O-RING (20, 24X2, 62) SHAFT CLUTCH OU CAP OIL DE CYLINDER HEAD OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU90706203

	P2R reference	129157
	Maker reference	GU13021900

NUT COLONNE DE STEERING OU DE CASING ENGINE OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU13021900

	P2R reference	132753
	Maker reference	GU95129180

WASHER AJUSTEMENT (10. 5X18X0. 8) OEM MOTO GUZZI-GU95129180

	P2R reference	132817
	Maker reference	GU96508040

GU96508040-SCREW WITHOUT HEAD

	P2R reference	129184
	Maker reference	GU14022065

GU14022065-GASKET

	P2R reference	125837
	Maker reference	GU90706094

GASKET OF BRACKET CULBUTEURS OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI (ENGINE 2 SOUPAPES PAR CYLINDER)-GU90706094

	P2R reference	129187
	Maker reference	GU14034865

GU14034865-BRACKET CULBUTEUR

	P2R reference	132480
	Maker reference	GU92603010

GU92603010 - ECROU M10X1,5

	P2R reference	129180
	Maker reference	GU14018400

WASHER PLATE (10. 5X21X1) OEM MOTO GUZZI COMMON A LA RANGE-GU14018400

	P2R reference	129185
	Maker reference	GU14030201

GU14030201-CULBUTEUR D. COMPLETE

	P2R reference	129186
	Maker reference	GU14030401

GU14030401-CULBUTEUR G. COMPLETE

	P2R reference	132271
	Maker reference	GU91111511

GU91111511-BUSH 15X18X43

	P2R reference	129311
	Maker reference	GU17034050

SCREW CLUTCH OEM PIAGGIO COMMON A LA RANGE MOTO GUZZI-GU17034050

	P2R reference	129087
	Maker reference	GU10034100

NUT REGLAGE CULBUTEUR OEM MOTO-GUZZI ENGINE 2 SOUPAPES PAR CYLINDER-GU10034100

	P2R reference	132647
	Maker reference	GU94322215

SPRING DE CULBUTEUR OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU94322215

	P2R reference	132114
	Maker reference	GU90118152

GU90118152 - RONDELLE

	P2R reference	129086
	Maker reference	GU10032700

GU10032700 - RONDELLE

	P2R reference	129115
	Maker reference	GU12031800

GU12031800 - AXE CULBUTEUR

	P2R reference	132928
	Maker reference	GU98084316

SCREW M6X16 OEM PIAGGIO COMMON A LA RANGE MOTO GUZZI-GU98084316

	P2R reference	132744
	Maker reference	GU95120065

GU95120065-WASHER 6, 5X11X2

	P2R reference
	Maker reference	GU14023560

COUVERCLE

	P2R reference
	Maker reference	GU37023505

Couvercle soupapes gris

	P2R reference
	Maker reference	GU01023600

Couvercle soupapes g.

	P2R reference	124692
	Maker reference	GU14023760

GASKET COVER DE CYLINDER HEAD OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI 2 SOUPAPES PAR CYLINDER-GU14023760

	P2R reference	133137
	Maker reference	GU98622325

GU98622325-SCREW M6X25

	P2R reference	73553
	Maker reference	GU95008206

WASHER PLATE (6, 15X11X0, 8) OEM PIAGGIO COMMON A LA RANGE-GU95008206
