Vehicle Exploded View - MOTO-GUZZI QUOTA 1000 1992-1997
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

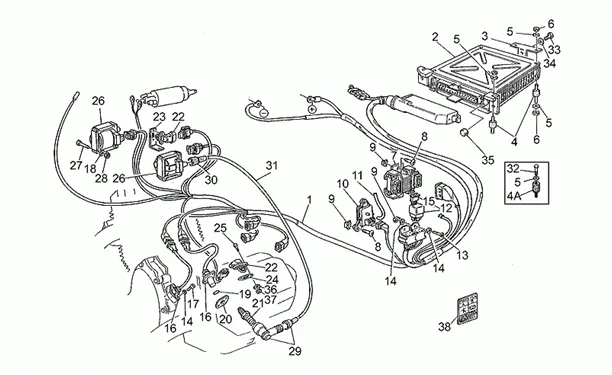

Chassis : 33.26 CENTRALE ÉLECTRONIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/511/Quota_1000_1992-1997_33.26.PNG)
1 |
GU30725830 - FAISCEAU PRINCIPAL More informationQuantity required : 1 |
||||||
|
2 |
CENTRALE ELECTRON |
||||||
|
3 |
|
||||||
|
4 |
GU93211315 - SILENT BLOCK More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/8/9/img/132589.jpg)
4 |
RUBBER MOUNT DE CENTRE ELECTRIC OEM PIAGGIO MOTO-GUZZI 1000 QUOTA, 1100 CALIFORNIA, V11-GU93221315 More informationQuantity required : 4 |
||||||
|
5 |
GU95100064-WASHER 5, 5X16X0, 8 More informationQuantity required : 6 |
||||||
|
6 |
GU92630104-NUT M4X0, 7 More informationQuantity required : 6 |
||||||
|
7 |
GU29724460-MODULES DE PUISSANCE More informationQuantity required : 1 |
||||||
|
8 |
GU98230616-SCREW More informationQuantity required : 5 |
||||||
|
9 |
GU92660601-NUT EN CAGE More informationQuantity required : 7 |
||||||
|
10 |
GU29727061-DETECTEUR PRESSION More informationQuantity required : 1 |
||||||
|
11 |
TUYAUAERATION HUILE |
||||||
|
13 |
Vis |
||||||
|
14 |
GU95004205-WASHER More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/4/4/img/66244.jpg)
15 |
BLADE FUSE STANDARD 15A OEM PIAGGIO COMMON A LA RANGE-290860 More informationQuantity required : 2 |
||||||
|
16 |
Capteur phase et tours |
||||||
|
17 |
GU98622210-SCREW M5X10 More informationQuantity required : 4 |
||||||
|
18 |
GU95004204 - RONDELLE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/7/9/img/69479.jpg)
19 |
O-RING CIRCUIT ALIMENTATION OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-847180 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/4/3/9/img/130439.jpg)
20 |
GASKET SENSOR PHASE/TOURS (0. 5MM) OEM MOTO GUZZI BELLAGIO, GRISO, NORGE-GU29722760 More informationQuantity required : 2 |
||||||
|
21 |
BOUGIE |
||||||
|
21 |
BOUGIE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/6/6/img/73466.jpg)
22 |
DETECTEUR DE TEMPERATURE AIR OEM APRILIA-MOTO-GUZZI COMMON A LA RANGE-GU30729330 More informationQuantity required : 2 |
||||||
|
23 |
GU30728230-BRACKET DETECTEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/5/9/img/73459.jpg)
24 |
GASKET DETECTEUR TEMPERATURE AIR OEM APRILIA/MOTO GUZZI COMMON A LA RANGE-GU30027931 More informationQuantity required : 1 |
||||||
|
25 |
GU98610110-SCREW More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/9/3/3/img/130933.jpg)
26 |
BOBINE IGNITION OEM PIAGGIO MOTO-GUZZI 1100 CALIFORNIA 1994 > 2004, 1200 GRISO 2007 > 2017, 750 V7 2008 > 2012, 1200 NORGE 2010 >, 1200 SPORT 2008 > 2013, 1100 V11 1999 > 2005-GU30716500 More informationQuantity required : 2 |
||||||
|
27 |
|
||||||
|
28 |
GU92630104-NUT M4X0, 7 More informationQuantity required : 4 |
||||||
|
29 |
AP8212219 - PIPE BOUGIE BLINDEE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/2/8/1/img/129281.jpg)
30 |
CAPUCHON/RUBBER HT OEM MOTO GUZZI COMMON A LA RANGE-GU14717600 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/3/7/7/img/129377.jpg)
31 |
HIGH TENSION CABLE "PIAGGIO GENUINE PART" COMMON TO ALL 2 VALVES MOTO-GUZZI -GU17718350 More informationQuantity required : 2 |
||||||
|
32 |
VIS |
||||||
|
33 |
VIS |
||||||
|
34 |
GU29217960-WASHER 5, 9X3X0, 8 More informationQuantity required : 1 |
||||||
|
35 |
GU29729762-CAP More informationQuantity required : 1 |
||||||
|
36 |
GU95120032-WASHER More informationQuantity required : 4 |
||||||
|
37 |
GU92601003 - ECROU More informationQuantity required : 2 |
||||||
|
38 |
DECALCOMANIE D |
