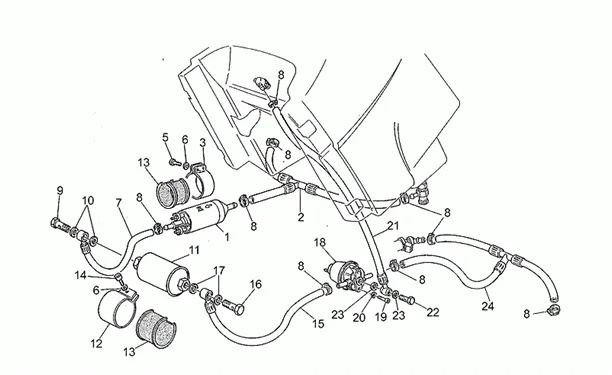

Chassis : 33.23 ALIMENTATION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/511/Quota_1000_1992-1997_33.23.PNG)
1 |
GU29107261 - POMPE ESSENCE More informationQuantity required : 1 |
||||||
|
2 |
GU30106525 - TUYAU More informationQuantity required : 1 |
||||||
|
3 |
GU29107360-CLAMP More informationQuantity required : 1 |
||||||
|
5 |
GU98682312-SCREW TCEI M6X12 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/2/4/img/131924.jpg)
6 |
WASHER SPRING (6. 7X11. 8X0. 4) OEM PIAGGIO COMMON A LA RANGE-GU61013800 More informationQuantity required : 3 |
||||||
|
7 |
GU30106130-FUEL HOSE More informationQuantity required : 1 |
||||||
|
8 |
GU93305017-CLAMP More informationQuantity required : 8 |
||||||
|
9 |
|
||||||
|
10 |
JOINT |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/3/5/1/img/130351.jpg)
11 |
FUEL FILTER MOTO OEM PIAGGIO MOTO-GUZZI 1100 CALIFORNIA 1994 > 2002, 1000 QUOTA 1992 > 1997 (M14X12)-GU29106061 More informationQuantity required : 1 |
||||||
|
12 |
GU29113860-CLAMP More informationQuantity required : 1 |
||||||
|
13 |
GU29105860-PROTECTOR CAOUTCH. More informationQuantity required : 2 |
||||||
|
14 |
GU98612320-SCREW More informationQuantity required : 1 |
||||||
|
15 |
GU30108230 - TUYAU ESSENCE More informationQuantity required : 1 |
||||||
|
16 |
GU29109161-SCREW CREUSE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/5/1/8/5/img/125185.jpg)
17 |
GASKET/GARNITURE 12, 25 OEM PIAGGIO COMMON A LA RANGE MOTO GUZZI-GU12006400 More informationQuantity required : 2 |
||||||
|
18 |
Régul.pression ess. |
||||||
|
19 |
Vis |
||||||
|
20 |
GU95100119 - RONDELLE More informationQuantity required : 2 |
||||||
|
21 |
|
||||||
|
22 |
VIS CREUSE |
||||||
|
23 |
|
||||||
|
24 |
GU30108030-FUEL HOSE More informationQuantity required : 1 |
