Vehicle Exploded View - MOTO-GUZZI QUOTA 1000 1992-1997
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

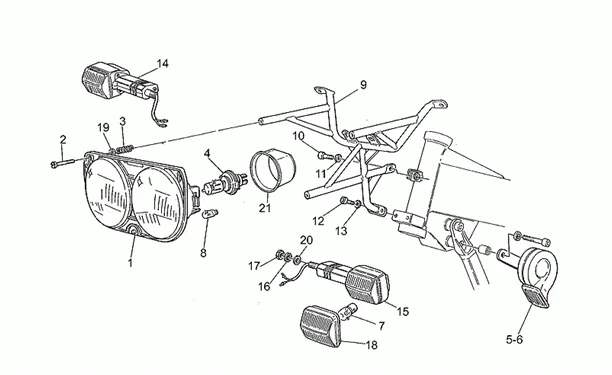

Chassis : 33.06 PHARE AVANT-KLAXON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/511/Quota_1000_1992-1997_33.06.PNG)
1 |
GU30740530 - PROJECTEUR More informationQuantity required : 1 |
||||||
|
1 |
PHARE AVANT |
||||||
|
2 |
VIS |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/4/4/img/132644.jpg)
3 |
SPRING RETOUR LEVER DEMARRAGE OEM PIAGGIO COMMON A LA RANGE MOTO GUZZI-GU94321105 More informationQuantity required : 3 |
||||||
|
4 |
|
||||||
|
5 |
GU28743760 - AVERTISSEUR TON AIGU More informationQuantity required : 1 |
||||||
|
6 |
GU28743761 - AVERTISSEUR TON GRAVE More informationQuantity required : 1 |
||||||
|
7 |
GU93450127-LAMPE (OU AMPOULE) 12V-10W More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/6/9/img/66269.jpg)
8 |
AMPOULE/LAMPE 12V 3W W2, 1X9, 5D OEM PIAGGIO COMMON A LA RANGE-294131 More informationQuantity required : 2 |
||||||
|
9 |
|
||||||
|
10 |
GU98622416 - VIS More informationQuantity required : 1 |
||||||
|
11 |
GU95000208-WASHER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/7/9/img/133179.jpg)
12 |
SCREW BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-GU98682316 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/3/img/73553.jpg)
13 |
WASHER PLATE (6, 15X11X0, 8) OEM PIAGGIO COMMON A LA RANGE-GU95008206 More informationQuantity required : 2 |
||||||
|
14 |
GU31750630 - CLIGNOTANT More informationQuantity required : 1 |
||||||
|
15 |
GU31750630 - CLIGNOTANT More informationQuantity required : 1 |
||||||
|
16 |
GU95022112-WASHER EVENT. More informationQuantity required : 2 |
||||||
|
17 |
GU92602512 - ECROU BAS M12X1,25 More informationQuantity required : 2 |
||||||
|
18 |
GU31753730-CABOCHON More informationQuantity required : 2 |
||||||
|
19 |
GU95000205-WASHER More informationQuantity required : 3 |
||||||
|
20 |
GU95000213-WASHER More informationQuantity required : 2 |
||||||
|
21 |
CAPUCHON |
