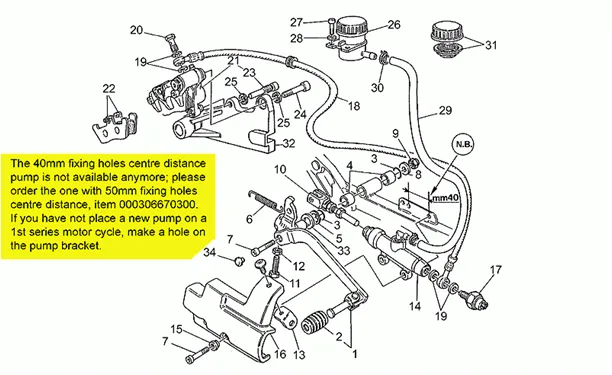

Chassis : 33.14 POMPE FREIN ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/511/Quota_1000_1992-1997_33.14.PNG)
1 |
PEDALE FREINS |
||||||
|
1 |
GU30677032 - LEVIER DE FREIN AR More informationQuantity required : 1 |
||||||
|
2 |
GU30251025 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/7/9/img/69479.jpg)
3 |
O-RING CIRCUIT ALIMENTATION OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-847180 More informationQuantity required : 2 |
||||||
|
4 |
GU30252930 - ENTRETOISE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/5/6/img/132756.jpg)
5 |
WASHER ELASTIC OEM MOTO GUZZI COMMON A LA RANGE-GU95129260 More informationQuantity required : 1 |
||||||
|
6 |
GU17667651-SPRING * More informationQuantity required : 1 |
||||||
|
7 |
GU98610330 - VIS More informationQuantity required : 3 |
||||||
|
8 |
GU95100142 - RONDELLE More informationQuantity required : 1 |
||||||
|
9 |
GU92630206-NUT M6X1 More informationQuantity required : 1 |
||||||
|
10 |
|
||||||
|
10 |
GU30675031 - BRIDE More informationQuantity required : 1 |
||||||
|
11 |
GU98074430 - VIS More informationQuantity required : 1 |
||||||
|
12 |
GU92601208-NUT More informationQuantity required : 1 |
||||||
|
13 |
PLAQUETTE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/6/4/img/73464.jpg)
14 |
BRAKE MASTER CYLINDER REAR OEM PIAGGIO MOTO-GUZZI PEGASO, BREVA, NTX, QUOTA-GU30667030 More informationQuantity required : 1 |
||||||
|
15 |
|
||||||
|
16 |
COUVERCLE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/2/7/1/img/129271.jpg)
17 |
REAR STOP SWITCH "PIAGGIO GENUINE PART" MOTO-GUZZI DAYTONA, LE-MANS, QUOTA, V35, V50, V65, V75, V10, V11 -GU14657050- More informationQuantity required : 1 |
||||||
|
18 |
GU30657130-HOSE BRAKE REAR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/9/4/9/img/129949.jpg)
19 |
WASHER HOSE BRAKE (10X1. 5X1) OEM MOTO GUZZI COMMON A LA RANGE-GU25656100 More informationQuantity required : 4 |
||||||
|
20 |
GU95990028 - VIS TUYAU HUILE * More informationQuantity required : 1 |
||||||
|
21 |
GU30653030 - ETRIER AR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/8/9/8/img/130898.jpg)
22 |
PLATE FREINS REAR OEM MOTO-GUZZI 1000 QUOTA 1992 > 1997-GU30654630 More informationQuantity required : 1 |
||||||
|
23 |
GU30652630 - VIS More informationQuantity required : 1 |
||||||
|
24 |
Vis |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/5/3/img/132753.jpg)
25 |
WASHER AJUSTEMENT (10. 5X18X0. 8) OEM MOTO GUZZI-GU95129180 More informationQuantity required : 2 |
||||||
|
26 |
GU65663500 - RESERV.HUILE FREINS More informationQuantity required : 1 |
||||||
|
27 |
GU98622314 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/3/img/73553.jpg)
28 |
WASHER PLATE (6, 15X11X0, 8) OEM PIAGGIO COMMON A LA RANGE-GU95008206 More informationQuantity required : 2 |
||||||
|
29 |
GU00823950050-T GOMMA 5X9 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/7/1/8/3/img/157183.jpg)
30 |
GU19157800 - COLLIER More informationQuantity required : 2 |
||||||
|
31 |
GU17661052-CAP TANK More informationQuantity required : 1 |
||||||
|
32 |
SUPPORT |
||||||
|
33 |
GU95100601 - RONDELLE More informationQuantity required : 1 |
||||||
|
34 |
GU12433000 - TAMPON More informationQuantity required : 1 |
