Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTANE STANDARD 1000 Porter Multitech E6 E6-C 2015-2020 PIAGGIO VU

Gpl : 08.04 RÉSERVOIR CARBURANT GPL (CHASSIS)

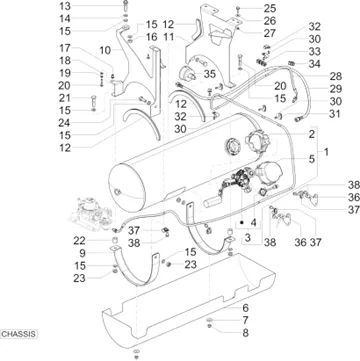

Réservoir carburant GPL (Chassis)
Search
B005775 - PROTECTION

2
P2R reference P2R reference 142910
Maker reference Maker reference B005775

B005775 PROTECTOR

More information

Quantity required : 1

B005784 - JAUGE GAS

3
P2R reference P2R reference 122244
Maker reference Maker reference B005784

B005784 JAUGE GAS

More information

Quantity required : 1

661140 - VERRE

4
P2R reference P2R reference 119764
Maker reference Maker reference 661140

661140 VERRE

More information

Quantity required : 1

B005774 - COUVERCLE

5
P2R reference P2R reference 142943
Maker reference Maker reference B005774

B005774 COVER

More information

Quantity required : 1

B005719 - PROTECTION

6
P2R reference P2R reference 119505
Maker reference Maker reference B005719

B005719 PROTECTOR

More information

Quantity required : 1

WASHER PLATE (8X24X2) OEM PIAGGIO COMMON A LA RANGE-709077

7
P2R reference P2R reference 68492
Maker reference Maker reference 709077

WASHER PLATE (8X24X2) OEM PIAGGIO COMMON A LA RANGE-709077

More information

Quantity required : 2

709052 - ECROU

8
P2R reference P2R reference 110629
Maker reference Maker reference 709052

709052 NUT

More information

Quantity required : 2

B005721 - SUPPORT RESERVOIRE

9
P2R reference P2R reference 116730
Maker reference Maker reference B005721

B005721 BRACKET RESERVOIRE

More information

Quantity required : 2

B007982 - GAINE

12
P2R reference P2R reference 158441
Maker reference Maker reference B007982

B007982 GAINE

More information

Quantity required : 3

9004105165000 - BOULON

13
P2R reference P2R reference 158442
Maker reference Maker reference 9004105165000

9004105165000 - BOULON

More information

Quantity required : 1

WASHER GROWER (10. 6X17. 6X5) OEM PIAGGIO COMMON A LA RANGE-016410

14
P2R reference P2R reference 65419
Maker reference Maker reference 0164105

WASHER GROWER (10. 6X17. 6X5) OEM PIAGGIO COMMON A LA RANGE-016410

More information

Quantity required : 1

WASHER PLATE (10, 4X18X2) OEM PIAGGIO COMMON A LA RANGE-016626

15
P2R reference P2R reference 65423
Maker reference Maker reference 0166265

WASHER PLATE (10, 4X18X2) OEM PIAGGIO COMMON A LA RANGE-016626

More information

Quantity required : 10

NUT (10X1. 25) OEM PIAGGIO COMMON A LA RANGE-021110

16
P2R reference P2R reference 65599
Maker reference Maker reference 0211105

NUT (10X1. 25) OEM PIAGGIO COMMON A LA RANGE-021110

More information

Quantity required : 1

0211102 - COMMUTATEUR

16
P2R reference P2R reference 73962
Maker reference Maker reference 02111025

0211102 - COMMUTATEUR

More information

Quantity required : 1

660710 - RIVET A DECLIC

17
P2R reference P2R reference 110104
Maker reference Maker reference 660710

660710 RIVET A DECLIC

More information

Quantity required : 1

WASHER PLATE (6. 4X13X1. 5) OEM PIAGGIO COMMON A LA RANGE-013777

18
P2R reference P2R reference 65362
Maker reference Maker reference 0137775

WASHER PLATE (6. 4X13X1. 5) OEM PIAGGIO COMMON A LA RANGE-013777

More information

Quantity required : 1

WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406

19
P2R reference P2R reference 65416
Maker reference Maker reference 0164065

WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406

More information

Quantity required : 1

030052 - VIS S03005200

20
P2R reference P2R reference 65607
Maker reference Maker reference 0300525

030052-SCREW S03005200

More information

Quantity required : 1

21
P2R reference P2R reference
Maker reference Maker reference 300985

660652 - ENTRETOISE

22
P2R reference P2R reference 112990
Maker reference Maker reference 660652

660652 SPACER

More information

Quantity required : 2

NUT AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-002440

23
P2R reference P2R reference 63765
Maker reference Maker reference 0024405

NUT AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-002440

More information

Quantity required : 4

SCREW TH (10X30) OEM PIAGGIOCOMMUN A LA RANGE-031157

24
P2R reference P2R reference 65651
Maker reference Maker reference 0311575

SCREW TH (10X30) OEM PIAGGIOCOMMUN A LA RANGE-031157

More information

Quantity required : 1

9165160625000 - BOULON

25
P2R reference P2R reference 110043
Maker reference Maker reference 9165160625000

9165160625000 BOLT

More information

Quantity required : 1

709056 - RONDELLE

26
P2R reference P2R reference 110919
Maker reference Maker reference 709056

709056 WASHER

More information

Quantity required : 1

NUT (M6) OEM PIAGGIO COMMON A LA RANGE-020106

27
P2R reference P2R reference 65461
Maker reference Maker reference 0201065

NUT (M6) OEM PIAGGIO COMMON A LA RANGE-020106

More information

Quantity required : 1

661065 - RIVET

30
P2R reference P2R reference 110744
Maker reference Maker reference 661065

661065 - RIVET

More information

Quantity required : 7

660684 - COLLIER

31
P2R reference P2R reference 111791
Maker reference Maker reference 660684

660684 CLAMP

More information

Quantity required : 3

CM017821 - RESSORT

33
P2R reference P2R reference 158443
Maker reference Maker reference CM017821

CM017821 SPRING

More information

Quantity required : 1

CM017810 - RESSORT POUR TUBES

34
P2R reference P2R reference 158444
Maker reference Maker reference CM017810

CM017810 - RESSORT POUR TUBES

More information

Quantity required : 1

B005785 - PRISE

35
P2R reference P2R reference 118418
Maker reference Maker reference B005785

B005785 PRISE

More information

Quantity required : 1

D9165260616 - BOULON

38
P2R reference P2R reference 110776
Maker reference Maker reference D9165260616

D9165260616 - BOULON

More information

Quantity required : 6
