Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTANE STANDARD 1000 Porter Multitech E6 E6-C 2015-2020 PIAGGIO VU

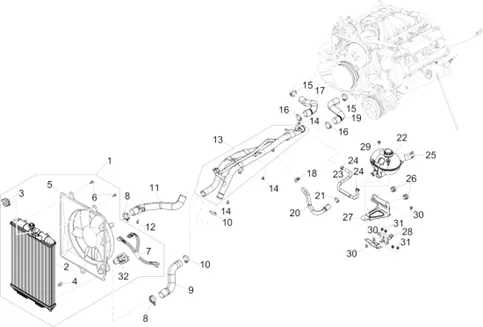

Châssis - parties plastiques - carrosseries : 02.43 INSTALATION DE REFOIDISSEMENT
Instalation de refoidissement
Search
COOLING RADIATOR "PIAGGIO GENUINE PART" PORTER "petrol" 2015>/DIESEL 2010> -B026177-

1
P2R reference P2R reference 123488
Maker reference Maker reference B026177

RADIATOR DE COOLING OEM PIAGGIO PORTER FUEL 2015 >/DIESEL 2010 >-B026177

More information

Quantity required : 1

RADIATOR COOLING OEM PIAGGIO PORTER 2020 <-B026114

2
P2R reference P2R reference 126109
Maker reference Maker reference B026114

RADIATOR COOLING OEM PIAGGIO PORTER 2020 <-B026114

More information

Quantity required : 1

CAP DE RADIATOR OEM PIAGGIO PORTER E6 2015, PORTER DIESEL 2010 > 2015-660619

3
P2R reference P2R reference 117254
Maker reference Maker reference 660619

CAP DE RADIATOR OEM PIAGGIO PORTER E6 2015, PORTER DIESEL 2010 > 2015-660619

More information

Quantity required : 1

CAP DE RADIATOR LOWER OEM PIAGGIO PORTER 2020 <-1618587Z02000

4
P2R reference P2R reference 117060
Maker reference Maker reference 1618587Z02000

CAP DE RADIATOR LOWER OEM PIAGGIO PORTER 2020 <-1618587Z02000

More information

Quantity required : 1

263695 - VIS

6
P2R reference P2R reference 158414
Maker reference Maker reference 263695

263695 - VIS

More information

Quantity required : 3

B023215 - FAISCEAU CABLES

7
P2R reference P2R reference 118960
Maker reference Maker reference B023215

B023215 WIRING HARNESS

More information

Quantity required : 1

CLAMP DE HOSE COOLING OEM PIAGGIO PORTER 2009 > 2020-D9004467449

8
P2R reference P2R reference 112975
Maker reference Maker reference D9004467449

CLAMP DE HOSE COOLING OEM PIAGGIO PORTER 2009 > 2020-D9004467449

More information

Quantity required : 2

HOSE CLAMP WITH SCREW WITHOUT FIN (30-45MM) OEM PIAGGIO COMMON A LA RANGE-709677

10
P2R reference P2R reference 68498
Maker reference Maker reference 709677

HOSE CLAMP WITH SCREW WITHOUT FIN (30-45MM) OEM PIAGGIO COMMON A LA RANGE-709677

More information

Quantity required : 6

D9165260616 - BOULON

12
P2R reference P2R reference 110776
Maker reference Maker reference D9165260616

D9165260616 - BOULON

More information

Quantity required : 1

SCREW TH (6X12) WITH WASHER OEM PIAGGIO PORTER COMMON A LA RANGE-CM287312

14
P2R reference P2R reference 176835
Maker reference Maker reference CM287312

SCREW TH (6X12) WITH WASHER OEM PIAGGIO PORTER COMMON A LA RANGE-CM287312

More information

Quantity required : 3

HOSE CLAMP WITH SCREW WITHOUT FIN (30-45MM) OEM PIAGGIO COMMON A LA RANGE-709677

15
P2R reference P2R reference 68498
Maker reference Maker reference 709677

HOSE CLAMP WITH SCREW WITHOUT FIN (30-45MM) OEM PIAGGIO COMMON A LA RANGE-709677

More information

Quantity required : 6

CLAMP HOSE 25-40 OEM PIAGGIO COMMON A LA RANGE-645663

16
P2R reference P2R reference 111581
Maker reference Maker reference 645663

CLAMP HOSE 25-40 OEM PIAGGIO COMMON A LA RANGE-645663

More information

Quantity required : 2

9004467361000 - COLLIER

18
P2R reference P2R reference 110882
Maker reference Maker reference 9004467361000

9004467361000 CLAMP

More information

Quantity required : 1

CLAMP HOSE COOLING (28. 6 MM) OEM PIAGGIO COMMON A LA RANGE-CM001915

21
P2R reference P2R reference 72876
Maker reference Maker reference CM001915

CLAMP HOSE COOLING (28. 6 MM) OEM PIAGGIO COMMON A LA RANGE-CM001915

More information

Quantity required : 1

B023330 - RESERV0IR ASSY

22
P2R reference P2R reference 118713
Maker reference Maker reference B023330

TANK/VASE EXPANSION OEM PIAGGIO PORTER 20/05/2011 > 2020-1R000587

More information

Quantity required : 1

B023349 - TUYAU

23
P2R reference P2R reference 114944
Maker reference Maker reference B023349

B023349 HOSE

More information

Quantity required : 1

CLAMP HOSE COOLING OEM PIAGGIO PORTER-B005051

24
P2R reference P2R reference 113602
Maker reference Maker reference B005051

CLAMP HOSE COOLING OEM PIAGGIO PORTER-B005051

More information

Quantity required : 1

B023311 - MONOGRAMME

25
P2R reference P2R reference 111759
Maker reference Maker reference B023311

B023311 BADGE

More information

Quantity required : 1

D9004480596 - TAMPON

26
P2R reference P2R reference 112878
Maker reference Maker reference D9004480596

D9004480596 BUFFER

More information

Quantity required : 2

B023357 - EQUERRE

28
P2R reference P2R reference 116443
Maker reference Maker reference B023357

B023357 BRACKET

More information

Quantity required : 1

SCREW A SIX PANS WITH DOUBLE WASHER M6X16-CM288916

29
P2R reference P2R reference 151147
Maker reference Maker reference CM288916

SCREW A SIX PANS WITH DOUBLE WASHER M6X16-CM288916

More information

Quantity required : 4

D9165260616 - BOULON

30
P2R reference P2R reference 110776
Maker reference Maker reference D9165260616

D9165260616 - BOULON

More information

Quantity required : 3

SCREW TH (6X12) WITH WASHER OEM PIAGGIO PORTER COMMON A LA RANGE-CM287312

31
P2R reference P2R reference 176835
Maker reference Maker reference CM287312

SCREW TH (6X12) WITH WASHER OEM PIAGGIO PORTER COMMON A LA RANGE-CM287312

More information

Quantity required : 4

RESISTANCE VENTILATEUR OEM PIAGGIO PORTER-B023214

32
P2R reference P2R reference 118074
Maker reference Maker reference B023214

RESISTANCE VENTILATEUR OEM PIAGGIO PORTER-B023214

More information

Quantity required : 1
