Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTANE STANDARD 1000 Porter Multitech E6 E6-C 2015-2020
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

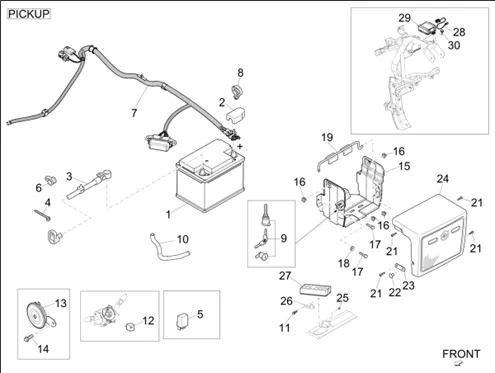

Circuit électrique : 06.04 RELAIS - BATTERIE - AVERTISSEUR SONORE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1212/Porter_Multitech_E6_E6-C_2015-2020_06.04.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/3/1/8/1/img/123181.jpg)
1 |
BATTERY 12V 55AH OEM PIAGGIO PORTER 2009 > 2020-600699M More informationQuantity required : 1 |
||||||
2 |
580188 - COUVERTURE More informationQuantity required : 1 |
||||||
|
3 |
8212387Z01000 FAISC. CABLES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/7/img/66017.jpg)
4 |
HOSE CLAMP NYLON TYPE RILSAN 4, 8X270MM OEM PIAGGIO COMMON A LA RANGE-257134 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/1/6/7/img/117167.jpg)
5 |
RELAIS DE VENTILATEUR ENGINE (12V30A) OEM PIAGGIO PORTER-B007353 More informationQuantity required : 1 |
||||||
|
6 |
644286 CLAMP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/2/6/4/5/img/122645.JPG)
7 |
1D000942 CABLE BATTERY + More informationQuantity required : 1 |
||||||
|
7 |
1D000943 CABLE BATTERY + More informationQuantity required : 1 |
||||||
|
8 |
D9004464482 CLAMP More informationQuantity required : 1 |
||||||
|
9 |
613839 CYLINDER More informationQuantity required : 1 |
||||||
|
10 |
645581 HOSE CARBU More informationQuantity required : 1 |
||||||
|
11 |
CM287320 SCREW More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/8/0/1/6/img/118016.jpg)
12 |
RELAIS DE INDICATOR OEM PIAGGIO PORTER 2010 > 2020-493997 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/2/4/2/img/115242.jpg)
13 |
AVERTISSEUR OEM PIAGGIO PORTER, CARGO-660522 More informationQuantity required : 1 |
||||||
|
14 |
D9161140814 BOLT More informationQuantity required : 1 |
||||||
|
15 |
B0259505 DOOR BATT. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/4/6/0/img/111460.jpg)
16 |
CLIPS OEM PIAGGIO PORTER 2020 <-004189001000 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/1/9/8/img/151198.jpg)
17 |
BOLT TH (6X14) WITH WASHER OEM PIAGGIO COMMON A LA RANGE-CM287314 More informationQuantity required : 3 |
||||||
|
18 |
9004208030000 WASHER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/4/8/0/6/img/134806.jpg)
19 |
CROCHET MOUNTING DE BATTERY OEM PIAGGIO PORTER MULTITECH E6 2015 > 2020-B0259535 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/0/9/5/img/112095.jpg)
21 |
SCREW PARKER (5X22) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-9356055012000 More informationQuantity required : 4 |
||||||
|
22 |
263750 CLAMP More informationQuantity required : 1 |
||||||
|
23 |
263740 CALIPER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/6/2/4/img/117624.jpg)
24 |
COVER DE BATTERY OEM PIAGGIO PORTER 2009 > 2020-262836 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/8/3/1/img/109831.jpg)
25 |
NUT AUTOBLOQUANT/NYLSTOP (M4) OEM PIAGGIO COMMON A LA RANGE-620356 More informationQuantity required : 2 |
||||||
|
26 |
B004583 BRACKET INTERRUPTEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/8/8/7/4/img/118874.jpg)
27 |
BOX A FUSIBLE OEM PIAGGIO PORTER 2010 > 2020-B006173 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/4/6/5/6/img/134656.jpg)
28 |
CABLE ANTENNE ANTI DEMARRAGE OEM PIAGGIO PORTER MULTITECH 2015 > 2020-1D001294 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/5/0/0/4/img/135004.jpg)
29 |
DECODEUR OEM PIAGGIO PORTER MULTITECH E6 2015 > 2020-1D001190 More informationQuantity required : 1 |
||||||
|
30 |
D9165260616 - BOULON More informationQuantity required : 1 |
