Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTANE STANDARD 1000 Porter Multitech E6 E6-C 2015-2020
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

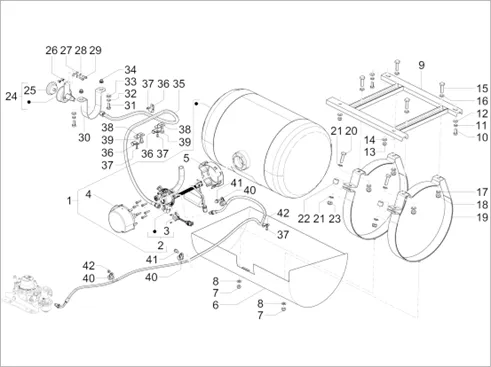

Gpl : 08.02 RÉSERVOIR CARBURANT GPL (VAN)
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1212/Porter_Multitech_E6_E6-C_2015-2020_08.02.png)
1 |
1E002378 RESERVOIRE GAS More informationQuantity required : 1 |
||||||
|
2 |
B005797 - JAUGE GAS More informationQuantity required : 1 |
||||||
|
3 |
661140 VERRE More informationQuantity required : 1 |
||||||
|
4 |
B005774 COVER More informationQuantity required : 1 |
||||||
|
5 |
B005775 PROTECTOR More informationQuantity required : 1 |
||||||
|
6 |
660655 PROTECTOR More informationQuantity required : 1 |
||||||
|
7 |
709052 NUT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
8 |
WASHER PLATE (8, 4X15X1, 5) OEM PIAGGIO COMMON A LA RANGE-003058 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/6/img/65646.jpg)
10 |
SCREW TH (8X22) OEM PIAGGIO COMMON A LA RANGE-031119 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/8/img/65418.jpg)
11 |
WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/3/img/63773.jpg)
12 |
WASHER PLATE (8. 4X18X2) OEM PIAGGIO COMMON A LA RANGE-003038 More informationQuantity required : 2 |
||||||
|
13 |
709052 NUT More informationQuantity required : 2 |
||||||
|
14 |
WASHER PLATE (8. 4X18X2) OEM PIAGGIO COMMON A LA RANGE-003038 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/5/2/img/65652.jpg)
15 |
SCREW TH (10X35) OEM PIAGGIO COMMON A LA RANGE-031159 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/2/3/img/65423.jpg)
16 |
WASHER PLATE (10, 4X18X2) OEM PIAGGIO COMMON A LA RANGE-016626 More informationQuantity required : 4 |
||||||
|
17 |
WASHER PLATE (10, 4X18X2) OEM PIAGGIO COMMON A LA RANGE-016626 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/5/img/63765.jpg)
18 |
NUT AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-002440 More informationQuantity required : 4 |
||||||
|
19 |
660665 BRACKET More informationQuantity required : 2 |
||||||
|
20 |
SCREW TH (10X35) OEM PIAGGIO COMMON A LA RANGE-031159 More informationQuantity required : 2 |
||||||
|
21 |
WASHER PLATE (10, 4X18X2) OEM PIAGGIO COMMON A LA RANGE-016626 More informationQuantity required : 4 |
||||||
|
22 |
B004105 SPACER More informationQuantity required : 2 |
||||||
|
23 |
NUT AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-002440 More informationQuantity required : 2 |
||||||
|
24 |
B005798 PRISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/6/5/8/img/113658.jpg)
25 |
CAP DE TANK OEM PIAGGIO PORTER GPL/GNV-659706 More informationQuantity required : 1 |
||||||
|
26 |
660727 RIVET A DECLIC More informationQuantity required : 2 |
||||||
|
27 |
244585-SPACER More informationQuantity required : 2 |
||||||
|
28 |
003055-WASHER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/6/6/1/img/178661.JPG)
29 |
SCREW BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-1C004839 More informationQuantity required : 2 |
||||||
|
30 |
660689 BRACKET More informationQuantity required : 1 |
||||||
|
31 |
SCREW TH (8X22) OEM PIAGGIO COMMON A LA RANGE-031119 More informationQuantity required : 2 |
||||||
|
32 |
WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408 More informationQuantity required : 2 |
||||||
|
33 |
WASHER PLATE (10, 4X18X2) OEM PIAGGIO COMMON A LA RANGE-016626 More informationQuantity required : 2 |
||||||
|
34 |
264369 - RIVET A DECLIC More informationQuantity required : 2 |
||||||
|
37 |
661065 - RIVET More informationQuantity required : 4 |
||||||
|
39 |
D9161160816 BOLT More informationQuantity required : 2 |
||||||
|
41 |
D9165260616 - BOULON More informationQuantity required : 2 |
||||||
|
42 |
709116-NUT More informationQuantity required : 1 |
