Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTANE STANDARD 1000 Porter Multitech E6 E6-C 2015-2020
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

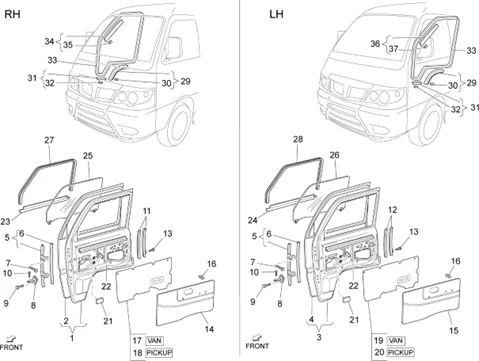

Châssis - parties plastiques - carrosseries : 02.07 PORTIÈRES AVANT - VITRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1212/Porter_Multitech_E6_E6-C_2015-2020_02.07.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/2/5/6/5/img/122565.jpg)
1 |
DOOR FRONT RIGHT OEM PIAGGIO PORTER 2020 <-6700187Z01000 More informationQuantity required : 1 |
||||||
2 |
6701187Z01000 PANEL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/2/4/2/9/img/122429.jpg)
3 |
DOOR FRONT LEFT OEM PIAGGIO PORTER 2020 <-6700287Z01000 More informationQuantity required : 1 |
||||||
|
4 |
6701287Z01000 PANEL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/3/5/9/img/116359.jpg)
5 |
GUIDE VITRE INNER PORTIERE FRONT OEM PIAGGIO PORTER-D6740187Z01 More informationQuantity required : 2 |
||||||
|
6 |
GUIDE VITRE INNER PORTIERE FRONT OEM PIAGGIO PORTER-D6740187Z01 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/8/6/8/img/109868.jpg)
7 |
SCREW TH (6X10) WITH WASHER OEM PIAGGIO COMMON A LA RANGE-9162140610000 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/0/6/2/img/116062.jpg)
8 |
TIRAN DE DOOR FRONT OEM PIAGGIO PORTER, CARGO 2020 <-6861087Z01000 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/8/6/4/img/109864.jpg)
9 |
SCREW TH 6X14) WITH WASHER OEM PIAGGIO COMMON A LA RANGE-9162140614000 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/9/7/7/img/110977.jpg)
10 |
SPINDLE PIVOT DE PORTIERE OEM PIAGGIO PORTER 2020 <-D6861787Z01 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/9/1/6/img/115916.jpg)
11 |
GUIDE VITRE DE PORTIERE RIGHT OEM PIAGGIO PORTER 2020 <-6740387Z010006 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/1/2/4/img/116124.jpg)
12 |
GUIDE VITRE DE PORTIERE LEFT OEM PIAGGIO PORTER 2020 <-D6740487Z01 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/2/6/3/img/151263.jpg)
13 |
SCREW TH (6X15) WITH WASHER OEM PIAGGIO COMMON A LA RANGE-CM288112 More informationQuantity required : 2 |
||||||
|
14 |
615917 - PANNEAU PORTE More informationQuantity required : 1 |
||||||
|
14 |
1E003366-PANEL D More informationQuantity required : 1 |
||||||
|
15 |
615918 PANEL DOOR More informationQuantity required : 1 |
||||||
|
15 |
PANEL INNER DOOR FRONT LEFT OEM PIAGGIO PORTER 2020-1E003367 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/7/6/5/0/img/207650.jpg)
16 |
AGRAFE DE PANEL DE DOOR OEM PIAGGIO PORTER-6777187Z010006 More informationQuantity required : 20 |
||||||
|
17 |
6783187Z02000 PROTECTOR ISOLANTE DOOR FRONT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/4/5/6/img/115456.jpg)
18 |
PROTECTOR PLASTIQUE INTERIEURE DOOR FRONT RIGHT OEM PIAGGIO PORTER 2020 <-6783187Z01000 More informationQuantity required : 1 |
||||||
|
19 |
6783287Z02000 PROTECTOR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/9/6/3/img/114963.jpg)
20 |
PROTECTOR PLASTIQUE INTERIEURE DOOR FRONT LEFT OEM PIAGGIO PORTER 2020 <-6783287Z01000 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/5/1/5/img/110515.jpg)
21 |
BUFFER GARNITURE PORTIERE OEM PIAGGIO PORTER 2020 <-6781187Z01000 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/4/3/9/img/115439.jpg)
22 |
GASKET/LECHE VITRE INNER OEM PIAGGIO PORTER 2020 <-2608506 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/4/0/8/img/115408.jpg)
23 |
GASKET/LECHE VITRE EXTERIEUR RIGHT OEM PIAGGIO PORTER 1992 > 2020-2608516 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/4/8/6/img/115486.jpg)
24 |
GASKET/LECHE VITRE EXTERIEUR LEFT OEM PIAGGIO PORTER 1992 > 2020-2608586 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/1/2/0/5/img/121205.jpg)
25 |
VITRE DE DOOR FRONT RIGHT OEM PIAGGIO PORTER-B007338 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/1/2/4/3/img/121243.jpg)
26 |
VITRE DE DOOR FRONT LEFT OEM PIAGGIO PORTER-B007339 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/6/8/8/0/img/176880.jpg)
27 |
GASKET OF VITRE RIGHT OEM PIAGGIO PORTER 2020 <-2610776 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/6/8/8/1/img/176881.jpg)
28 |
GASKET ENTOURAGE VITRE DE DOOR FRONT LEFT OEM PIAGGIO PORTER 1998 > 2020-2610786 More informationQuantity required : 1 |
||||||
|
30 |
PINCE GASKET OF DOOR OEM PIAGGIO PORTER MULTITECH E6 2015 > 2020-CM281401 More informationQuantity required : 2 |
||||||
|
32 |
PINCE GASKET OF DOOR OEM PIAGGIO PORTER MULTITECH E6 2015 > 2020-CM281401 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/0/8/8/9/img/120889.jpg)
33 |
GASKET OF DOOR FRONT RIGHT OU LEFT OEM PIAGGIO PORTER-6786187Z01000 More informationQuantity required : 2 |
||||||
|
35 |
CM281402-SPRING More informationQuantity required : 16 |
||||||
|
37 |
CM281402-SPRING More informationQuantity required : 8 |
