Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTANE STANDARD 1000 Porter Multitech E5 Plus 2014-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

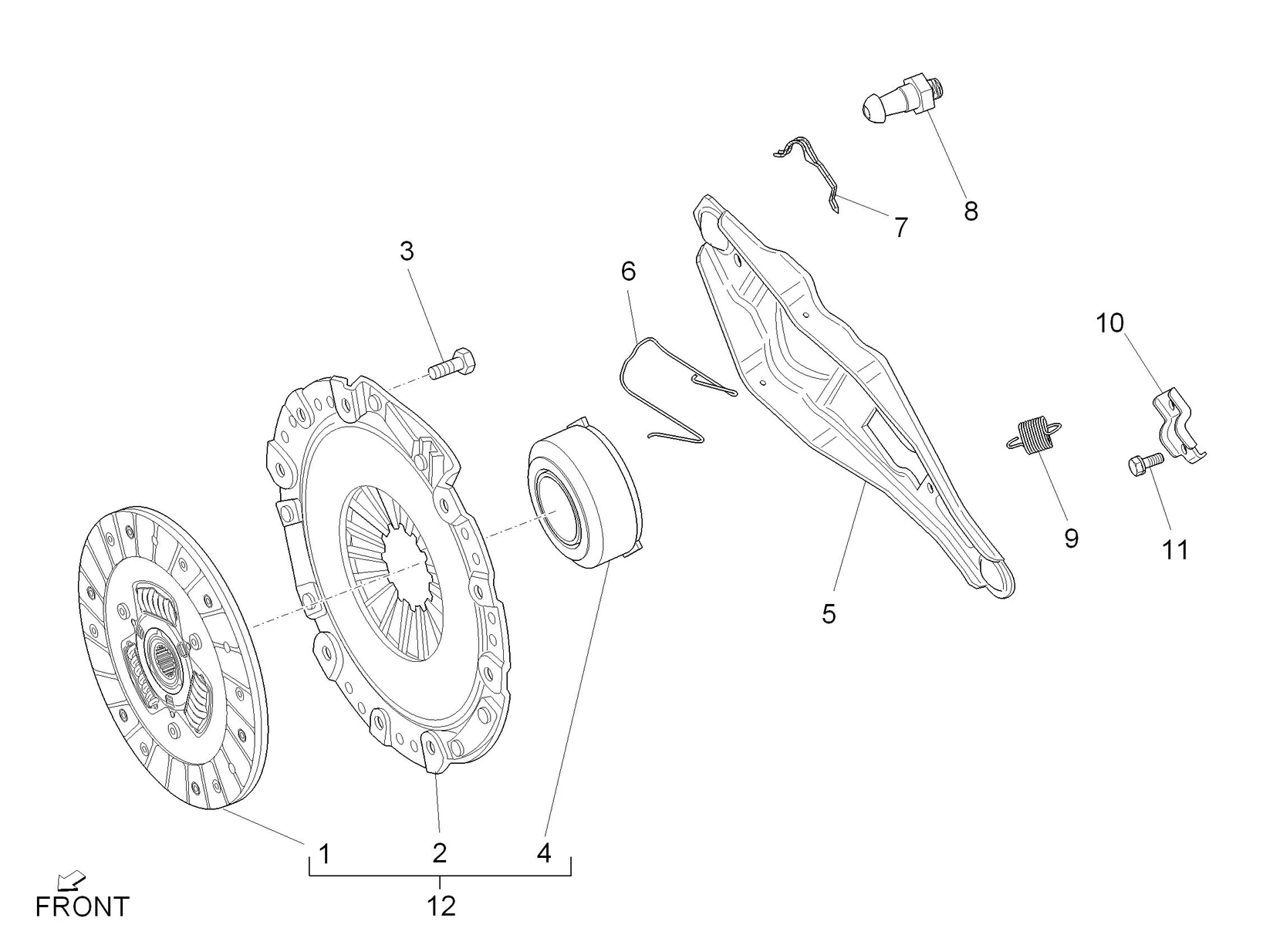

Moteur : 01.30 EMBRAYAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/718/Porter_Multitech_E5_Plus_2014-2015_01.30.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/1/9/7/9/img/121979.jpg)
1 |
DISC CLUTCH OEM PIAGGIO PORTER E4 MULTITECH 2010 > 2015-B010762 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/1/5/1/0/img/121510.jpg)
2 |
DIAPHRAGME/MECANISME CLUTCH OEM PIAGGIO PORTER E4 MULTITECH 2010 > 2015-B010763 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/9/0/2/img/110902.jpg)
3 |
B010134 - BOULON More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/5/1/4/img/117514.jpg)
4 |
BUTEE CLUTCH OEM PIAGGIO PORTER E4 2010 > 2015-B010291 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/7/6/5/img/115765.jpg)
5 |
FOURCHETTE D'EMBRAYAGE OEM PIAGGIO PORTER 2010 > 2015-B010290 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/0/5/1/img/113051.jpg)
6 |
SPRING BUTEE CLUTCH OEM PIAGGIO PORTER 2010 >, NP6 2021 >-B010292 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/0/8/4/img/113084.jpg)
7 |
SPRING OF RETURN FOURCHETTE CLUTCH OEM PIAGGIO PORTER 2010, NP6-B010288 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/6/7/6/img/111676.jpg)
8 |
SCREW SPECIALE CLUTCH OEM PIAGGIO PORTER 2010 > 2020-B010287 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/4/8/7/img/112487.jpg)
9 |
SPRING OF RETURN FOURCHETTE CLUTCH OEM PIAGGIO PORTER 2010 > 2020-B010294 More informationQuantity required : 1 |
||||||
10 |
B010293 - PATTE More informationQuantity required : 1 |
||||||
|
11 |
B010270 SCREW More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/2/9/7/3/img/122973.jpg)
12 |
KIT CLUTCH OEM PIAGGIO PORTER MULTITECH E4 2010 > 2015-1R000148 More informationQuantity required : 1 |
