Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTANE STANDARD 1000 Porter Multitech E5 Plus 2014-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

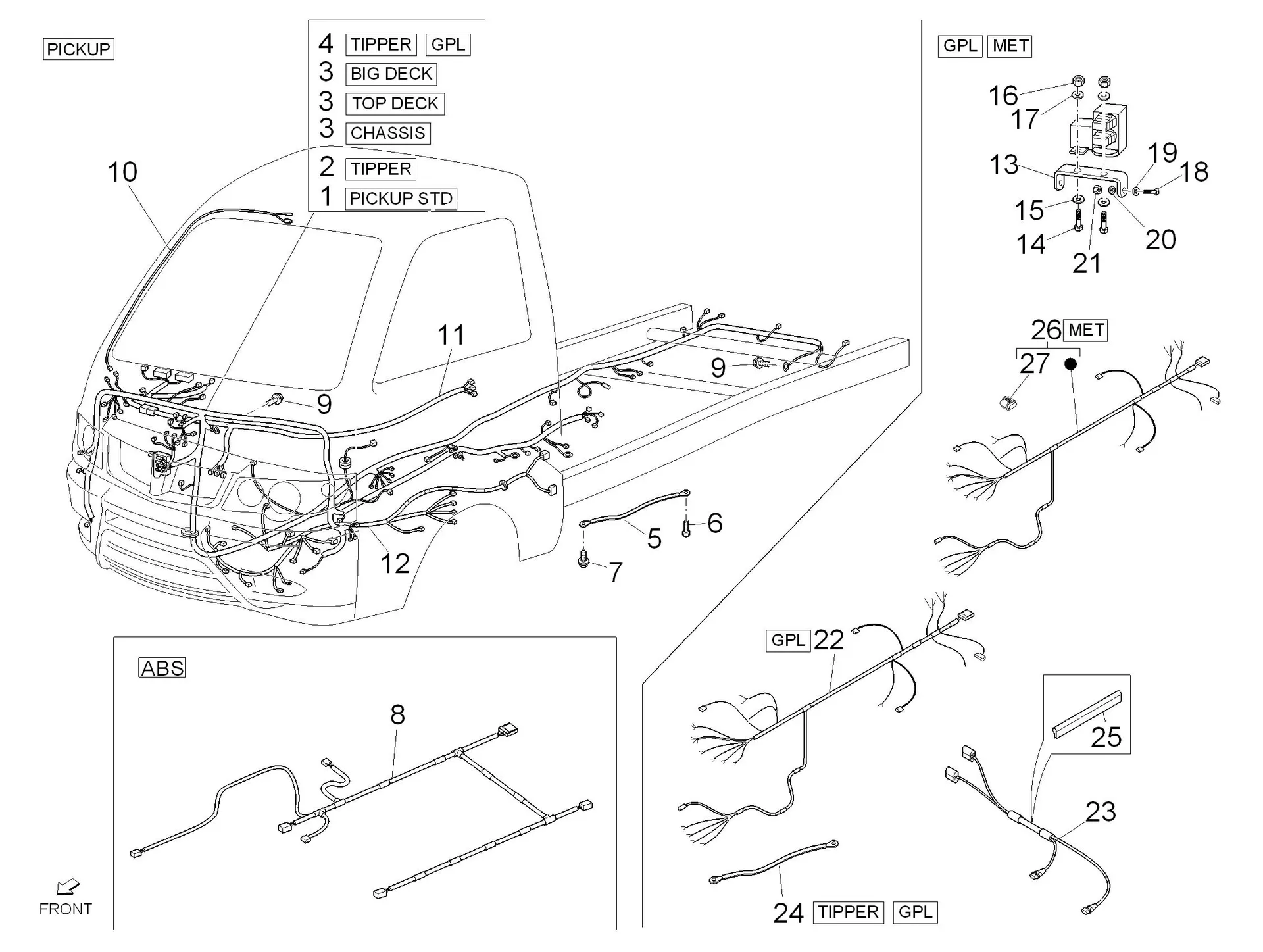

Installation électrique : 06.08 FAISCEAU DE CÂBLES PRINCIPAL II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/718/Porter_Multitech_E5_Plus_2014-2015_06.08.PNG)
1 |
1E000339 - FAISCEAU CABLES More informationQuantity required : 1 |
||||||
|
1 |
B005237 WIRING HARNESS More informationQuantity required : 1 |
||||||
|
1 |
B007621 WIRING HARNESS More informationQuantity required : 1 |
||||||
|
1 |
1D000644 - SYSTEME ELECTRIQUE PRINCIPAL More informationQuantity required : 5 |
||||||
|
2 |
1D000646 SYSTEME ELECTRIC PRINCIPAL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/4/0/9/0/img/124090.jpg)
2 |
HARNESS ELECTRIC OEM PIAGGIO PORTER MULTITECK E4 2010 >-B005242 More informationQuantity required : 5 |
||||||
|
2 |
B007622 - FAISC. CABLES More informationQuantity required : 1 |
||||||
|
2 |
1D000646 SYSTEME ELECTRIC PRINCIPAL More informationQuantity required : 5 |
||||||
|
3 |
1D000645 SYSTEME ELECTRIC PRINCIPAL More informationQuantity required : 1 |
||||||
|
3 |
B005235 WIRING HARNESS More informationQuantity required : 4 |
||||||
|
3 |
B007620 WIRING HARNESS More informationQuantity required : 1 |
||||||
|
3 |
1D000645 SYSTEME ELECTRIC PRINCIPAL More informationQuantity required : 5 |
||||||
|
4 |
B005245 FAISC. CABLES More informationQuantity required : 1 |
||||||
|
5 |
615484 CABLE ELECTR. More informationQuantity required : 1 |
||||||
|
6 |
D9004119554 BOLT More informationQuantity required : 1 |
||||||
|
7 |
D9165260616 - BOULON More informationQuantity required : 1 |
||||||
|
7 |
D9165260616 - BOULON More informationQuantity required : 1 |
||||||
|
8 |
B004053 WIRING HARNESS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/0/img/65640.jpg)
9 |
SCREW TH (6X18) OEM PIAGGIO COMMUNA LA RANGE-031089 More informationQuantity required : 3 |
||||||
|
10 |
B004364 FAISC. DE CABLES More informationQuantity required : 1 |
||||||
|
11 |
B004059 FAISC. DE CABLES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/2/6/0/6/img/122606.jpg)
12 |
WIRING HARNESS ENGINE OEM PIAGGIO PORTER VAN MULTITECH 2010 > 2020-B005233 More informationQuantity required : 1 |
||||||
|
13 |
659741 BRACKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/3/9/img/65639.jpg)
14 |
SCREW TH (6X16) OEM PIAGGIO COMMON A LA RANGE-031088 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/2/img/65362.jpg)
15 |
WASHER PLATE (6. 4X13X1. 5) OEM PIAGGIO COMMON A LA RANGE-013777 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/1/img/65461.jpg)
16 |
NUT (M6) OEM PIAGGIO COMMON A LA RANGE-020106 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
17 |
WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406 More informationQuantity required : 2 |
||||||
|
18 |
031059 - BOULON S03105900 More informationQuantity required : 0 |
||||||
|
19 |
003055-WASHER More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/5/img/65415.jpg)
20 |
WASHER GROWER (5, 1X8, 5X1, 5) OEM PIAGGIO COMMON A LA RANGE-016405 More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/0/img/65460.jpg)
21 |
NUT M5 OEM PIAGGIO COMMON A LA RANGE-020105 More informationQuantity required : 0 |
||||||
|
23 |
B005753 CABLES More informationQuantity required : 0 |
||||||
|
23 |
B007961 WIRING HARNESS More informationQuantity required : 1 |
||||||
|
24 |
1D001511 CABLE More informationQuantity required : 1 |
||||||
|
25 |
B007195 BORDURE TOIT ARR More informationQuantity required : 1 |
||||||
|
26 |
B007959 WIRING HARNESS More informationQuantity required : 1 |
||||||
|
27 |
B007958 CAP More informationQuantity required : 1 |
