Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTANE STANDARD 1000 Porter Multitech E5 Plus 2014-2015 PIAGGIO VU

Instalation du freins - transmisisons : 05.09 COMMANDE DE L'ACCÉLÉRATEUR

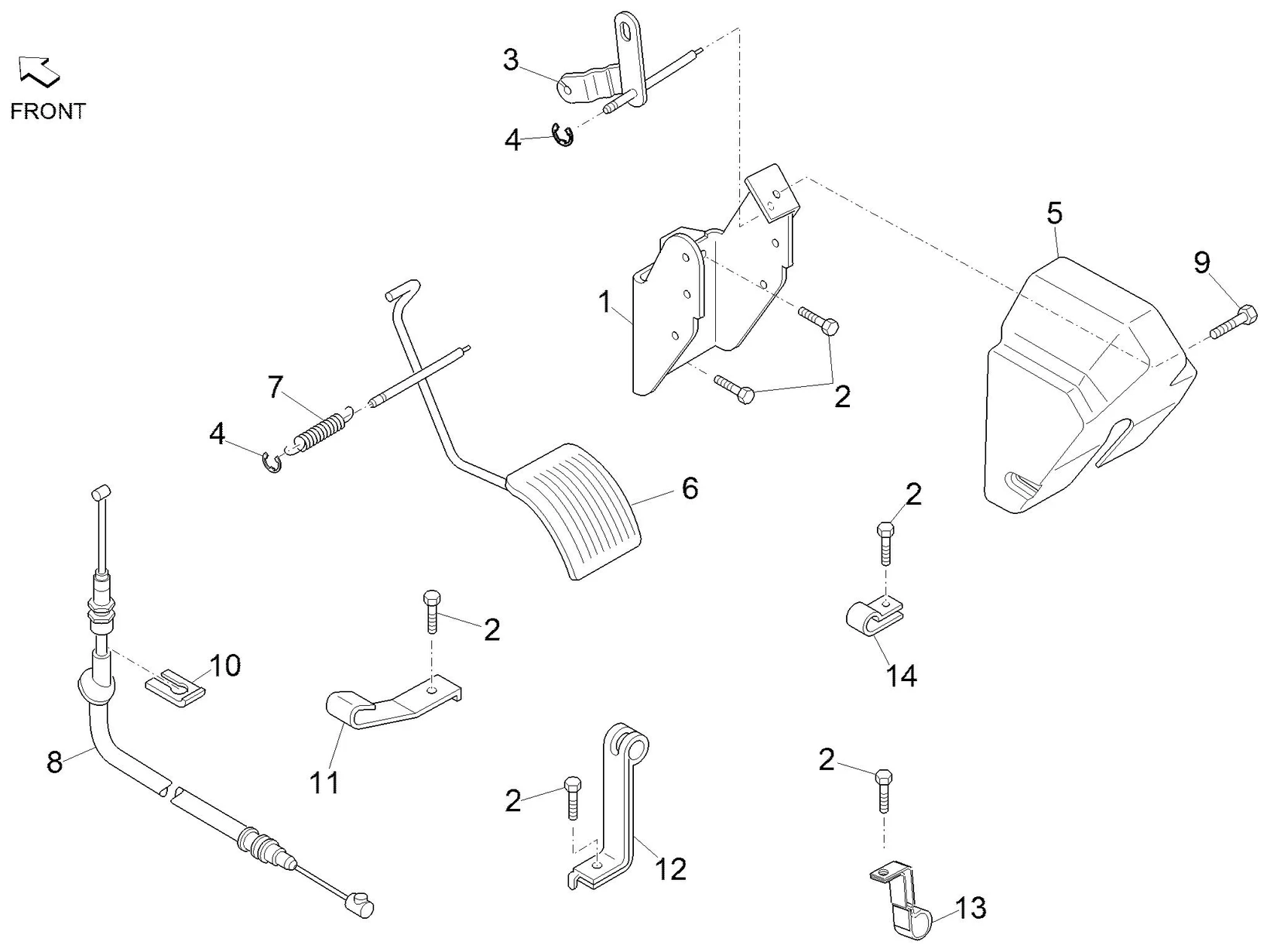

Commande de l'accélérateur
Search
7801187Z01000 - SUPPORT

1
P2R reference P2R reference 119693
Maker reference Maker reference 7801187Z01000

7801187Z01000 - SUPPORT

More information

Quantity required : 1

BOLT TH (6X14) WITH WASHER OEM PIAGGIO COMMON A LA RANGE-CM287314

2
P2R reference P2R reference 151198
Maker reference Maker reference CM287314

BOLT TH (6X14) WITH WASHER OEM PIAGGIO COMMON A LA RANGE-CM287314

More information

Quantity required : 4

7801387Z01000 - BRAS ACCELERA

3
P2R reference P2R reference 117193
Maker reference Maker reference 7801387Z01000

7801387Z01000 ARM ACCELERA

More information

Quantity required : 1

9616000800000 - CIRCLIPS

4
P2R reference P2R reference 111297
Maker reference Maker reference 9616000800000

9616000800000 CIRCLIPS

More information

Quantity required : 2

7811987Z01000 - COUVERCLE

5
P2R reference P2R reference 112111
Maker reference Maker reference 7811987Z01000

7811987Z01000 COVER

More information

Quantity required : 1

7810187Z01000 - PEDALE ACCEL.

6
P2R reference P2R reference 119124
Maker reference Maker reference 7810187Z01000

PEDALE ACCELERATEUR/THROTTLE OEM PIAGGIO PORTER 2020 <-7810187Z01000

More information

Quantity required : 1

9004508227000 - RESSORT

7
P2R reference P2R reference 114123
Maker reference Maker reference 9004508227000

9004508227000 SPRING

More information

Quantity required : 1

CABLE/CONTROL/TRANSMISSION DE THROTTLE OEM PIAGGIO PORTER E4 2010 > 2015-B005252

8
P2R reference P2R reference 117921
Maker reference Maker reference B005252

CABLE/CONTROL/TRANSMISSION DE THROTTLE OEM PIAGGIO PORTER E4 2010 > 2015-B005252

More information

Quantity required : 1

9004159431000 -

9
P2R reference P2R reference 110878
Maker reference Maker reference 9004159431000

9004159431000 -

More information

Quantity required : 2

AGRAPHE CONTROL DE THROTTLE OEM PIAGGIO PORTER 2020 <-7818787Z01000

10
P2R reference P2R reference 111317
Maker reference Maker reference 7818787Z01000

AGRAPHE CONTROL DE THROTTLE OEM PIAGGIO PORTER 2020 <-7818787Z01000

More information

Quantity required : 1

9004462324000 - COLLIER

11
P2R reference P2R reference 113627
Maker reference Maker reference 9004462324000

9004462324000 CLAMP

More information

Quantity required : 1

B007136 - COLLIER

12
P2R reference P2R reference 112589
Maker reference Maker reference B007136

B007136 CLAMP

More information

Quantity required : 1

D9004461423 - COLLIER

13
P2R reference P2R reference 112740
Maker reference Maker reference D9004461423

D9004461423 CLAMP

More information

Quantity required : 1

D9004461193 - COLLIER

14
P2R reference P2R reference 111477
Maker reference Maker reference D9004461193
Replaced by référence Replaced by référence 158255

D9004461193 - COLLIER

More information

Quantity required : 1
