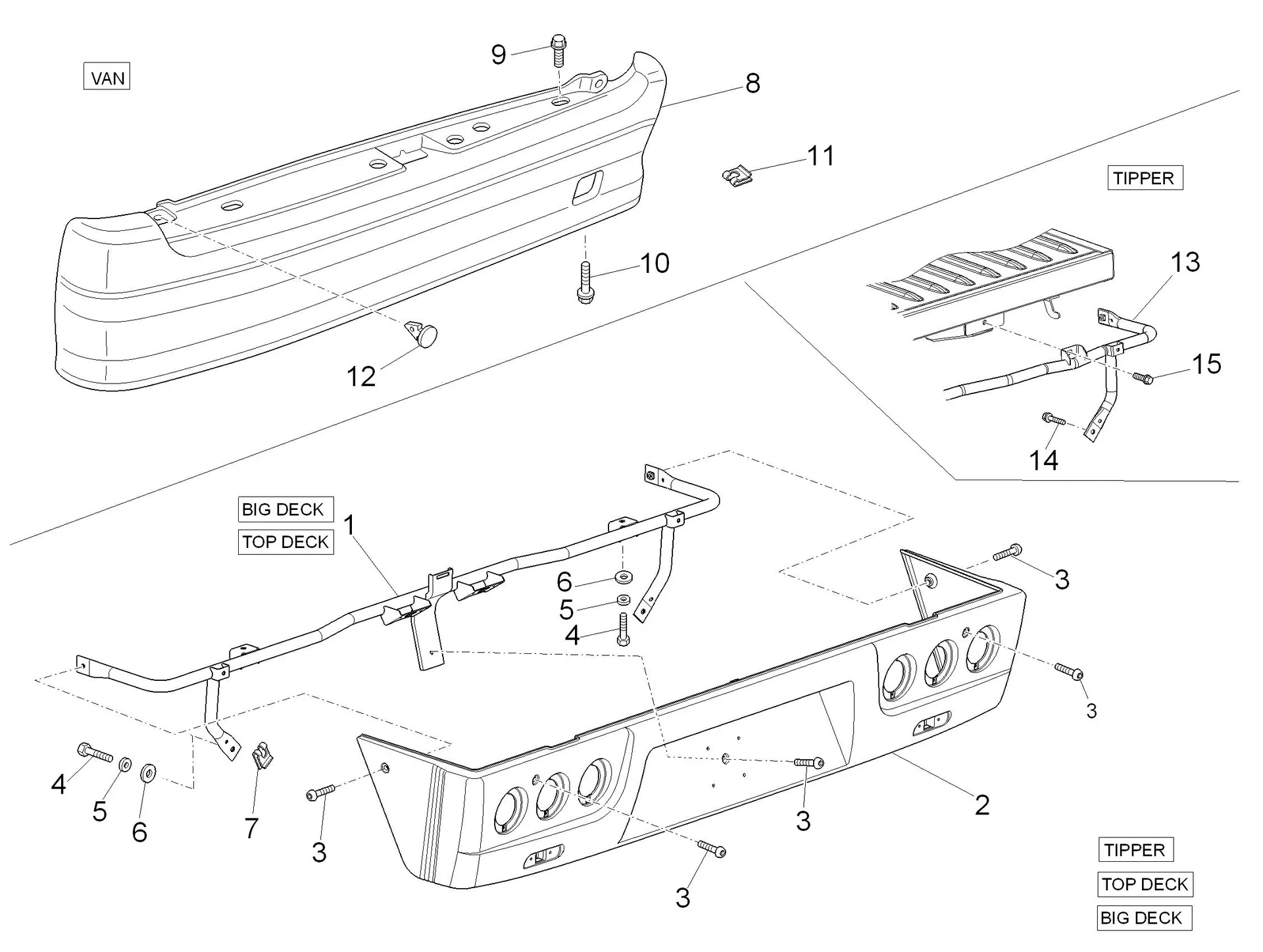

Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTANE STANDARD 1000 Porter Multitech E5 Plus 2014-2015 PIAGGIO VU

Châssis - parties plastiques - carrosseries : 02.31 COUVERCLE ARRIÈRE
Couvercle arrière
Search
BRACKET PROTECTOR CHOC REAR OEM PIAGGIO PORTER, CARGO-615191

1
P2R reference P2R reference 120847
Maker reference Maker reference 615191

BRACKET PROTECTOR CHOC REAR OEM PIAGGIO PORTER, CARGO-615191

More information

Quantity required : 1

BRACKET DE PROTECTOR CHOC REAR OEM PIAGGIO PORTER 2010 > 2020-B004312

1
P2R reference P2R reference 120080
Maker reference Maker reference B004312

BRACKET DE PROTECTOR CHOC REAR OEM PIAGGIO PORTER 2010 > 2020-B004312

More information

Quantity required : 1

PROTECTOR CHOC REAR OEM PIAGGIO PORTER 2010 > 2020-614833

2
P2R reference P2R reference 120564
Maker reference Maker reference 614833

PROTECTOR CHOC REAR OEM PIAGGIO PORTER 2010 > 2020-614833

More information

Quantity required : 1

SCREW - (6x20) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259830

3
P2R reference P2R reference 66043
Maker reference Maker reference 259830
Replaced by référence Replaced by référence 73367

SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259830

More information

Quantity required : 5

SCREW TH (6X18) OEM PIAGGIO COMMUNA LA RANGE-031089

4
P2R reference P2R reference 65640
Maker reference Maker reference 031089

SCREW TH (6X18) OEM PIAGGIO COMMUNA LA RANGE-031089

More information

Quantity required : 4

WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406

5
P2R reference P2R reference 65416
Maker reference Maker reference 016406

WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406

More information

Quantity required : 4

WASHER PLATE (6. 4X13X1. 5) OEM PIAGGIO COMMON A LA RANGE-013777

6
P2R reference P2R reference 65362
Maker reference Maker reference 013777

WASHER PLATE (6. 4X13X1. 5) OEM PIAGGIO COMMON A LA RANGE-013777

More information

Quantity required : 4

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

7
P2R reference P2R reference 66009
Maker reference Maker reference 254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

More information

Quantity required : 2

PROTECTOR CHOC REAR OEM PIAGGIO PORTER VAN 2020 <-566754

8
P2R reference P2R reference 119104
Maker reference Maker reference 566754

PROTECTOR CHOC REAR OEM PIAGGIO PORTER VAN 2020 <-566754

More information

Quantity required : 1

264449 - BOULON

9
P2R reference P2R reference 111112
Maker reference Maker reference 264449

264449 - BOULON

More information

Quantity required : 3

SCREW TH (6X14) WITH WASHER OEM PIAGGIO COMMON A LA RANGE-9004119537000

10
P2R reference P2R reference 110159
Maker reference Maker reference 9004119537000

SCREW TH (6X14) WITH WASHER OEM PIAGGIO COMMON A LA RANGE-9004119537000

More information

Quantity required : 3

9004183050000 - ECROU

11
P2R reference P2R reference 110066
Maker reference Maker reference 9004183050000

9004183050000 NUT

More information

Quantity required : 1

D9004468231 - COLLIER

12
P2R reference P2R reference 109870
Maker reference Maker reference D9004468231

D9004468231 CLAMP

More information

Quantity required : 2

BRACKET PROTECTOR CHOC REAR OEM PIAGGIO PORTER TIPPER 2010 > 2020-B004915

13
P2R reference P2R reference 120412
Maker reference Maker reference B004915

BRACKET PROTECTOR CHOC REAR OEM PIAGGIO PORTER TIPPER 2010 > 2020-B004915

More information

Quantity required : 1

SCREW A SIX PANS WITH DOUBLE WASHER M6X16-CM288916

14
P2R reference P2R reference 151147
Maker reference Maker reference CM288916

SCREW A SIX PANS WITH DOUBLE WASHER M6X16-CM288916

More information

Quantity required : 2

D9165260616 - BOULON

15
P2R reference P2R reference 110776
Maker reference Maker reference D9165260616

D9165260616 - BOULON

More information

Quantity required : 4

D9165260616 - BOULON

15
P2R reference P2R reference 110776
Maker reference Maker reference D9165140616

D9165260616 - BOULON

More information

Quantity required : 4
