Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTANE STANDARD 1000 Porter Multitech E5 Plus 2014-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

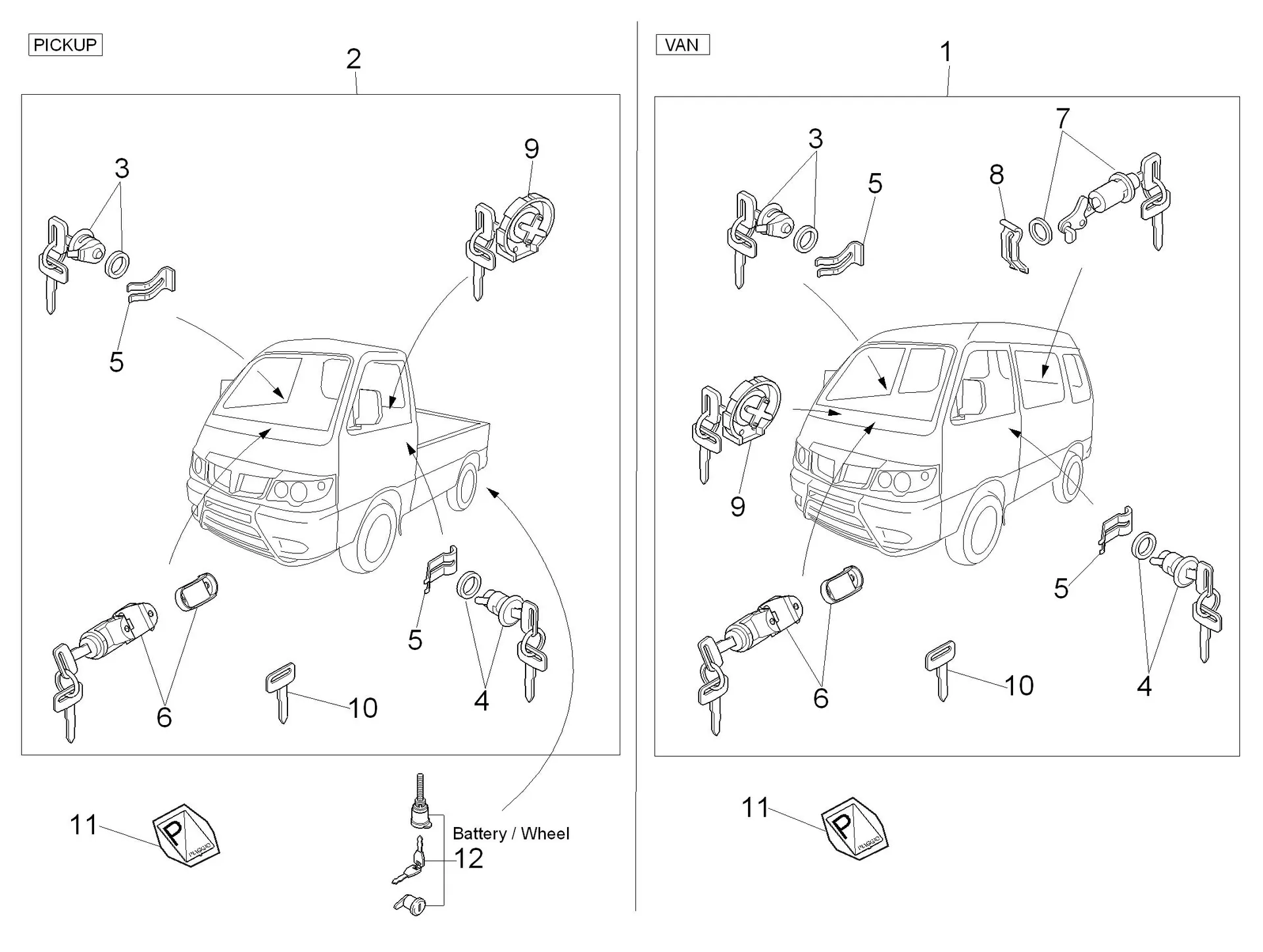

Châssis - parties plastiques - carrosseries : 02.37 SERRURES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/718/Porter_Multitech_E5_Plus_2014-2015_02.37.PNG)
1 |
658994 - SET SERRURE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/1/7/1/0/img/121710.jpg)
2 |
IGNITION SWITCH/LOCK COMPLETE OEM PIAGGIO PORTER 2009 > 04-2013-B023250 More informationQuantity required : 1 |
||||||
|
2 |
B023251 - KIT SERRURE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/9/6/6/4/img/119664.jpg)
3 |
RIGHT DOOR LOCK "PIAGGIO GENUINE PART" PORTER -613842- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/9/8/1/5/img/119815.jpg)
4 |
LOCK DE DOOR LEFT OEM PIAGGIO PORTER 2009 > 2020-1E002625 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/2/7/9/3/img/142793.jpg)
5 |
FOURCHETTE MOUNTING LOCK OEM PORTER-615094 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/4/2/0/img/158420.jpg)
6 |
IGNITION SWITCH/LOCK OEM PIAGGIO PORTER 2010 > 2020-1E002643 More informationQuantity required : 1 |
||||||
|
7 |
658998 - SERRURE ARR. More informationQuantity required : 1 |
||||||
|
8 |
658949 CLAMP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/8/3/5/1/img/118351.jpg)
9 |
CAP DU TANK OEM PIAGGIO PORTER E4 2010 > 2020 FUEL OU DIESEL-658999 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/7/1/9/img/114719.jpg)
10 |
EBAUCHE DE CLE OEM PIAGGIO PORTER 2009 > 2015-658997 More informationQuantity required : 2 |
||||||
|
10 |
B007166 CLEF EBLANCHE More informationQuantity required : 2 |
||||||
|
11 |
B004621 BADGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/1/9/1/3/img/121913.jpg)
12 |
GROUP LOCK UNDERSEAT COMPARTMENT WHEEL DE SECOURS OEM PIAGGIO PORTER-566819 More informationQuantity required : 1 |
