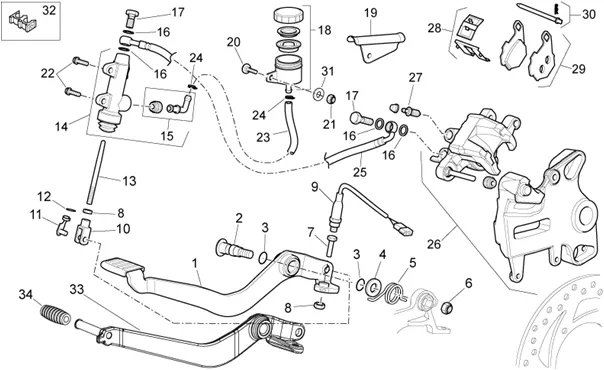

Vehicle Exploded View - APRILIA PEGASO STRADA-TRAIL 650 IE 2005-2009 APRILIA

Chassis : 28.38 SYS.FREIN ARRIÈRE
Sys.frein arrière
Search
AP8146934 - LEVA FRENO POST.COMPLETA

1
P2R reference P2R reference 50177
Maker reference Maker reference AP8146934

AP8146934 - LEVA FRENO POST.COMPLETA

More information

Quantity required : 1

REAR BRAKE PEDAL PIN "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA ET MOTO-GUZZI -884033-

2
P2R reference P2R reference 70751
Maker reference Maker reference 884033
Replaced by référence Replaced by référence 215775

REAR BRAKE PEDAL PIN "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA ET MOTO-GUZZI -884033

More information

Quantity required : 1

O-RING (11, 11X1, 78) OEM PIAGGIO COMMON A LA RANGE-AP8144007

3
P2R reference P2R reference 71738
Maker reference Maker reference AP8144007

O-RING (11, 11X1, 78) OEM PIAGGIO COMMON A LA RANGE-AP8144007

More information

Quantity required : 2

WASHER PLATE (10, 5X21X2) OEM PIAGGIO COMMON A LA RANGE-AP8150020

4
P2R reference P2R reference 71811
Maker reference Maker reference AP8150020

WASHER PLATE (10, 5X21X2) OEM PIAGGIO COMMON A LA RANGE-AP8150020

More information

Quantity required : 1

AP8125849 - RES. RAP. LEVIER FREIN

5
P2R reference P2R reference 47778
Maker reference Maker reference AP8125849

AP8125849-RES. RAP. LEVER BRAKE

More information

Quantity required : 1

NUT AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-AP8150431

6
P2R reference P2R reference 71883
Maker reference Maker reference AP8150431

NUT AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-AP8150431

More information

Quantity required : 1

VIS TE M 6 X 20

7
P2R reference P2R reference
Maker reference Maker reference AP8150071

VIS TE M 6 X 20

NUT (M6) OEM PIAGGIO COMMON A LA RANGE-AP8150026

8
P2R reference P2R reference 71812
Maker reference Maker reference AP8150026

NUT (M6) OEM PIAGGIO COMMON A LA RANGE-AP8150026

More information

Quantity required : 2

CONTACTEUR LAMP STOP REAR OEM PIAGGIO 1000 CAPONORD, FUTURA, 1000 RSV-2, RSV-4, 750 SHIVER/MOTO-GUZZI 1100-1200 BREVA, GRISO, 1200 SPORT, STELVIO, 850-1200 NORGE, 940 BELLAGIO-AP8112996

9
P2R reference P2R reference 71281
Maker reference Maker reference AP8112996

CONTACTEUR LAMP STOP REAR OEM PIAGGIO 1000 CAPONORD, FUTURA, 1000 RSV-2, RSV-4, 750 SHIVER/MOTO-GUZZI 1100-1200 BREVA, GRISO, 1200 SPORT, STELVIO, 850-1200 NORGE, 940 BELLAGIO-AP8112996

More information

Quantity required : 1

FOURCHETTE ROD OF CONTROL DE BRAKE MASTER CYLINDER REAR OEM PIAGGIO COMMON A ALA RANGE MOTO-AP8101968

10
P2R reference P2R reference 71167
Maker reference Maker reference AP8101968

FOURCHETTE ROD OF CONTROL DE BRAKE MASTER CYLINDER REAR OEM PIAGGIO COMMON A ALA RANGE MOTO-AP8101968

More information

Quantity required : 1

AGRAPHE/CLIP ROD OF MAITRE CYLINDER REAR OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA/MOTO-GUZZI-AP8201301

11
P2R reference P2R reference 72129
Maker reference Maker reference AP8201301

AGRAPHE/CLIP ROD OF MAITRE CYLINDER REAR OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA/MOTO-GUZZI-AP8201301

More information

Quantity required : 1

O-RING MAITRE CYLINDER REAR (OR112) OEM PIAGGIO COMMON A LA RANGE-AP8120178

12
P2R reference P2R reference 71387
Maker reference Maker reference AP8120178

O-RING MAITRE CYLINDER REAR (OR112) OEM PIAGGIO COMMON A LA RANGE-AP8120178

More information

Quantity required : 1

AP8113276 - TIGE POMPE

13
P2R reference P2R reference 45927
Maker reference Maker reference AP8113276

AP8113276 - TIGE POMPE

More information

Quantity required : 1

TIGE DE FREIN ARRIERE

13
P2R reference P2R reference
Maker reference Maker reference 852469

TIGE DE FREIN ARRIERE

AP8133643 - MA?T.CYL.FREIN AR

14
P2R reference P2R reference 71657
Maker reference Maker reference AP8133643

AP8133643-MA? T. CYL. BRAKE REAR

More information

Quantity required : 1

FITTING OF PUMP BRAKE REAR OEM APRILIA/MOTO-GUZZI COMMON A LA RANGE-AP8213057

15
P2R reference P2R reference 72197
Maker reference Maker reference AP8213057

FITTING OF PUMP BRAKE REAR OEM APRILIA/MOTO-GUZZI COMMON A LA RANGE-AP8213057

More information

Quantity required : 1

WASHER (10X14X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8113004

16
P2R reference P2R reference 71283
Maker reference Maker reference AP8113004

WASHER (10X14X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8113004

More information

Quantity required : 4

SCREW HOSE OIL (10MM) OEM PIAGGIO COMMON A LA RANGE-AP8113003

17
P2R reference P2R reference 71282
Maker reference Maker reference AP8113003

SCREW HOSE OIL (10MM) OEM PIAGGIO COMMON A LA RANGE-AP8113003

More information

Quantity required : 2

AP8133873 - SERBATOIO OLIO FRENI

18
P2R reference P2R reference 71679
Maker reference Maker reference AP8133873

AP8133873-TANK OIL FRENI

More information

Quantity required : 1

AP8179203 - PROTEZIONE TUBO FRENO POST.

19
P2R reference P2R reference 54395
Maker reference Maker reference AP8179203

AP8179203 - PROTEZIONE TUBO FRENO POST.

More information

Quantity required : 1

SCREW BTR HEAD BOMBEE (5X12) OEM PIAGGIO COMMON A LA RANGE-AP8152267

20
P2R reference P2R reference 71934
Maker reference Maker reference AP8152267

SCREW BTR HEAD BOMBEE (5X12) OEM PIAGGIO COMMON A LA RANGE-AP8152267

More information

Quantity required : 1

NUT FLANGE AUTOBLOQUANT/NYLSTOP (M5) OEM PIAGGIO COMMON A LA RANGE-AP81523066

21
P2R reference P2R reference 71963
Maker reference Maker reference AP8152306

NUT FLANGE AUTOBLOQUANT/NYLSTOP (M5) OEM PIAGGIO COMMON A LA RANGE-AP81523066

More information

Quantity required : 1

SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278

22
P2R reference P2R reference 151683
Maker reference Maker reference AP8152278

SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278

More information

Quantity required : 2

HOSE OIL DE BOCAL OF BRAKE OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA-890509

23
P2R reference P2R reference 41726
Maker reference Maker reference 890509

HOSE OIL DE BOCAL OF BRAKE OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA-890509

More information

Quantity required : 1

CLAMP HOSE (10, 1) OEM PIAGGIO COMMON A LA RANGE-AP8101595

24
P2R reference P2R reference 71155
Maker reference Maker reference AP8101595

CLAMP HOSE (10, 1) OEM PIAGGIO COMMON A LA RANGE-AP8101595

More information

Quantity required : 2

858237 - TUYAU FREIN ARRIERE

25
P2R reference P2R reference 40450
Maker reference Maker reference 858237

858237-HOSE BRAKE REAR

More information

Quantity required : 1

AP8133820 - PINZA FRENO POSTERIORE

26
P2R reference P2R reference 48811
Maker reference Maker reference AP8133820

AP8133820 - PINZA FRENO POSTERIORE

More information

Quantity required : 1

AP8133879 - PINZA FRENO POST.

26
P2R reference P2R reference 48837
Maker reference Maker reference AP8133879

AP8133879 - PINZA FRENO POST.

More information

Quantity required : 1

AP8113549 - PURGE AIR

27
P2R reference P2R reference 71305
Maker reference Maker reference AP8113549

AP8113549 - PURGE AIR

More information

Quantity required : 1

AP8133827 - MOLLA+LAMIERINO

28
P2R reference P2R reference 48816
Maker reference Maker reference AP8133827

AP8133827-MOLLA + LAMIERINO

More information

Quantity required : 1

AP8133825 - PASTIGLIE -COPPIA-

29
P2R reference P2R reference 71677
Maker reference Maker reference AP8133825

AP8133825 - PASTIGLIE -COPPIA-

More information

Quantity required : 1

AP8133911 - PASTIGLIE-COPPIA

29
P2R reference P2R reference 71689
Maker reference Maker reference AP8133911

AP8133911 - PASTIGLIE-COPPIA

More information

Quantity required : 1

AP8133826 - PERNO+COPIGLIA

30
P2R reference P2R reference 48815
Maker reference Maker reference AP8133826

AP8133826-PERNO + COPIGLIA

More information

Quantity required : 1

WASHER EVENTAIL (D5) OEM PIAGGIO COMMON A LA RANGE-AP8150284

31
P2R reference P2R reference 71851
Maker reference Maker reference AP8150284

WASHER EVENTAIL (D5) OEM PIAGGIO COMMON A LA RANGE-AP8150284

More information

Quantity required : 1

AP8144219 - RESSORT

32
P2R reference P2R reference 49651
Maker reference Maker reference AP8144219

AP8144219 - RESSORT

More information

Quantity required : 1

852468 - LEVIER FREIN

33
P2R reference P2R reference 39566
Maker reference Maker reference 852468

852468 - LEVIER FREIN

More information

Quantity required : 1

RUBBER OF GEAR LEVER OEM PIAGGIO APRILIA 50-125 RS, CLASSIC, 125 FUTURA, 600-650 PEGASO/MOTO-GUZZI 750 BREVA-AP8220189

34
P2R reference P2R reference 72273
Maker reference Maker reference AP8220189

RUBBER OF GEAR LEVER OEM PIAGGIO APRILIA 50-125 RS, CLASSIC, 125 FUTURA, 600-650 PEGASO/MOTO-GUZZI 750 BREVA-AP8220189

More information

Quantity required : 1
