Vehicle Exploded View - APRILIA PEGASO STRADA-TRAIL 650 IE 2005-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

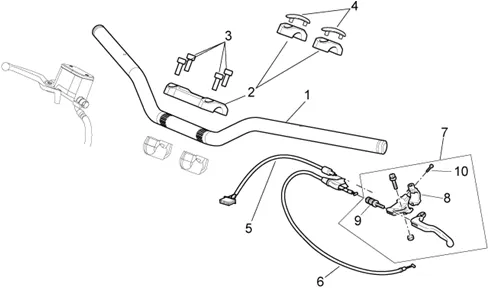

Chassis : 28.21 COMMANDES I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/306/Pegaso_Strada-Trail_650_IE_2005-2009_28.21.PNG)
1 |
852472 - (*)MANUBRIO COMPLETO More informationQuantity required : 1 |
||||||
|
1 |
AP8118697 - MANUBRIO More informationQuantity required : 1 |
||||||
|
2 |
852449 - CAVALIER More informationQuantity required : 1 |
||||||
|
2 |
AP8123604-CAVALIER More informationQuantity required : 2 |
||||||
|
2 |
AP8163513 - CAVALLOTTO SUP.MANUBRIO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/0/img/71830.jpg)
3 |
SCREW BTR (8X25) OEM PIAGGIO COMMON A LA RANGE-AP8150170 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/1/0/4/0/img/51040.jpg)
3 |
SCREW BTR CHROME (8X25) OEM PIAGGIO COMMON A LA RANGE-AP8152486 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/1/0/img/67410.jpg)
3 |
SCREW BTR (8X30) OEM PIAGGIO COMMON A LA RANGE-600123 More informationQuantity required : 4 |
||||||
|
4 |
AP8101513-CAP COVER HANDLEBAR More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/1/img/71281.jpg)
5 |
CONTACTEUR LAMP STOP REAR OEM PIAGGIO 1000 CAPONORD, FUTURA, 1000 RSV-2, RSV-4, 750 SHIVER/MOTO-GUZZI 1100-1200 BREVA, GRISO, 1200 SPORT, STELVIO, 850-1200 NORGE, 940 BELLAGIO-AP8112996 More informationQuantity required : 1 |
||||||
|
6 |
CABLE EMBRAY. |
||||||
|
6 |
CABLE/CONTROL/TRANSMISSION CLUTCH OEM PIAGGIO 650 PEGASO 650 APRILIA 2005 > 2009-AP8114481 More informationQuantity required : 1 |
||||||
|
7 |
852328 - PORTE-LEVIER More informationQuantity required : 1 |
||||||
|
8 |
AP8118349-CAVALIER More informationQuantity required : 1 |
||||||
|
9 |
CLUTCH CABLE ADJUSTER "PIAGGIO GENUINE PART" APRILIA 125 RX, SX, RS, MX, TUONO -852330- More informationQuantity required : 1 |
||||||
|
10 |
GU97202325-SCREW FLANGE BLACK M6X25 More informationQuantity required : 2 |
