Vehicle Exploded View - APRILIA PEGASO STRADA-TRAIL 650 IE 2005-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

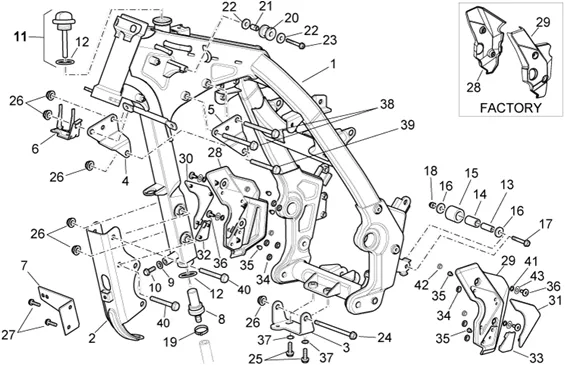

Chassis : 28.01 CHASSIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/306/Pegaso_Strada-Trail_650_IE_2005-2009_28.01.PNG)
1 |
AP8145026 - TELAIO FINITO More informationQuantity required : 1 |
||||||
|
1 |
AP8145081 - CHASSIS, GRIS More informationQuantity required : 1 |
||||||
|
1 |
AP8146917 - TELAIO FINITO More informationQuantity required : 1 |
||||||
|
2 |
AP8146915 - FAZZOLETTO ANT.SUPPORTO MOTORE More informationQuantity required : 1 |
||||||
|
3 |
AP8146921 - FAZZOLETTO INF.SUPPORTO MOTORE More informationQuantity required : 1 |
||||||
|
4 |
AP8146922 - FAZZOLETTO ATTACCO TESTA DX More informationQuantity required : 1 |
||||||
|
5 |
AP8146923 - FAZZOLETTO ATTACCO TESTA SX More informationQuantity required : 1 |
||||||
|
6 |
AP8146920 - FAZZOLETTO SUPP.VALVOLA AIS More informationQuantity required : 1 |
||||||
|
7 |
AP8146919 - FAZZOLETTO SUPPORTO REG.TENS. More informationQuantity required : 1 |
||||||
|
8 |
AP8104911 - FILTRO OLIO A TELAIO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/7/0/img/97070.jpg)
9 |
WASHER PLATE (8X16X1, 5) OEM PIAGGIO COMMON A LA RANGE-AP8121862 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/8/img/71948.jpg)
10 |
SCREW FLANGE TH (8X20) OEM PIAGGIO COMMON A LA RANGE-AP8152286 More informationQuantity required : 1 |
||||||
|
11 |
AP8102393-CAP RES. OIL + ROD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/5/9/8/img/46598.jpg)
12 |
O RING OF OEM MOPED SWINGARM OEM APRILIA 125 RS 1995 < 2010-AP8120280 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/0/9/3/img/45093.jpg)
13 |
SPACER OEM APRILIA COMMON A LA RANGE-AP8101108 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/7/2/5/img/46725.jpg)
14 |
AP8121092 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
15 |
AP8101704 - ROULETTE TENDEUR DE CHA?NE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/0/img/71810.jpg)
16 |
WASHER PLATE (8. 5X24X2) OEM PIAGGIO COMMON A LA RANGE-AP8150018 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/4/img/71954.jpg)
17 |
SCREW FLANGE TH (M8X50) OEM PIAGGIO COMMON A LA RANGE-AP8152292 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/3/img/71883.jpg)
18 |
NUT AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-AP8150431 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/0/0/img/71200.jpg)
19 |
CLAMP CLIC (20X8) OEM PIAGGIO COMMON A LA RANGE-AP8102786 More informationQuantity required : 1 |
||||||
|
20 |
AP8144714 - GOMMINO More informationQuantity required : 2 |
||||||
|
21 |
AP8161051-SPACER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/8/img/71808.jpg)
22 |
WASHER PLATE (6. 6X18X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150015 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/7/6/img/50976.jpg)
23 |
SCREW FLANGE TH (6X40) OEM PIAGGIO COMMON A LA RANGE-AP8152283 More informationQuantity required : 2 |
||||||
|
24 |
Vis bride |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/8/6/img/71986.jpg)
25 |
SCREW FLANGE TH (10X25) OEM PIAGGIO COMMON A LA RANGE-AP8152473 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/0/img/71960.jpg)
26 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-AP8152301 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
27 |
SCREW FLANGE TH (6X12) OEM PIAGGIO COMUUN A LA RANGE-AP8152277 More informationQuantity required : 2 |
||||||
|
28 |
852447 - PROTECTION CHASSIS More informationQuantity required : 1 |
||||||
|
28 |
AP8146962 - PROTEZIONE PEDANA PILOTA DX V. More informationQuantity required : 1 |
||||||
|
28 |
AP8184426 - COUVERCLE More informationQuantity required : 1 |
||||||
|
29 |
852448 - PROTECTION More informationQuantity required : 1 |
||||||
|
29 |
AP8146963 - PROTEZIONE PEDANA PILOTA SX V. More informationQuantity required : 1 |
||||||
|
29 |
AP8184427 - COUVERCLE More informationQuantity required : 1 |
||||||
|
30 |
Insert |
||||||
|
31 |
Insert |
||||||
|
32 |
Insert |
||||||
|
33 |
Insert |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/8/img/71888.jpg)
34 |
WASHER ELASTIC (5) OEM PIAGGIO COMMON A TOUTE LA RANGE-AP8150450 More informationQuantity required : 10 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/8/6/img/72286.jpg)
35 |
RUBBER/BUFFER CHAMPIGNON OEM APRILIA/MOTO GUZZI COMMON A LA RANGE-AP8220488 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/2/img/71972.jpg)
36 |
SCREW FLANGE BTR (5X20) OEM PIAGGIO COMMON A LA RANGE MOTO ET MAXI SCOOTER APRILIA-AP8152338 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/1/img/71811.jpg)
37 |
WASHER PLATE (10, 5X21X2) OEM PIAGGIO COMMON A LA RANGE-AP8150020 More informationQuantity required : 2 |
||||||
|
38 |
AP8152482-SCREW FLANGE M10X85 More informationQuantity required : 2 |
||||||
|
39 |
SCREW FLANGE TH (10X55) OEM PIAGGIO COMMON A LA RANGE-AP8152410 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/1/0/3/8/img/51038.JPG)
40 |
AP8152481-SCREW TE M10 X 70 FLANGIATA More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/3/img/71873.jpg)
41 |
WASHER PLATE (5, 5X15X1, 2) OEM PIAGGIO COMMON A LA RANGE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/8/img/71488.jpg)
42 |
BUSH EN T INNER 6 MM OEM PIAGGIO COMMON A LA RANGE-AP8121811 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/8/4/img/97084.jpg)
43 |
WASHER ELASTIC COURBE (5. 3X10X0. 5) OEM PIAGGIO COMMON A LA RANGE-AP8150272 More informationQuantity required : 4 |
