Vehicle Exploded View - APRILIA PEGASO STRADA-TRAIL 650 IE 2005-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

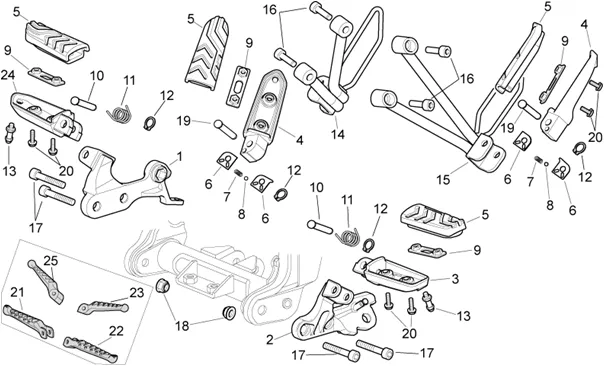

Chassis : 28.03 REPOSE-PIEDS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/306/Pegaso_Strada-Trail_650_IE_2005-2009_28.03.PNG)
1 |
AP8146926 - SUPPORTO PEDANA DX PILOTA More informationQuantity required : 1 |
|||||||||
|
2 |
AP8146927 - SUPPORTO PEDANA SX PILOTA More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/5/5/2/0/img/175520.jpg)
3 |
2B006169 - R-PIED PILOTE G More informationQuantity required : 1 |
|||||||||
|
3 |
GU32441310-R-FOOT PILOTE G More informationQuantity required : 1 |
|||||||||
|
3 |
2B006169 - R-PIED PILOTE G More informationQuantity required : 1 |
|||||||||
|
4 |
PAIRE DE REPOSES FEET PASSENGER OEM APRILIA 650 PEGASO 2005 > 2009, SCARABEO 100 2006 > 2014-AP81450076 More informationQuantity required : 1 |
|||||||||
|
5 |
AP8144753 - GOMMA PEDANE -COPPIA- More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/0/3/img/71703.jpg)
6 |
PLATE FDC PASSENGER FOOTREST OEM PIAGGIO COMMON A LA RANGE-AP8134451 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/7/img/71437.jpg)
7 |
SPRING DE MAINTIEN FOOTREST OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-AP8121133 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/6/3/img/71163.jpg)
8 |
BILLE BLOCAGE FOOTREST OEM PIAGGIO APRILIA DORSODURO 750-900-1200, RS 50-125, RSV-4 1000, TUONO 1000/MOTO GUZZI 1200 SPORT, BELLAGIO, BREVA, GRISO, NORGE-AP8101861 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/7/1/img/73471.jpg)
9 |
PLATE OF REST FOOT OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-GU32441210 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/7/2/img/71472.jpg)
10 |
PIVOT REST-FOOT (8X36) OEM PIAGGIO COMMON A LA RANGE APRILIA/MOTO GUZZI-AP8121566 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/5/4/img/71454.jpg)
11 |
SPRING RETOUR FOOTREST PILOTE OEM APRILIA 660-750-900-1000-1100 SHIVER, RSV, TUONO-AP8121224 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/1/0/img/72310.jpg)
11 |
SPRING FOOTREST PILOTE OEM PIAGGIO MOTO-GUZZI BREVA, NORGE, STELVIO, V7, V9, V85/APRILIA 750-900 SHIVER-AP8221277 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/8/1/img/71981.jpg)
12 |
CLIPS/CIRCLIPS (D-8) OEM PIAGGIO COMMON A LA RANGE-AP8152409 More informationQuantity required : 4 |
|||||||||
|
13 |
853263 - PIVOT More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/8/img/71438.jpg)
13 |
PIVOT FRICTION REST-FOOT OEM PIAGGIO COMMON A LA RANGE MOTO-AP8121134 More informationQuantity required : 2 |
|||||||||
|
14 |
AP8145084 - SUPPORT R-P. PASS.DR., GRIS More informationQuantity required : 1 |
|||||||||
|
14 |
AP8146924 - SUPPORTO PEDANA DX PASS. More informationQuantity required : 1 |
|||||||||
|
15 |
AP8145085 - SUPPORT R-P. G PASS., GRIS More informationQuantity required : 1 |
|||||||||
|
15 |
AP8146925 - SUPPORTO PEDANA SX PASS. More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/1/0/4/0/img/51040.jpg)
16 |
SCREW BTR CHROME (8X25) OEM PIAGGIO COMMON A LA RANGE-AP8152486 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/6/0/img/71860.jpg)
17 |
SCREW BTR (10X50) OEM PIAGGIO COMMON A LA RANGE-AP8150329 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/0/img/71960.jpg)
18 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-AP8152301 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/1/0/img/71710.jpg)
19 |
PIVOT OF REST FOOT (8X35) OEM PIAGGIO COMMON A LA RANGE-AP8134829 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
20 |
SCREW FLANGE TH (6X12) OEM PIAGGIO COMUUN A LA RANGE-AP8152277 More informationQuantity required : 8 |
|||||||||
|
21 |
852928-MAT More informationQuantity required : 1 |
|||||||||
|
22 |
852929-MAT More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/0/0/4/img/50004.jpg)
23 |
PASSENGER FOOTREST LEFT OEM PIAGGIO APRILIA 750 SHIVER 2010 >, DORSODURO 2008 >, 1000 RSV-2 1998 >, TUONO 2002 >, FUTURA 2001 >, 1200 DORSODURO 2010 >-AP81464065 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/8/9/img/71789.jpg)
24 |
RIGHT RIDER FOOTREST "PIAGGIO GENUINE PART" MOTO-GUZZI BREVA, STELVIO, GRISO, NORGE, V7, V9, BELLAGIO/APRILIA 750-900 SHIVER, 50-125 TUONO, 650 PEGASO -AP81450345 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/0/0/3/img/50003.jpg)
25 |
FOOTREST PILOTE/PASSENGER RIGHT OEM PIAGGIO APRILIA 660 RS, 750 SHIVER, DORSODURO, 1000 RSV-2, TUONO,, 1200 DORSODURO-AP81464055 More informationQuantity required : 1 |
|||||||||
