Vehicle Exploded View - APRILIA PEGASO STRADA-TRAIL 650 IE 2005-2009 APRILIA

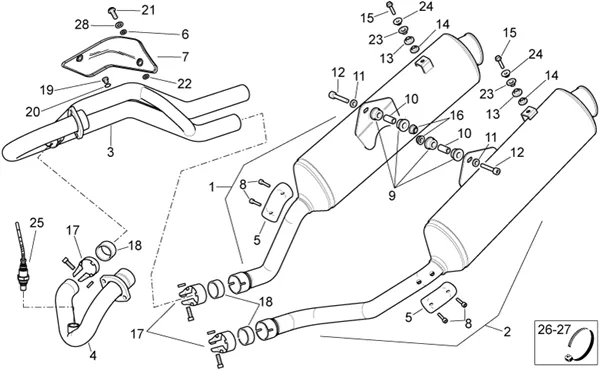

Chassis : 28.28 GROUPE ECHAPPEMENT
Groupe echappement
Search
AP8119842 - SILENZIATORE DX

1
P2R reference P2R reference 46561
Maker reference Maker reference AP8119842

AP8119842 - SILENZIATORE DX

More information

Quantity required : 1

85155R - SILENCIEUX D

1
P2R reference P2R reference 39132
Maker reference Maker reference 85155R

85155R - SILENCIEUX D

More information

Quantity required : 1

AP8119843 - SILENZIATORE SX

2
P2R reference P2R reference 46562
Maker reference Maker reference AP8119843

AP8119843 - SILENZIATORE SX

More information

Quantity required : 1

85158R - SILENCIEUX G

2
P2R reference P2R reference 39142
Maker reference Maker reference 85158R

85158R - SILENCIEUX G

More information

Quantity required : 1

AP8119845 - COLLETTORE SILENZIATORE SX

3
P2R reference P2R reference 46564
Maker reference Maker reference AP8119845

AP8119845 - COLLETTORE SILENZIATORE SX

More information

Quantity required : 1

AP8119844 - COLLETTORE SILENZIATORE DX

4
P2R reference P2R reference 46563
Maker reference Maker reference AP8119844

AP8119844 - COLLETTORE SILENZIATORE DX

More information

Quantity required : 1

AP8119900 - COLLETTORE SILENZIATORE DX

4
P2R reference P2R reference 46586
Maker reference Maker reference AP8119900

AP8119900 - COLLETTORE SILENZIATORE DX

More information

Quantity required : 1

AP8119847 - PROTEZIONE SILENZIATORE DX

5
P2R reference P2R reference 46565
Maker reference Maker reference AP8119847

AP8119847-PROTEZIONE SILENZIATORE DX

More information

Quantity required : 2

WASHER PLATE (6. 4X18X2) OEM PIAGGIO COMMON A LA RANGE-AP8150378

6
P2R reference P2R reference 71872
Maker reference Maker reference AP8150378

WASHER PLATE (6. 4X18X2) OEM PIAGGIO COMMON A LA RANGE-AP8150378

More information

Quantity required : 2

AP8179018 - PROTEZIONE COLLETTORE

7
P2R reference P2R reference 54280
Maker reference Maker reference AP8179018

AP8179018-PROTEZIONE COLLETTORE

More information

Quantity required : 1

AP8706565 - PROTECTION DE CARB. CHALEUR

7
P2R reference P2R reference 107338
Maker reference Maker reference AP8706565

AP8706565 - PROTECTION DE CARB. CHALEUR

More information

Quantity required : 1

AP8150505 - VITE TCEI M4X6 INOX

8
P2R reference P2R reference 50904
Maker reference Maker reference AP8150505

AP8150505-SCREW TCEI M4X6 INOX

More information

Quantity required : 4

RUBBER DE SILENCER EXHAUST OEM APRILIA/MOTO GUZZI COMMON A LA RANGE-AP8144071

9
P2R reference P2R reference 71745
Maker reference Maker reference AP8144071

RUBBER DE SILENCER EXHAUST OEM APRILIA/MOTO GUZZI COMMON A LA RANGE-AP8144071

More information

Quantity required : 4

SPACER (8X12X26) OEM PIAGGIO COMMON A LA RANGE-AP8121773

10
P2R reference P2R reference 71484
Maker reference Maker reference AP8121773

SPACER (8X12X26) OEM PIAGGIO COMMON A LA RANGE-AP8121773

More information

Quantity required : 2

WASHER PLATE (8. 5X24X2) OEM PIAGGIO COMMON A LA RANGE-AP8150018

11
P2R reference P2R reference 71810
Maker reference Maker reference AP8150018

WASHER PLATE (8. 5X24X2) OEM PIAGGIO COMMON A LA RANGE-AP8150018

More information

Quantity required : 2

SCREW BTR (8X50) OEM PIAGGIO COMMON A LA RANGE-AP8150277

12
P2R reference P2R reference 71849
Maker reference Maker reference AP8150277

SCREW BTR (8X50) OEM PIAGGIO COMMON A LA RANGE-AP8150277

More information

Quantity required : 2

AP8152488 - TAMPONE PASSACAVO

13
P2R reference P2R reference 51041
Maker reference Maker reference AP8152488

AP8152488 - TAMPONE PASSACAVO

More information

Quantity required : 2

BUSH EN T (DIAMETER INNER MM 6) OEM PIAGGIO COMMON A LA RANGE-AP8221023

14
P2R reference P2R reference 72294
Maker reference Maker reference AP8221023

BUSH EN T (DIAMETER INNER MM 6) OEM PIAGGIO COMMON A LA RANGE-AP8221023

More information

Quantity required : 2

SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE-AP8152280

15
P2R reference P2R reference 71943
Maker reference Maker reference AP8152280

SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE-AP8152280

More information

Quantity required : 2

NUT FLANGE AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-AP8152300

16
P2R reference P2R reference 71959
Maker reference Maker reference AP8152300

NUT FLANGE AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-AP8152300

More information

Quantity required : 2

CLAMP EXHAUST OEM PIAGGIO APRILIA 125 ATLANTIC-AP8119734

17
P2R reference P2R reference 46516
Maker reference Maker reference AP8119734

CLAMP EXHAUST OEM PIAGGIO APRILIA 125 ATLANTIC-AP8119734

More information

Quantity required : 3

AP8119872 - GUARNIZIONE

18
P2R reference P2R reference 46575
Maker reference Maker reference AP8119872

AP8119872 - GUARNIZIONE

More information

Quantity required : 3

AP8119664 - BOUCHON;

19
P2R reference P2R reference 46497
Maker reference Maker reference AP8119664

AP8119664-CAP

More information

Quantity required : 1

GASKET CUIVRE (10X16X1) BRAKE CALIPER OEM PIAGGIO COMMON A TOUTE LA RANGE-127927

20
P2R reference P2R reference 65723
Maker reference Maker reference 127927

GASKET CUIVRE (10X16X1) BRAKE CALIPER OEM PIAGGIO COMMON A TOUTE LA RANGE-127927

More information

Quantity required : 1

SCREW FLANGE BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152246

21
P2R reference P2R reference 71933
Maker reference Maker reference AP8152246

SCREW FLANGE BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152246

More information

Quantity required : 2

SCREW FLANGE TH (6X12) OEM PIAGGIO COMMON A LA RANGE-AP8152342

21
P2R reference P2R reference 97096
Maker reference Maker reference AP8152342

SCREW FLANGE TH (6X12) OEM PIAGGIO COMMON A LA RANGE-AP8152342

More information

Quantity required : 2

WASHER ISOLANTE (6X20X1. 5) EXHAUST OEM PIAGGIO COMMON A LA RANGE-AP8221297-ISOLANTE

22
P2R reference P2R reference 72313
Maker reference Maker reference AP8221297

WASHER ISOLANTE (6X20X1. 5) EXHAUST OEM PIAGGIO COMMON A LA RANGE-AP8221297-ISOLANTE

More information

Quantity required : 4

AP8152489 - GOMMINO PASSACAVO

23
P2R reference P2R reference 51042
Maker reference Maker reference AP8152489

AP8152489-GOMMINO PASSACAVO

More information

Quantity required : 2

WASHER PLATE (6. 6X18X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150015

24
P2R reference P2R reference 71808
Maker reference Maker reference AP8150015

WASHER PLATE (6. 6X18X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150015

More information

Quantity required : 2

853355 - LAMBDA SENSOR

25
P2R reference P2R reference 39768
Maker reference Maker reference 853355

853355 - LAMBDA SENSOR

More information

Quantity required : 1

HOSE CLAMP NYLON TYPE RILSAN 4, 5X280MM OEM PIAGGIO COMMON A LA RANGE-AP8120657

26
P2R reference P2R reference 71411
Maker reference Maker reference AP8120657

HOSE CLAMP NYLON TYPE RILSAN 4, 5X280MM OEM PIAGGIO COMMON A LA RANGE-AP8120657

More information

Quantity required : 1

HOSE CLAMP NYLON TYPE RILSAN 4, 5X180MM OEM PIAGGIO COMMON A LA RANGE-AP8120416

27
P2R reference P2R reference 71394
Maker reference Maker reference AP8120416

HOSE CLAMP NYLON TYPE RILSAN 4, 5X180MM OEM PIAGGIO COMMON A LA RANGE-AP8120416

More information

Quantity required : 1

WASHER PLATE (6. 4X15X1) OEM PIAGGIO COMMON A LA RANGE-AP8152181

28
P2R reference P2R reference 71927
Maker reference Maker reference AP8152181

WASHER PLATE (6. 4X15X1) OEM PIAGGIO COMMON A LA RANGE-AP8152181

More information

Quantity required : 2
