Vehicle Exploded View - GILERA NEXUS 500 E3 2006-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

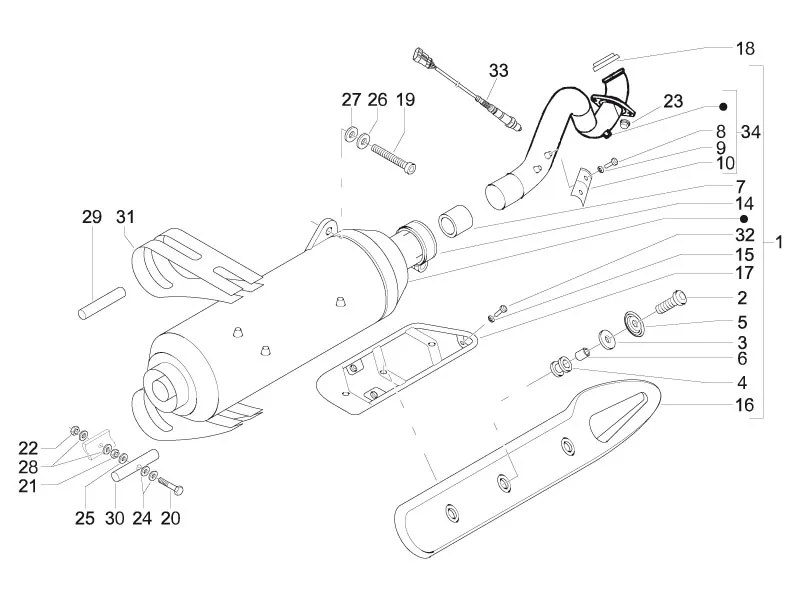

Moteur : 01.42 SILENCIEUX
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/185/Nexus_500_E3_2006-2008-087.png)
1 |
8467535 - POT D'ECHAPPEMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/9/8/img/69098.jpg)
2 |
SCREW BTR HEAD BOMBEE (6X20) OEM PIAGGIO COMMON A LA RANGE-834038 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/2/9/1/0/img/92910.jpg)
3 |
WASHER PLATE (6X21) OEM PIAGGIO COMMON A LA RANGE-834039 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/2/9/1/1/img/92911.jpg)
4 |
GUIDE CABLES OEM PIAGGIO COMMON A LA RANGE-834040 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/2/9/1/7/img/92917.jpg)
5 |
WASHER CUVETTE EXHAUST OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 400-500 CC-834643 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/2/9/1/2/img/92912.jpg)
6 |
SPACER (7X10X6. 5) OEM PIAGGIO COMMON A LA RANGE-834041 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/5/8/img/70558.jpg)
7 |
GASKET EXHAUST OEM PIAGGIO 350 BEVERLY, X10, 400-500 MP3, BEVERLY, X-EVO/APRILIA 400-500 ATLANTIC, SCARABEO, 850 SRV, MANA/GILERA 500 NEXUS, FUOCO, 850 GP-8749465 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/7/0/img/69070.jpg)
8 |
SCREW BTR HEAD BOMBEE (6X10) OEM PIAGGIO COMMON A LA RANGE-833569 More informationQuantity required : 2 |
||||||
|
9 |
840782-SPRING More informationQuantity required : 2 |
||||||
|
10 |
840263-PROTECTOR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/5/9/img/70559.jpg)
14 |
CLAMP EXHAUST OEM PIAGGIO COMMON A LA RANGE MAXISCOOTEUR 350-400-500/MOTO-GUZZI V7, V9/GILERA GP 800/APRILIA 850 SRV-874957 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/3/2/img/69132.jpg)
15 |
WASHER CRANTEE (6. 1X14X2. 1) OEM PIAGGIO COMMON A LA RANGE-834951 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/3/0/8/6/img/93086.jpg)
16 |
PROTECTOR DE SILENCER EXHAUST PLASTIQUE OEM PIAGGIO 400 BEVERLY 2006 >, X8 2004 >, 500 MP3 2010 >/GILERA 500 NEXUS 2006 > BLACK-849829 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/3/0/4/5/img/93045.jpg)
17 |
BRACKET PROTECTOR DE SILENCER EXHAUST PLASTIQUE OEM PIAGGIO 400 BEVERLY 2006 >, X8 2004 >, 500 MP3 2010 >/GILERA 500 NEXUS 2006 >-846757 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/3/2/img/68732.jpg)
18 |
GASKET EXHAUST ON CYLINDER HEAD OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 400-500-828194 More informationQuantity required : 1 |
||||||
|
19 |
842003-SCREW More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/7/2/img/67372.jpg)
20 |
SCREW TORX (8X30) HEAD BOMBEE OEM PIAGGIO COMMON A LA RANGE-599208 More informationQuantity required : 1 |
||||||
|
21 |
NUT (M8) OEM PIAGGIO COMMON A LA RANGE-B011531 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/5/5/img/65455.jpg)
22 |
NUT (M8) OEM PIAGGIO COMMON A TOUTE LA RANGE-020008 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/7/9/img/65379.jpg)
23 |
NUT FLANGE M8 MOUNTING EXHAUST OEM PIAGGIO COMMON ALA RANGE-015341 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/4/4/img/63844.jpg)
24 |
WASHER SPRING OEM PIAGGIO COMMON A LA RANGE-007608 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
25 |
WASHER PLATE (8, 4X15X1, 5) OEM PIAGGIO COMMON A LA RANGE-003058 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/0/7/img/69107.jpg)
26 |
WASHER (8, 2X16X2, 2) OEM PIAGGIO COMMON A TOUTE LA RANGE-834187 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/5/7/img/69157.jpg)
27 |
WASHER PLATE (8X22X3) OEM PIAGGIO COMMON A LA RANGE-840569 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/8/4/img/69384.jpg)
28 |
WASHER PLATE (8X18X2) OEM PIAGGIO COMMON A LA RANGE-846163 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/5/1/0/img/82510.jpg)
29 |
PIVOT OF FITTING KIT EXHAUST OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 400-500 CC-599391 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/5/1/1/img/82511.jpg)
30 |
NUT OF FITTING KIT EXHAUST OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 400-500 CC-599392 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/9/2/img/67392.jpg)
31 |
FLANGE FOR EXHAUST "PIAGGIO GENUINE PART" FOR ALL MAXISCOOTERS 400-500 CC -599533 More informationQuantity required : 1 |
||||||
|
32 |
SCREW BTR HEAD BOMBEE (6X10) OEM PIAGGIO COMMON A LA RANGE-833569 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/5/5/img/67855.jpg)
33 |
SONDA LAMBDA OEM PIAGGIO 125-300-350-400-500 MP3, BEVERLY, 125 YOURBAN, 125 VESPA GTS, 125-300 X10, X7, 400 X8, X-EVO/GILERA 125-300-500 NEXUS, 500 FUOCO/APRILIA 300-400-500 ATLANTIC-6398066 More informationQuantity required : 1 |
||||||
|
34 |
846758-MANIFOLD ECHAPP. More informationQuantity required : 1 |
