Vehicle Exploded View - GILERA NEXUS 500 E3 2006-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

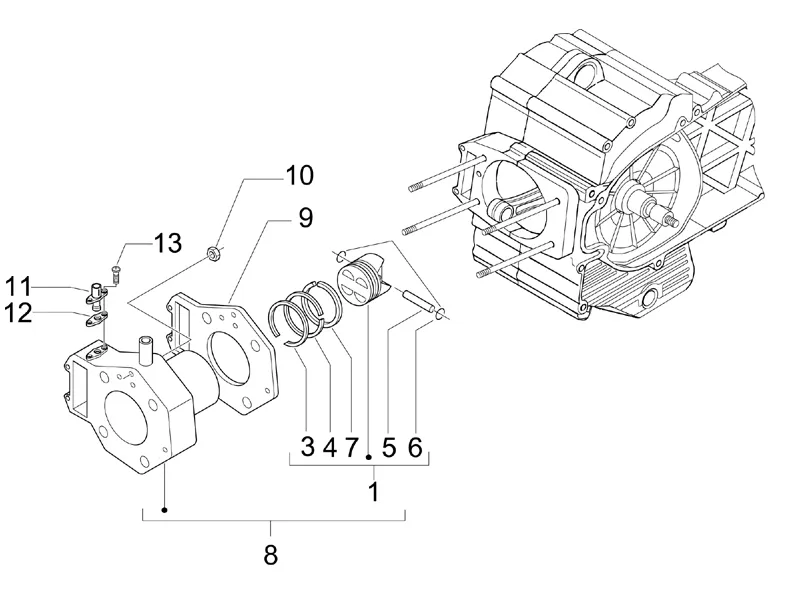

Moteur : 01.07 GROUPE CYLINDRE-PISTON-AXE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/185/Nexus_500_E3_2006-2008-036.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/2/0/img/69020.jpg)
1 |
8328120002 - GR.PISTON More informationQuantity required : 1 |
||||||
1 |
8328120003 - GR.PISTON More informationQuantity required : 1 |
||||||
|
1 |
8328120004 - GR.PISTON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/8/7/img/68687.jpg)
3 |
PISTON RING INTERMEDIAIRE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 500 CC 2008 <-827706 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/8/8/img/68688.jpg)
4 |
OIL SCRAPER PISTON RING- "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 500 CC -827707 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/9/8/img/68698.jpg)
5 |
SHAFT OF PISTON (D22) OEM PIAGGIO 500-530 MP3-827820 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/2/9/img/68729.jpg)
6 |
CIRCLIPS DE PISTON OEM PIAGGIO 500 MP3 2007 >-828116 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/1/7/img/69017.jpg)
7 |
PISTON RING DE LAMP OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 500 CC 2008 <-832770 More informationQuantity required : 1 |
||||||
|
8 |
CYLINDER/PISTON ASSEMBLY "PIAGGIO GENUINE PART" PIAGGIO 500 X9, BEVERLY/GILERA 500 NEXUS/APRILIA 500 ATLANTIC -832811 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/0/3/img/68903.jpg)
9 |
CYLINDER BASE GASKET DE CYLINDER (0, 8MM) NE PAS UTILSER WITH CASING CM3236014A/B OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 400-500-830275 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/0/4/img/68904.jpg)
9 |
CYLINDER BASE GASKET DE CYLINDER (0, 6MM) NE PAS UTILSER WITH CASING CM3236014A/B OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER 400-500-830276 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/0/5/img/68905.jpg)
9 |
CYLINDER BASE GASKET DE CYLINDER (0, 4MM) NE PAS UTILSER WITH CASING CM3236014A/B OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER 400-500-830277 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/8/7/img/66187.jpg)
10 |
NUT (M6) EXHAUST OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-288245 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/4/0/7/9/img/204079.jpg)
11 |
TENDEUR DE CHAIN DE TIMING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125 A 500 CC/MOTOS APRILIA-82650R More informationQuantity required : 1 |
||||||
|
11 |
TENDEUR DE CHAIN DE TIMING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125 A 500 CC/MOTOS APRILIA-82650R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/4/6/img/69546.jpg)
12 |
GASKET OF TENDEUR CHAIN DE TIMING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-847928 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/3/img/72723.jpg)
13 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-B016777 More informationQuantity required : 2 |
