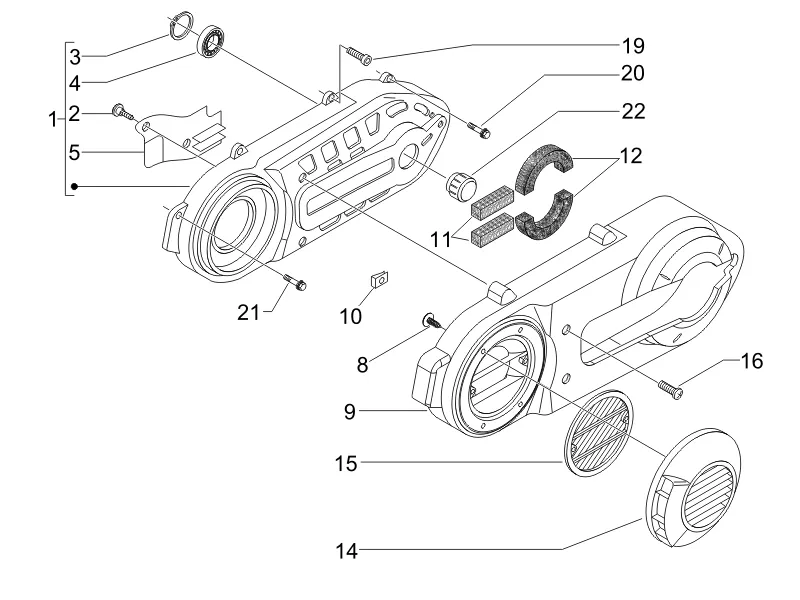

Vehicle Exploded View - GILERA NEXUS 500 E3 2006-2008 GILERA

Moteur : 01.15 COUVERCLE CARTER - REFOIDISSEMENT CARTER
Couvercle carter - Refoidissement carter
Search
COVER/COVER DE TRANSMISSION OEM PIAGGIO 400-500 MP3 2007 >, 400-500 BEVERLY 2005 >, 400 X-EVO 2007 >, 500 X10 2012 >, 500 X9 2003 >/GILERA 500 NEXUS 2006 >, FUOCO 2007 >-8769925

1
P2R reference P2R reference 70639
Maker reference Maker reference 8769925

COVER/COVER DE TRANSMISSION OEM PIAGGIO 400-500 MP3 2007 >, 400-500 BEVERLY 2005 >, 400 X-EVO 2007 >, 500 X10 2012 >, 500 X9 2003 >/GILERA 500 NEXUS 2006 >, FUOCO 2007 >-8769925

More information

Quantity required : 1

SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249

2
P2R reference P2R reference 67113
Maker reference Maker reference 575249

SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249

More information

Quantity required : 2

CLIPS/CIRCLIPS (35. 7X43. 5X1. 75) OEM PIAGGIO COMMON A LA RANGE-825667

3
P2R reference P2R reference 68559
Maker reference Maker reference 825667

CLIPS/CIRCLIPS (35. 7X43. 5X1. 75) OEM PIAGGIO COMMON A LA RANGE-825667

More information

Quantity required : 1

BEARING (17X40X12) COVER TRANSMISSION OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 350-400-500-840277

4
P2R reference P2R reference 69138
Maker reference Maker reference 840277

BEARING (17X40X12) COVER TRANSMISSION OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 350-400-500-840277

More information

Quantity required : 1

DEFLECTOR AIR CASING TRANSMISSION OEM PIAGGIO 500 MP3 2007 >-874136

5
P2R reference P2R reference 70520
Maker reference Maker reference 874136

DEFLECTOR AIR CASING TRANSMISSION OEM PIAGGIO 500 MP3 2007 >-874136

More information

Quantity required : 1

PROTECTION COUVERCLE TRANSMISSION

6
P2R reference P2R reference
Maker reference Maker reference 932005

PROTECTION COUVERCLE TRANSMISSION

SCREW CRUCIFORME (4X30) TARAUD OEM PIAGGIO COMMON A LA RANGE-478533

8
P2R reference P2R reference 66559
Maker reference Maker reference 478533

SCREW CRUCIFORME (4X30) TARAUD OEM PIAGGIO COMMON A LA RANGE-478533

More information

Quantity required : 3

COVER INSONORISANT DE TRANSMISSION OEM PIAGGIO 400-500 MP3, BEVERLY, 400 X8, X-EVO, 500 X9, X10/GILERA 500 FUOCO, NEXUS/APRILIA 400-500 ATLANTIC, SCARABEO-1A005445

9
P2R reference P2R reference 139592
Maker reference Maker reference 873533

COVER INSONORISANT DE TRANSMISSION OEM PIAGGIO 400-500 MP3, BEVERLY, 400 X8, X-EVO, 500 X9, X10/GILERA 500 FUOCO, NEXUS/APRILIA 400-500 ATLANTIC, SCARABEO-1A005445

More information

Quantity required : 1

WASHER/CLIPS DE BLOCAGE OEM PIAGGIO COMMON A TOUTE LA RANGE-085508

10
P2R reference P2R reference 74283
Maker reference Maker reference 085508

WASHER/CLIPS DE BLOCAGE OEM PIAGGIO COMMON A TOUTE LA RANGE-085508

More information

Quantity required : 2

MOUSSE INSONORISANTE CASING DE TRANSMISSION OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 400-500-833320

11
P2R reference P2R reference 69058
Maker reference Maker reference 833320

MOUSSE INSONORISANTE CASING DE TRANSMISSION OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 400-500-833320

More information

Quantity required : 2

MOUSSE INSONORISANTE CASING DE TRANSMISSION OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 400-500-833321

12
P2R reference P2R reference 69059
Maker reference Maker reference 833321

MOUSSE INSONORISANTE CASING DE TRANSMISSION OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 400-500-833321

More information

Quantity required : 2

PROTECTOR/PAD COVER DE TRANSMISSION OEM PIAGGIO 400 MP3, X-EVO, X8, 500 MP3, X10/GILERA 500 NEXUS, FUOCO-842013

13
P2R reference P2R reference 92956
Maker reference Maker reference 842013

PROTECTOR/PAD COVER DE TRANSMISSION OEM PIAGGIO 400 MP3, X-EVO, X8, 500 MP3, X10/GILERA 500 NEXUS, FUOCO-842013

More information

Quantity required : 1

975681 - COUVERCLE RAFRR.

14
P2R reference P2R reference 94301
Maker reference Maker reference 975681

975681 - COUVERCLE RAFRR.

More information

Quantity required : 1

GRILLE COVER DE TRANSMISSION OEM PIAGGIO 400-500 MP3, 400 X8, X-EVO/GILERA 500 NEXUS, 500 FUOCO-975684

15
P2R reference P2R reference 94302
Maker reference Maker reference 975684

GRILLE COVER DE TRANSMISSION OEM PIAGGIO 400-500 MP3, 400 X8, X-EVO/GILERA 500 NEXUS, 500 FUOCO-975684

More information

Quantity required : 1

SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249

16
P2R reference P2R reference 67113
Maker reference Maker reference 575249

SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249

More information

Quantity required : 4

SCREW FLANGE TH (6X40) OEM PIAGGIO COMMON A LA RANGE-1A011120

19
P2R reference P2R reference 151716
Maker reference Maker reference 1A011120

SCREW FLANGE TH (6X40) OEM PIAGGIO COMMON A LA RANGE-1A011120

More information

Quantity required : 7

SCREW FLANGE TH (6X40) OEM PIAGGIO COMMON A LA RANGE-1A011120

19
P2R reference P2R reference 151716
Maker reference Maker reference B016763

SCREW FLANGE TH (6X40) OEM PIAGGIO COMMON A LA RANGE-1A011120

More information

Quantity required : 7

SCREW FLANGE TH (8X70) OEM PIAGGIO COMMON A LA RANGE-B016766

20
P2R reference P2R reference 72716
Maker reference Maker reference B016766

SCREW FLANGE TH (8X70) OEM PIAGGIO COMMON A LA RANGE-B016766

More information

Quantity required : 2

SCREW FLANGE TH (8X100) OEM PIAGGIO COMMON A LA RANGE-B016767

21
P2R reference P2R reference 72717
Maker reference Maker reference B016767

SCREW FLANGE TH (8X100) OEM PIAGGIO COMMON A LA RANGE-B016767

More information

Quantity required : 2

COVER ROND DE CASING DE TRANSMISSION OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 400-500-840439

22
P2R reference P2R reference 69144
Maker reference Maker reference 840439

COVER ROND DE CASING DE TRANSMISSION OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 400-500-840439

More information

Quantity required : 1

242364 - ELASTIC RING

23
P2R reference P2R reference 65985
Maker reference Maker reference 242364

242364-ELASTIC RING

More information

Quantity required : 1
