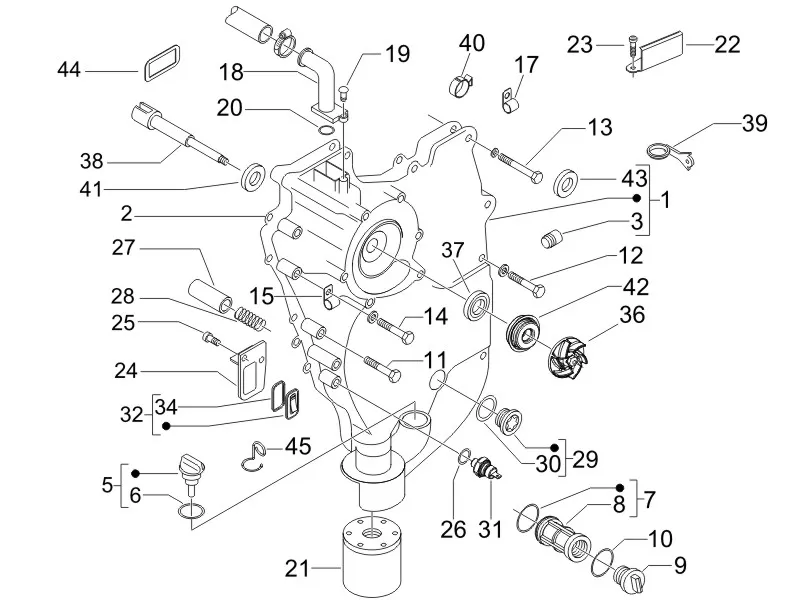

Vehicle Exploded View - GILERA NEXUS 500 E3 2006-2008

	P2R reference	125593
	Maker reference	8725685

WATER PUMP COMPLETE OEM PIAGGIO 500 BEVERLY, X9, 400 X8/GILERA 500 NEXUS/APRILIA 400, 500 SCARABEO, ATLANTIC-8725685

	P2R reference	69538
	Maker reference	847649

GASKET OF CASING WATER PUMP OEM PIAGGIO 400 X8, X-EVO, BEVERLY, 500 X9/GILERA 500 NEXUS/APRILIA 400-500 SCARABEO-847649

	P2R reference	72673
	Maker reference	B015433

CAP (M12X1. 5X11) OEM PIAGGIO COMMON A LA RANGE-B015433

	P2R reference	70548
	Maker reference	874707

CAP D'HUILE/JAUGE A OIL MANUELLE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 400-500 CC-874707

	P2R reference	158280
	Maker reference	1A009397

O-RING OEM PIAGGIO COMMON A LA RANGE-1A009397

	P2R reference	158280
	Maker reference	479986

O-RING OEM PIAGGIO COMMON A LA RANGE-1A009397

	P2R reference	68577
	Maker reference	826033

CREPINE OIL FILTER MAXI SCOOTER OEM PIAGGIO 400-500 MP3 2007 >, BEVERLY 2005 >, 400 X8 2004 >, X-EVO 2007 >, 500 X10 2012 >, X9 2003 >/GILERA 500 FUOCO, NEXUS 2005 >/APRILIA 400-500 ATLANTIC 2003 >-826033

	P2R reference	66191
	Maker reference	288474

GASKET OF CREPINE D'HUILE OEM PIAGGIO 125-250-300 X7, X8, X-EVO, X9, BEVERLY, MP3, FLY, VESPA GTS VESPA LX, VESPA PRIMAVERA/APRILIA 50-125 SR-MOTARD, SPORT-CITY/GILERA 500 FUOCO-288474

	P2R reference	68589
	Maker reference	826165

COVER DE CREPINE D'HUILE OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER-826165

	P2R reference	66149
	Maker reference	285536

GASKET CAP DE VIDANGE (Ø31, 47X1, 78MM) OEM PIAGGIO 125-250-400-500 MP3, BEVERLY, X-EVO, X8, X9, 125 FLY, 125-500 X10/GILERA 125-500 NEXUS/APRILIA 125-400-500 ATLANTIC, SCARABEO-285536

	P2R reference	66452
	Maker reference	434429

434429-SCREW

	P2R reference	72720
	Maker reference	B016774

SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774

	P2R reference	66367
	Maker reference	414838

SCREW FLANGE TH (6X35) OEM PIAGGIO COMMON A LA RANGE-414838

	P2R reference	72769
	Maker reference	B017632

SCREW FLANGE TH (6X45) OEM PIAGGIO COMMON A LA RANGE-B017632

	P2R reference	67914
	Maker reference	641201

641201-SPRING

	P2R reference	69377
	Maker reference	845978

CLAMP MOUNTING WIRING OU HOSE OUVERT OEM PIAGGIO COMMON A LA RANGE-845978

	P2R reference	68811
	Maker reference	829047

CONDUITE DE PURGE OEM PIAGGIO 500 BEVERLY, MP3, X9, X10-829047

	P2R reference	127167
	Maker reference	1A003109

SCREW CRUCIFORME (5X16) OEM PIAGGIO COMMON A LA RANGE-1A003109

	P2R reference	65977
	Maker reference	237553

O-RING (15X17X1. 5) OEM PIAGGIO COMMON A LA RANGE-237553

	P2R reference	68859
	Maker reference	82960R

OIL FILTER MAXI SCOOTER OEM PIAGGIO 400-500 MP3, X8, X9, X10, BEVERLY/GILERA 500 NEXUS, FUOCO, GP800/APRILIA SCARABEO, ATLANTIC, 1200 CAPONORD, DORSODURO, SHIVER, SRV 850-1A024459R

	P2R reference	68941
	Maker reference	830886

830886-PLATE

	P2R reference	109024
	Maker reference	1A003111

SCREW CRUCIFORME (5X10) OEM PIAGGIO COMMON A LA RANGE-1A003111

	P2R reference	70596
	Maker reference	876060

SHEET METAL DE RETENUE DE VALVE OIL OEM PIAGGIO 500-530 BEVERLY, MP3-876060

	P2R reference	66440
	Maker reference	433800

SCREW CRUCIFORME (5X10) OEM PIAGGIO COMMON A LA RANGE-433800

	P2R reference	66703
	Maker reference	486075

GASKET OF MANO OU DE VIDANGE OEM PIAGGIO COMMON A LA RANGE-486075

	P2R reference	68864
	Maker reference	829661

VALVE OF PRESSURE OIL OEM PIAGGIO COMMON A LA RANGE-829661

	P2R reference	68848
	Maker reference	829486

SPRING OEM PIAGGIO COMMON A LA RANGE-829486

	P2R reference	68810
	Maker reference	8290405

CAP CONTROLE DE CALLAGE ON CASING WATER PUMP OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-8290405

	P2R reference	158280
	Maker reference	479986

O-RING OEM PIAGGIO COMMON A LA RANGE-1A009397

	P2R reference	158280
	Maker reference	1A009397

O-RING OEM PIAGGIO COMMON A LA RANGE-1A009397

	P2R reference	67933
	Maker reference	641541

SENSOR PRESSION D'HUILE OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER ET MOTO (PREVOIR ADAPTATEUR 99327 FOR 1200 GRISO, NORGE, STELVIO, SPORT)-1A024308R

	P2R reference	68695
	Maker reference	82778R

CLAPET/VALVE OIL CASING ENGINE OEM PIAGGIO COMMON A LA RANGE-82778R

	P2R reference	68695
	Maker reference	82778R

CLAPET/VALVE OIL CASING ENGINE OEM PIAGGIO COMMON A LA RANGE-82778R

	P2R reference	151528
	Maker reference	827929

TURBINE OF PUMP A WATER OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 400-500-1A002345

	P2R reference	151528
	Maker reference	1A002345

TURBINE OF PUMP A WATER OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 400-500-1A002345

	P2R reference	66925
	Maker reference	497486

OIL SEAL OF PUMP A WATER OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 400-500 CC-497486

	P2R reference	68751
	Maker reference	828394

SHAFT WATER PUMP OEM PIAGGIO 400 X8 2004 >, BEVERLY 2006 >, 500 X9 2003 >, BEVERLY 2005 >/GILERA 500 NEXUS 2005 >/APRILIA 400 ATLANTIC, SCARABEO 2005 >, 500 ATLANTIC 2001 >, SCARABEO 2003 >-828394

	P2R reference	86042
	Maker reference	640880

640880-BRACKET

	P2R reference	93085
	Maker reference	849825

849825-CLAMP

	P2R reference	68857
	Maker reference	829557

WASHER SHAFT OF WATER PUMP OEM PIAGGIO APRILIA ATLANTIC 500 2001 > 2008/GILERA NEXUS 500 2006 > 2008/PIAGGIO X9 500 1998 > 2007-829557

	P2R reference	66925
	Maker reference	497486

OIL SEAL OF PUMP A WATER OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 400-500 CC-497486

	P2R reference	68550
	Maker reference	825577

OIL SEAL 8X16X7 RECEPTEUR CLUTCH OEM PIAGGIO APRILIA 750 DORSODURO, SHIVER-825577

	P2R reference	93083
	Maker reference	849816

849816-GARNITURE
