Vehicle Exploded View - GILERA NEXUS 500 E3 2006-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

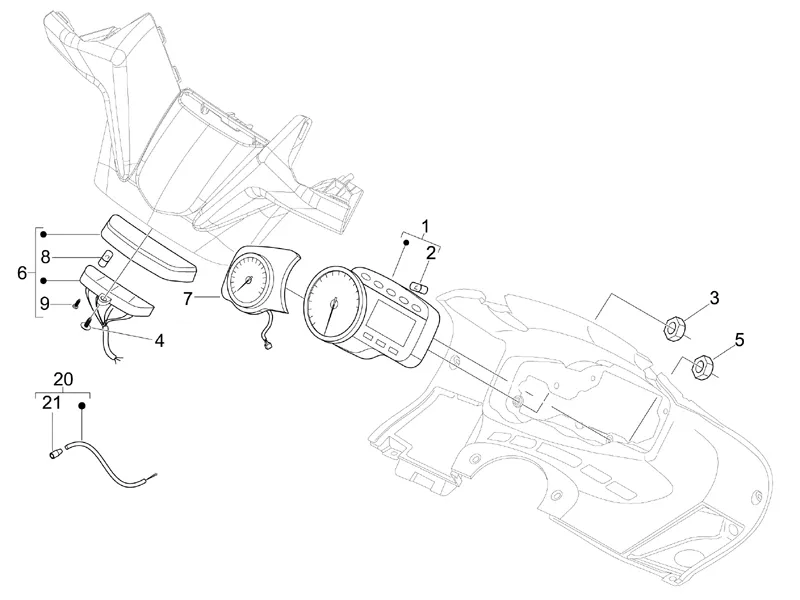

Guidon/direction : 03.02 GROUPE INSTRUMENTS - CRUSCOTTO
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/185/Nexus_500_E3_2006-2008-183.png)
1 |
640496 - GROUPE INSTRUMENT More informationQuantity required : 1 |
||||||
|
2 |
640033-GR. INSTRUMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/9/9/8/img/85998.jpg)
2 |
COMPTE TOUR OEM PIAGGIO GILERA 125-250-300-500 NEXUS-640617 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/8/7/img/66187.jpg)
3 |
NUT (M6) EXHAUST OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-288245 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/1/img/66301.jpg)
4 |
SCREW OF FAIRING (3, 5X13) OEM PIAGGIO COMMON A TOUTE LA RANGE-297498 More informationQuantity required : 3 |
||||||
|
5 |
NUT (M6) EXHAUST OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-288245 More informationQuantity required : 3 |
||||||
|
6 |
639765 - TEMOIN CLIGNOTANTS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/2/img/65742.jpg)
7 |
HOSE CLAMP NYLON TYPE RILSAN 180 MM OEM PIAGGIO COMMON A LA RANGE-145298 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/6/0/img/65760.jpg)
8 |
AMPOULE/LAMPE 12V 1, 2W CULOT W2X4. 6D BULB T5 TEMOIN WHITE OEM PIAGGIO COMMON A LA RANGE-164634 More informationQuantity required : 3 |
||||||
|
9 |
SCREW OF FAIRING (3, 5X13) OEM PIAGGIO COMMON A TOUTE LA RANGE-297498 More informationQuantity required : 3 |
