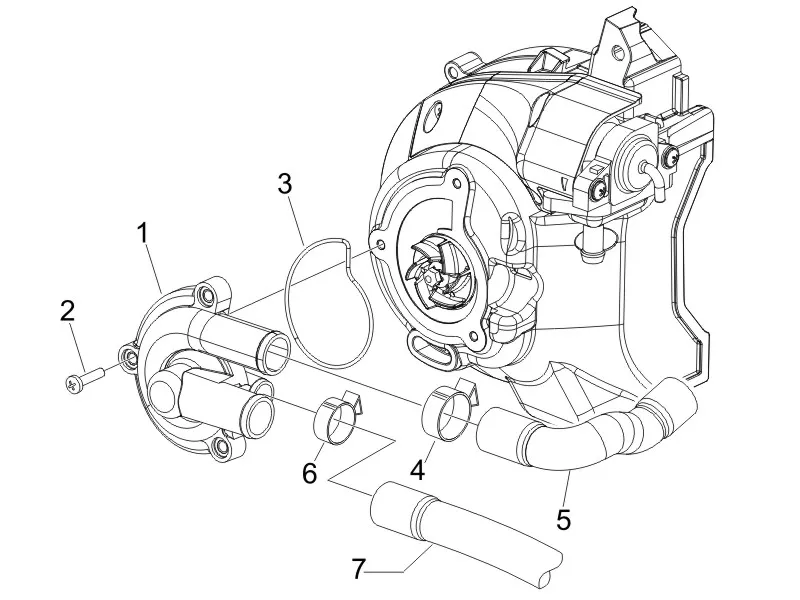

Vehicle Exploded View - GILERA NEXUS 125 E3 2007-2008 GILERA

Moteur : 01.19 POMPE À EAU
Pompe à eau
Search
COVER WATER PUMP (3 DURITES) OEM PIAGGIO 125-250-300 MP3, X7, 125-250 X9, X-EVO, BEVERLY, VESPA GTS/GILERA 125-250-300 NEXUS/APRILIA 125-250-300 ATLANTIC (COMPATIBLE WITH 8482585)-877528

1
P2R reference P2R reference 70666
Maker reference Maker reference 877528

COVER WATER PUMP (3 DURITES) OEM PIAGGIO 125-250-300 MP3, X7, 125-250 X9, X-EVO, BEVERLY, VESPA GTS/GILERA 125-250-300 NEXUS/APRILIA 125-250-300 ATLANTIC (COMPATIBLE WITH 8482585)-877528

More information

Quantity required : 1

1A002998 - VIS M5X22

2
P2R reference P2R reference 139385
Maker reference Maker reference 1A002998

1A002998-SCREW M5X22

More information

Quantity required : 3

O RING OF WATER PUMP OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300-485080

3
P2R reference P2R reference 66671
Maker reference Maker reference 485080

O RING OF WATER PUMP OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300-485080

More information

Quantity required : 1

CLAMP HOSE COOLING (30MM) OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300-CM001922

4
P2R reference P2R reference 72881
Maker reference Maker reference CM001922

CLAMP HOSE COOLING (30MM) OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300-CM001922

More information

Quantity required : 2

HOSE DE COOLING PUMP-CYLINDER OEM PIAGGIO 125 MP3 2007 >, BEVERLY 2005 >, X8 2004 >, X9 2003 >, X10 2012 >, X-EVO 2007 >, VESPA GTS 2007 >/GILERA 125 NEXUS 2007 >, RUNNER 4T 2005 >-878666

5
P2R reference P2R reference 70690
Maker reference Maker reference 878666

HOSE DE COOLING PUMP-CYLINDER OEM PIAGGIO 125 MP3 2007 >, BEVERLY 2005 >, X8 2004 >, X9 2003 >, X10 2012 >, X-EVO 2007 >, VESPA GTS 2007 >/GILERA 125 NEXUS 2007 >, RUNNER 4T 2005 >-878666

More information

Quantity required : 1

HOSE COOLING (WITH DEVIATION VERS CARBU) OEM PIAGGIO 125 MP3 2007 >, BEVERLY 2005 >, X8 2004 >, X9 2003 >, X10 2012 >, X-EVO 2007 >, VESPA GTS 2007 >/GILERA 125 NEXUS 2007 >, RUNNER 4T-848434

6
P2R reference P2R reference 69569
Maker reference Maker reference 848434

HOSE COOLING (WITH DEVIATION VERS CARBU) OEM PIAGGIO 125 MP3 2007 >, BEVERLY 2005 >, X8 2004 >, X9 2003 >, X10 2012 >, X-EVO 2007 >, VESPA GTS 2007 >/GILERA 125 NEXUS 2007 >, RUNNER 4T-848434

More information

Quantity required : 1

CLAMP HOSE (19. 8MM) OEM PIAGGIO COMMON A TOUTE LA RANGE-CM001904

6
P2R reference P2R reference 72866
Maker reference Maker reference CM001904

CLAMP HOSE (19. 8MM) OEM PIAGGIO COMMON A TOUTE LA RANGE-CM001904

More information

Quantity required : 1

HOSE COOLING (WITH DEVIATION VERS CARBU) OEM PIAGGIO 125 MP3 2007 >, BEVERLY 2005 >, X8 2004 >, X9 2003 >, X10 2012 >, X-EVO 2007 >, VESPA GTS 2007 >/GILERA 125 NEXUS 2007 >, RUNNER 4T-848434

7
P2R reference P2R reference 69569
Maker reference Maker reference 848434

HOSE COOLING (WITH DEVIATION VERS CARBU) OEM PIAGGIO 125 MP3 2007 >, BEVERLY 2005 >, X8 2004 >, X9 2003 >, X10 2012 >, X-EVO 2007 >, VESPA GTS 2007 >/GILERA 125 NEXUS 2007 >, RUNNER 4T-848434

More information

Quantity required : 1

CLAMP HOSE (19. 8MM) OEM PIAGGIO COMMON A TOUTE LA RANGE-CM001904

7
P2R reference P2R reference 72866
Maker reference Maker reference CM001904

CLAMP HOSE (19. 8MM) OEM PIAGGIO COMMON A TOUTE LA RANGE-CM001904

More information

Quantity required : 1
