Vehicle Exploded View - GILERA NEXUS 125 E3 2007-2008 GILERA

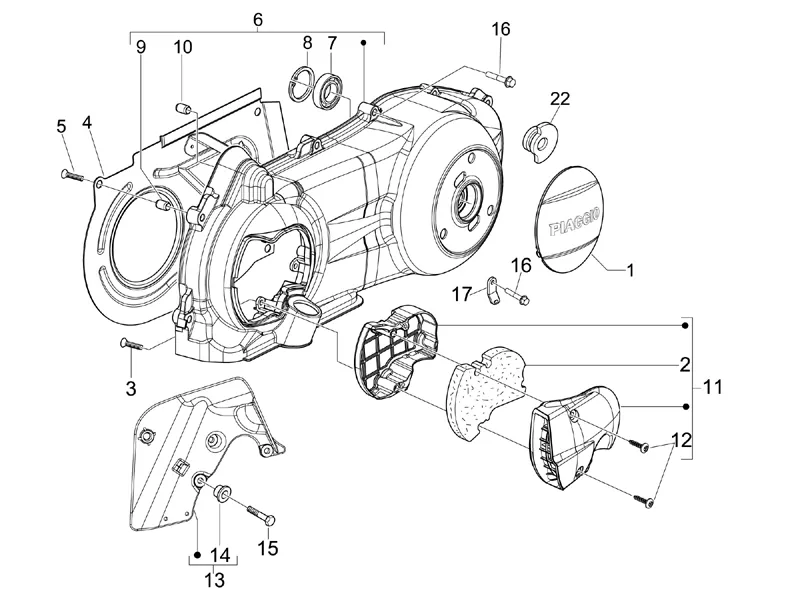

Moteur : 01.15 COUVERCLE CARTER - REFOIDISSEMENT CARTER
Couvercle carter - Refoidissement carter
Search
CM155102 - COUVERCLE

1
P2R reference P2R reference 73295
Maker reference Maker reference CM155102

CM155102-COVER

More information

Quantity required : 1

AIR FILTER CASING DE TRANSMISSION OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-842093

2
P2R reference P2R reference 69213
Maker reference Maker reference 842093

AIR FILTER CASING DE TRANSMISSION OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-842093

More information

Quantity required : 1

SCREW AUTOTARAUDEUSE (3. 85X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-270793

3
P2R reference P2R reference 66092
Maker reference Maker reference 270793

SCREW AUTOTARAUDEUSE (3. 85X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-270793

More information

Quantity required : 3

AIR DEFLECTOR 125CC -873682-

4
P2R reference P2R reference 70499
Maker reference Maker reference 873682

DIAPHRAGME FOR AIR CHAUD 125CC-873682

More information

Quantity required : 1

SCREW CRUCIFORME (5X12) OEM PIAGGIO COMMON A LA RANGE-430264

5
P2R reference P2R reference 66376
Maker reference Maker reference 430264

SCREW CRUCIFORME (5X12) OEM PIAGGIO COMMON A LA RANGE-430264

More information

Quantity required : 4

COVER DE TRANSMISSION OEM PIAGGIO 125 MP3, BEVERLY, X7, X8, X9, X-EVO, VESPA GTS/APRILIA 125 ATLANTIC 2013 <-8413805

6
P2R reference P2R reference 69187
Maker reference Maker reference 8413805

COVER DE TRANSMISSION OEM PIAGGIO 125 MP3, BEVERLY, X7, X8, X9, X-EVO, VESPA GTS/APRILIA 125 ATLANTIC 2013 <-8413805

More information

Quantity required : 1

BEARING (15X35X11) OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER 125-250-300-4789853

7
P2R reference P2R reference 66571
Maker reference Maker reference 4789853

BEARING (15X35X11) OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER 125-250-300-4789853

More information

Quantity required : 1

CIRCLIPS (D = 38) OEM PIAGGIO COMMON A TOUTE LA RANGE-006635

8
P2R reference P2R reference 63823
Maker reference Maker reference 006635

CIRCLIPS (D = 38) OEM PIAGGIO COMMON A TOUTE LA RANGE-006635

More information

Quantity required : 1

BUSH DE CENTRAGE (9, 5X15) CASING OEM PIAGGIO COMMON ALA RANGE-B015956

9
P2R reference P2R reference 72696
Maker reference Maker reference B015956

BUSH DE CENTRAGE (9, 5X15) CASING OEM PIAGGIO COMMON ALA RANGE-B015956

More information

Quantity required : 2

BUSH/BUSH BRONZE 8X12X8 OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-431860

10
P2R reference P2R reference 66417
Maker reference Maker reference 431860

BUSH/BUSH BRONZE 8X12X8 OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-431860

More information

Quantity required : 1

842090 - COUVERCLE

11
P2R reference P2R reference 69212
Maker reference Maker reference 842090

842090-COVER

More information

Quantity required : 1

SCREW AUTOTARAUDEUSE (3X20) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-258146

12
P2R reference P2R reference 66025
Maker reference Maker reference 258146

SCREW AUTOTARAUDEUSE (3X20) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-258146

More information

Quantity required : 2

652802 - PARATIA COMPLE

13
P2R reference P2R reference 68198
Maker reference Maker reference 652802

652802-PARATIA COMPLE

More information

Quantity required : 1

BUSH EN T (D5) MOLETEE CENTRAGE BOX A AIR OEM PIAGGIO COMMON A LA RANGE-830056

14
P2R reference P2R reference 68888
Maker reference Maker reference 830056

BUSH EN T (D5) MOLETEE CENTRAGE BOX A AIR OEM PIAGGIO COMMON A LA RANGE-830056

More information

Quantity required : 3

SCREW FLANGE TH (6X35) OEM PIAGGIO COMMON A LA RANGE-414838

15
P2R reference P2R reference 66367
Maker reference Maker reference 414838

SCREW FLANGE TH (6X35) OEM PIAGGIO COMMON A LA RANGE-414838

More information

Quantity required : 2

SCREW FLANGE TH (6X30) OEM PIAGGIO COMMON A TOUTE LA RANGE-B016792

16
P2R reference P2R reference 72725
Maker reference Maker reference B016792

SCREW FLANGE TH (6X30) OEM PIAGGIO COMMON A TOUTE LA RANGE-B016792

More information

Quantity required : 10

CLAMP OF FITTING KIT GUIDE CABLE OEM PIAGGIO COMMON A LA RANGE-844964

17
P2R reference P2R reference 69338
Maker reference Maker reference 844964

CLAMP OF FITTING KIT GUIDE CABLE OEM PIAGGIO COMMON A LA RANGE-844964

More information

Quantity required : 1

BUFFER/INSERT ARRET MOUNTING COVER TRANMISSION OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-871458

22
P2R reference P2R reference 70378
Maker reference Maker reference 871458

BUFFER/INSERT ARRET MOUNTING COVER TRANMISSION OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-871458

More information

Quantity required : 3
