Vehicle Exploded View - GILERA NEXUS 125 E3 2007-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

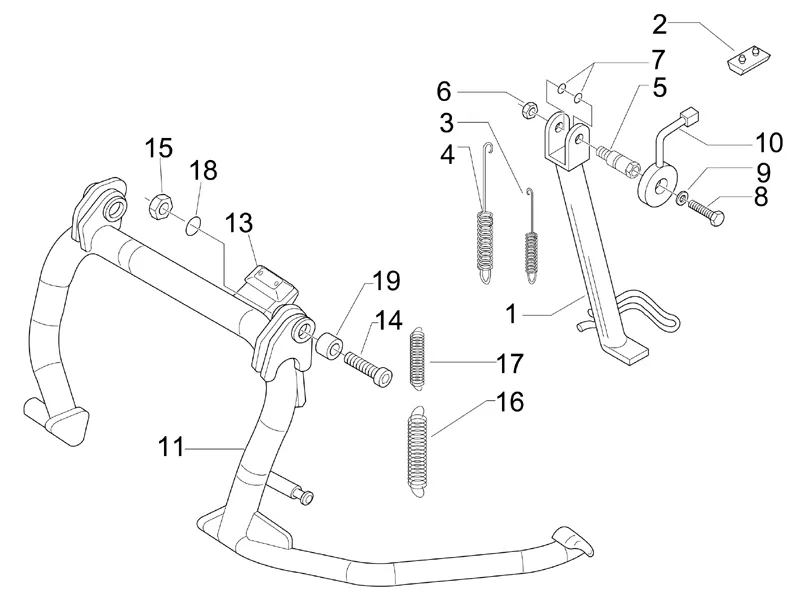

Châssis - parties plastiques - carrosseries : 02.25 BÉQUILLE/S
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/177/Nexus_125_E3_2007-2008-099.png)
1 |
647473-STAND LAT. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/6/8/img/67268.jpg)
2 |
BUFFER DE STAND OEM PIAGGIO COMMON LA RANGE SCOOTER ET MAXI SCOOTER-582885 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/8/6/img/66286.jpg)
3 |
SPRING DE STAND OEM PIAGGIO COMMON A TOUTE LA RANGE-295788 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/8/7/img/66287.jpg)
4 |
SPRING DE STAND LATERAL OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-295789 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/4/0/5/8/img/154058.jpg)
5 |
SCREW OF MOUNTING SIDE STAND OEM PIAGGIO BEVERLY, X9, X10, 50-125 LIBERTY CORPORATE 2017 > 2019-1C001480 More informationQuantity required : 1 |
||||||
|
5 |
SCREW OF MOUNTING SIDE STAND OEM PIAGGIO BEVERLY, X9, X10, 50-125 LIBERTY CORPORATE 2017 > 2019-1C001480 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/5/img/63765.jpg)
6 |
NUT AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-002440 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/1/2/img/65812.jpg)
7 |
O-RING SIDE STAND OEM PIAGGIO 400-500 MP3, BEVERLY, 400 X8, X-EVO, 500 X10, X9/GILERA 500 NEXUS, FUOCO, GP 800/APRILIA 400-500 ATLANTIC, SCARABEO, 850 SRV-191189 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/5/7/img/66257.jpg)
8 |
SCREW BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-2928896 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/4/img/65344.jpg)
9 |
WASHER EVENTAIL (5X10) OEM PIAGGIO COMMON A LA RANGE-012532 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/3/7/img/67837.jpg)
10 |
CONTACTEUR DE SIDE STAND OEM PIAGGIO COMMON A TOUTE LA RANGE-639542 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/6/0/img/67060.jpg)
11 |
CENTER STAND "PIAGGIO GENUINE PART" 125 X9 2005>/GILERA 125-250-300 NEXUS 2007>/APRILIA 125-300 SR-MAX 2011> -56449R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/1/9/6/img/146196.jpg)
13 |
BUFFER DE CENTRE STAND OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-1C002702 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/2/5/img/65625.jpg)
14 |
SCREW TH (10X130) DE CENTRE STAND OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-030115 More informationQuantity required : 1 |
||||||
|
15 |
NUT AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-002440 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/6/7/img/67267.jpg)
16 |
SPRING DE CENTRE STAND OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250 CC-582851 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/6/6/img/67266.jpg)
17 |
SPRING DE CENTRE STAND OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-582850 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/2/7/img/66127.jpg)
18 |
GASKET SHAFT OF STAND OEM PIAGGIO COMMON A LA RANGE-273754 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/5/1/img/67251.jpg)
19 |
SPACER DE STAND OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-582298 More informationQuantity required : 1 |
