Vehicle Exploded View - GILERA NEXUS 125 E3 2007-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

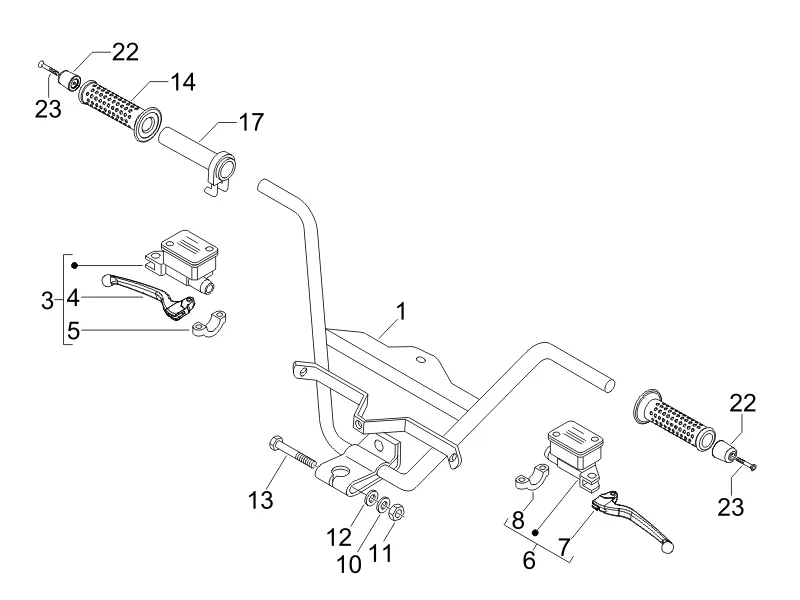

Guidon/direction : 03.06 GUIDON - MAÎTRE CYLINDRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/177/Nexus_125_E3_2007-2008-198.png)
1 |
6541634-HANDLEBAR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/9/9/1/8/img/79918.jpg)
3 |
BRAKE MASTER CYLINDER OEM PIAGGIO 125-250-300 LIBERTY, CARNABY/GILERA 125-250-300 NEXUS-56359R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/3/6/img/67436.jpg)
4 |
LEVER BRAKE MAXI SCOOTER OEM PIAGGIO 125-250-400-500 MP3, BEVERLY, X8 2004 > 2006, X-EVO 2007 >/GILERA 50-125 DNA, 125-250-300 NEXUS, 500 FUOCO LEFT/RIGHT (HENG-TONG)-600475 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/3/7/img/67437.jpg)
5 |
HALF CLAMP GRIP OEM PIAGGIO COMMON A LA RANGE-600478 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/9/9/2/1/img/79921.jpg)
6 |
BRAKE MASTER CYLINDER LEFT OEM PIAGGIO 125-250 BEVERLY 2005 >, 300 BEVERLY 2009 >, 125-250 CARNABY 2007 >/GILERA 125-250-300 NEXUS 2006 >, 500 FUOCO 2013 >/GILERA 50-125 DNA 2000 >-56360R More informationQuantity required : 1 |
||||||
|
7 |
LEVER BRAKE MAXI SCOOTER OEM PIAGGIO 125-250-400-500 MP3, BEVERLY, X8 2004 > 2006, X-EVO 2007 >/GILERA 50-125 DNA, 125-250-300 NEXUS, 500 FUOCO LEFT/RIGHT (HENG-TONG)-600475 More informationQuantity required : 1 |
||||||
|
8 |
HALF CLAMP GRIP OEM PIAGGIO COMMON A LA RANGE-600478 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/5/0/img/65350.jpg)
10 |
WASHER CRANTEE (10. 3X17X2) OEM PIAGGIO COMMON A LA RANGE-012543 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/7/8/img/65378.jpg)
11 |
NUT (M10) OEM PIAGGIO COMMON A LA RANGE-015330 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/2/0/img/109020.jpg)
12 |
WASHER PLATE (10X2. 5) OEM PIAGGIO COMMON A LA RANGE-1A000427 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/2/9/4/img/68294.jpg)
13 |
SCREW BTR (10X65) OEM PIAGGIO COMMON A LA RANGE-655554 More informationQuantity required : 1 |
||||||
|
14 |
583094 - POIGNEE D More informationQuantity required : 1 |
||||||
|
17 |
975633 - MANCHON COM.GAZ More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/6/5/img/68465.jpg)
22 |
HANDLEBAR END OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-673243 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/3/6/5/img/158365.jpg)
23 |
SCREW TORX HEAD FRAISEE (6X55) HANDLEBAR END OEM PIAGGIO COMMON A TOUTE LA RANGE-1B006376 More informationQuantity required : 2 |
||||||
|
23 |
SCREW TORX HEAD FRAISEE (6X55) HANDLEBAR END OEM PIAGGIO COMMON A TOUTE LA RANGE-1B006376 More informationQuantity required : 2 |
