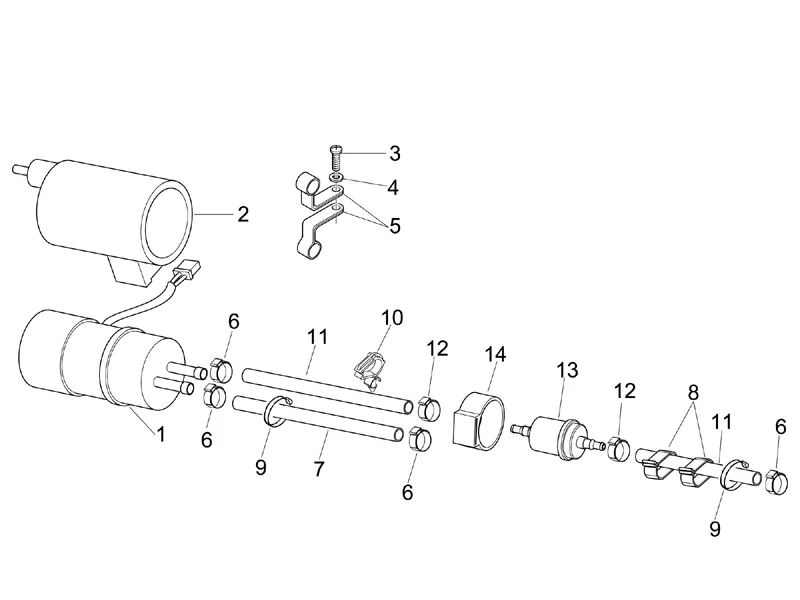

Vehicle Exploded View - GILERA NEXUS 125 E3 2007-2008 GILERA

Châssis - parties plastiques - carrosseries : 02.53 INSTALATION DE L'ALIMENTATION
Instalation de l'alimentation
Search
FUEL PUMP "PIAGGIO GENUINE PART" 125 MP3, X8, X9, X-EVO, GTS, LX, NEXUS -639861

1
P2R reference P2R reference 67860
Maker reference Maker reference 639861

FUEL PUMP "PIAGGIO GENUINE PART" 125 MP3, X8, X9, X-EVO, GTS, LX, NEXUS -639861

More information

Quantity required : 1

BRACKET OF PUMP ELECTRIC OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125 CC-654047

2
P2R reference P2R reference 68236
Maker reference Maker reference 654047

BRACKET OF PUMP ELECTRIC OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125 CC-654047

More information

Quantity required : 1

SCREW CRUCIFORME (5X16) OEM PIAGGIO COMMON A LA RANGE-1A003109

3
P2R reference P2R reference 127167
Maker reference Maker reference 1A003109

SCREW CRUCIFORME (5X16) OEM PIAGGIO COMMON A LA RANGE-1A003109

More information

Quantity required : 1

WASHER A TEETH (5, 3X10) OEM PIAGGIO COMMON A LA RANGE-012528

4
P2R reference P2R reference 65342
Maker reference Maker reference 012528

WASHER A TEETH (5, 3X10) OEM PIAGGIO COMMON A LA RANGE-012528

More information

Quantity required : 1

273779 - COLLIER

5
P2R reference P2R reference 66129
Maker reference Maker reference 273779

273779-CLAMP

More information

Quantity required : 2

CLAMP SERRE TUBE OEM PIAGGIO COMMON A LA RANGE-CM001901

6
P2R reference P2R reference 72863
Maker reference Maker reference CM001901

CLAMP SERRE TUBE OEM PIAGGIO COMMON A LA RANGE-CM001901

More information

Quantity required : 2

HOSE/FUEL HOSE OEM PIAGGIO COMMON A TOUTE LA RANGE (ROLLER DE 5M)-1R000160

7
P2R reference P2R reference 65919
Maker reference Maker reference 1R000160

HOSE/FUEL HOSE OEM PIAGGIO COMMON A TOUTE LA RANGE (ROLLER DE 5M)-1R000160

More information

Quantity required : 1

COLIIER PINCE OEM PIAGGIO COMMON A LA RANGE-CM006905

8
P2R reference P2R reference 72907
Maker reference Maker reference CM006905

COLIIER PINCE OEM PIAGGIO COMMON A LA RANGE-CM006905

More information

Quantity required : 2

HOSE CLAMP NYLON TYPE RILSAN 180 MM OEM PIAGGIO COMMON A LA RANGE-145298

9
P2R reference P2R reference 65742
Maker reference Maker reference 145298

HOSE CLAMP NYLON TYPE RILSAN 180 MM OEM PIAGGIO COMMON A LA RANGE-145298

More information

Quantity required : 2

CLAMP OEM PIAGGIO COMMON A LA RANGE-298729

10
P2R reference P2R reference 66307
Maker reference Maker reference 298729

CLAMP OEM PIAGGIO COMMON A LA RANGE-298729

More information

Quantity required : 1

HOSE/FUEL HOSE OEM PIAGGIO COMMON A TOUTE LA RANGE (ROLLER DE 5M)-1R000160

11
P2R reference P2R reference 65919
Maker reference Maker reference 1R000160

HOSE/FUEL HOSE OEM PIAGGIO COMMON A TOUTE LA RANGE (ROLLER DE 5M)-1R000160

More information

Quantity required : 2

CLAMP SERRE TUBE OEM PIAGGIO COMMON A LA RANGE-CM001901

12
P2R reference P2R reference 72863
Maker reference Maker reference CM001901

CLAMP SERRE TUBE OEM PIAGGIO COMMON A LA RANGE-CM001901

More information

Quantity required : 2

FUEL FILTER OEM PIAGGIO 125 MP3 2007 >, X7 2008 >, X8 2004 >, X9 2003 >, X-EVO 2007 >, VESPA GTS 2007 > 50 FLY 4T 2005 >/GILERA 125 NEXUS 2007 >, RUNNER 2004 > 50 RUNNER PURE-JET 2005 >-270423

13
P2R reference P2R reference 77289
Maker reference Maker reference 270423

FUEL FILTER OEM PIAGGIO 125 MP3 2007 >, X7 2008 >, X8 2004 >, X9 2003 >, X-EVO 2007 >, VESPA GTS 2007 > 50 FLY 4T 2005 >/GILERA 125 NEXUS 2007 >, RUNNER 2004 > 50 RUNNER PURE-JET 2005 >-270423

More information

Quantity required : 1

BRACKET ELASTIC OEM PIAGGIO COMMON A LA RANGE-272842

14
P2R reference P2R reference 66118
Maker reference Maker reference 272842

BRACKET ELASTIC OEM PIAGGIO COMMON A LA RANGE-272842

More information

Quantity required : 1
