Vehicle Exploded View - MOTO-GUZZI NEVADA 350 1992-1993
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

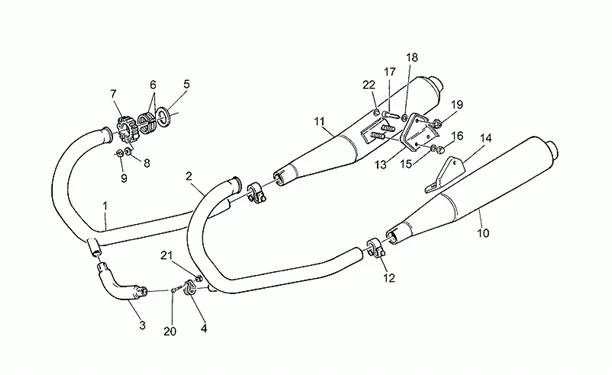

Chassis : 33.30 GROUPE ECHAPPEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/496/Nevada_350_1992-1993_33.30.PNG)
1 |
|
||||||
|
1 |
TUYAU D ECHAPPEMENT |
||||||
|
2 |
TUYAU D ECHAPPEMENT |
||||||
|
2 |
TUYAU D ECHAPPEMENT |
||||||
|
3 |
TUYAU DE LIAISON |
||||||
|
4 |
GU31126960-CLAMP More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/4/6/3/img/129463.jpg)
5 |
GASKET EXHAUST OEM PIAGGIO MOTO-GUZZI 750 BREVA, V7, NEVADA, STRADA, TARGA, V50, V65-GU19025280 More informationQuantity required : 2 |
||||||
|
6 |
GU19025460-SPACER More informationQuantity required : 4 |
||||||
|
7 |
GU19121050 - FLASQUE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/2/4/img/131924.jpg)
8 |
WASHER SPRING (6. 7X11. 8X0. 4) OEM PIAGGIO COMMON A LA RANGE-GU61013800 More informationQuantity required : 4 |
||||||
|
9 |
GU92701062 - ECROU More informationQuantity required : 4 |
||||||
|
10 |
GU31122960-SILENCER * More informationQuantity required : 1 |
||||||
|
11 |
SILENCIEUX |
||||||
|
12 |
GU31123460-CLAMP More informationQuantity required : 2 |
||||||
|
13 |
PLAQUE |
||||||
|
14 |
GU31128760-PLATE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/3/2/img/131932.jpg)
15 |
WASHER ELASTIC (8X15X0. 3) OEM PIAGGIO COMMON A LA RANGE-GU61270300 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/6/1/img/132561.jpg)
16 |
NUT BORGNE (D8) OEM PIAGGIO COMMON A LA RANGE-GU92781081 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/8/7/img/133187.jpg)
17 |
SCREW BTR (8X20) OEM PIAGGIO COMMON A LA RANGE-GU98682420 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/8/img/73448.jpg)
18 |
WASHER (8, 4X13X0, 8) OEM PIAGGIO COMMON A LA RANGE-GU14615901 More informationQuantity required : 2 |
||||||
|
19 |
GU92660008-NUT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/2/1/1/img/133211.jpg)
20 |
GU98692325-SCREW TCEI M6X25 More informationQuantity required : 2 |
||||||
|
21 |
GU61127220-BUSH More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/9/4/7/img/129947.jpg)
22 |
CAP COLONNE DE STEERING OEM PIAGGIO MOTO GUZZI BELLAGIO 940 2007 > 2013, BREVA 750 2003 > 2009, CALIFORNIA 1994 > 2012, NEVADA 1992 > 2013-GU23943410 More informationQuantity required : 2 |
