Vehicle Exploded View - MOTO-GUZZI NEVADA 350 1992-1993
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

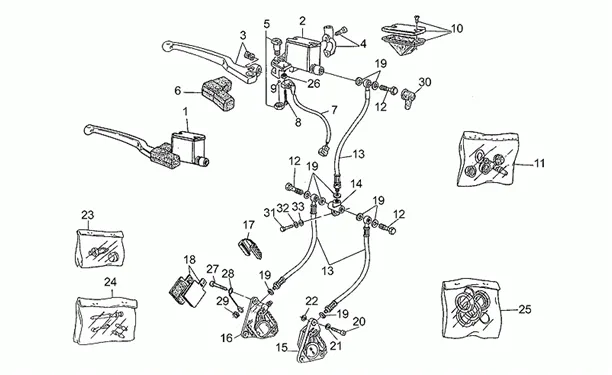

Chassis : 33.17 MAÎT. CYL. FREIN AV
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/496/Nevada_350_1992-1993_33.17.PNG)
1 |
GU28660178 - POMPE FREIN More informationQuantity required : 1 |
||||||
|
2 |
GU28660178 - POMPE FREIN More informationQuantity required : 1 |
||||||
|
3 |
Levier frein avant |
||||||
|
4 |
AP8113203-CAVALIER LEVER BRAKE More informationQuantity required : 1 |
||||||
|
5 |
GU27604815-PIVOT More informationQuantity required : 1 |
||||||
|
6 |
GU27663615 - CAPUCHON More informationQuantity required : 1 |
||||||
|
7 |
Interrupteur stop |
||||||
|
8 |
GU98200214 - VIS More informationQuantity required : 2 |
||||||
|
9 |
GU92295708 - BILLE More informationQuantity required : 1 |
||||||
|
10 |
GU27661115 - COUVERCLE POMPE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/2/6/2/img/130262.jpg)
11 |
KIT REVISION BRAKE MASTER CYLINDER FRONT OEM PIAGGIO MOTO-GUZZI 1000 LE-MANS, STRADA, V10, DAYTONA, 1100 CALIFORNIA-GU28659378 More informationQuantity required : 1 |
||||||
|
12 |
GU95990028 - VIS TUYAU HUILE * More informationQuantity required : 3 |
||||||
|
13 |
GU31657160 - TUYAU FREIN AV. More informationQuantity required : 3 |
||||||
|
14 |
GU31656860-REPARTITEUR More informationQuantity required : 1 |
||||||
|
15 |
GU31652265 - PINCE FREIN AV DROIT GRIMECA More informationQuantity required : 1 |
||||||
|
16 |
GU31652365 - ETRIER AV GAUCHE More informationQuantity required : 1 |
||||||
|
17 |
GU39654700 - COUVERCLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/0/5/4/img/130054.jpg)
18 |
BRAKE PADS REAR OEM PIAGGIO MOTO-GUZZI V50, V65, V10, V11, STRADA, NEVADA, DAYTONA-GU27654610 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/9/4/9/img/129949.jpg)
19 |
WASHER HOSE BRAKE (10X1. 5X1) OEM MOTO GUZZI COMMON A LA RANGE-GU25656100 More informationQuantity required : 8 |
||||||
|
20 |
GU98622422 - VIS More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/3/2/img/131932.jpg)
21 |
WASHER ELASTIC (8X15X0. 3) OEM PIAGGIO COMMON A LA RANGE-GU61270300 More informationQuantity required : 4 |
||||||
|
22 |
GU95100250-WASHER 8, 5X18X0, 5 More informationQuantity required : 1 |
||||||
|
22 |
GU95100251 - RONDELLE 8,5X18X0,8 More informationQuantity required : 1 |
||||||
|
23 |
GU65659200 - KIT DE VIS More informationQuantity required : 1 |
||||||
|
24 |
GU39659100 - AXES+RESSORT More informationQuantity required : 1 |
||||||
|
25 |
GU39659000 - KIT RÚVISION PINCE More informationQuantity required : 1 |
||||||
|
26 |
|
||||||
|
27 |
GU98622425 - VIS M8X25 More informationQuantity required : 1 |
||||||
|
28 |
GU23655770 - OEILLET More informationQuantity required : 1 |
||||||
|
29 |
GU91551120 - BAGUE More informationQuantity required : 1 |
||||||
|
30 |
GU39663801-CAPUCHON More informationQuantity required : 1 |
||||||
|
31 |
GU98054330 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/3/img/73553.jpg)
32 |
WASHER PLATE (6, 15X11X0, 8) OEM PIAGGIO COMMON A LA RANGE-GU95008206 More informationQuantity required : 1 |
||||||
|
33 |
Rondelle évent. |
