Vehicle Exploded View - MOTO-GUZZI NEVADA 350 1992-1993
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

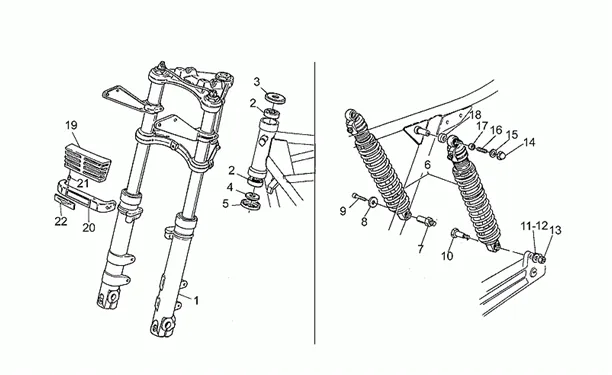

Chassis : 33.21 SUSPENSION AVANT/ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/496/Nevada_350_1992-1993_33.21.PNG)
1 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/5/3/2/img/108532.jpg)
2 |
BEARING DE COLONNE DE STEERING OEM PIAGGIO MOTO-GUZZI 750 BREVIA, NEVADA, V7, 940 BELLAGIO, 1000 DAYTONA, LE-MANS, V10, 1100 V11, CALIFORNIA, SPORT-GU92249225 More informationQuantity required : 2 |
||||||
|
3 |
GU14494600 - COUPELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/2/6/0/img/129260.jpg)
4 |
GU14516700 - RONDELLE D'APPUI More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/2/6/1/img/129261.jpg)
5 |
PROTECTOR-POUSSIERE DE SET OF STEERING OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU14517000 More informationQuantity required : 1 |
||||||
|
6 |
GU31550262 - AMMORTIZZATORE More informationQuantity required : 2 |
||||||
|
7 |
GU23555281-SPINDLE More informationQuantity required : 1 |
||||||
|
8 |
GU95100239-WASHER More informationQuantity required : 1 |
||||||
|
9 |
VIS |
||||||
|
10 |
GU23555280 - AXE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/5/3/img/132753.jpg)
11 |
WASHER AJUSTEMENT (10. 5X18X0. 8) OEM MOTO GUZZI-GU95129180 More informationQuantity required : 1 |
||||||
|
12 |
GU95022110-WASHER EVENT. More informationQuantity required : 1 |
||||||
|
13 |
GU92602411-NUT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/6/1/img/132561.jpg)
14 |
NUT BORGNE (D8) OEM PIAGGIO COMMON A LA RANGE-GU92781081 More informationQuantity required : 2 |
||||||
|
15 |
GU95004208 - RONDELLE More informationQuantity required : 2 |
||||||
|
16 |
GU96508032 - GOUJON More informationQuantity required : 2 |
||||||
|
17 |
GU91180804-SPACER More informationQuantity required : 2 |
||||||
|
18 |
GU91181407-SPACER More informationQuantity required : 2 |
||||||
|
19 |
GU23505810 - GRILLE More informationQuantity required : 1 |
||||||
|
20 |
GU31751365 - SUPPORT CLIGNOTANS More informationQuantity required : 1 |
||||||
|
21 |
GU23922210-PIVOT More informationQuantity required : 2 |
||||||
|
22 |
Plaquette marque adhésive |
