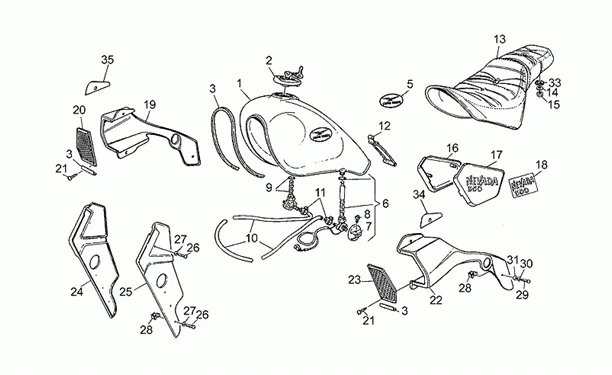

Chassis : 33.03 CARROSSERIE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/496/Nevada_350_1992-1993_33.03.PNG)
1 |
GU311002601 - RESERVOIR More informationQuantity required : 1 |
||||||
|
1 |
GU31100260 - RESERVOIR More informationQuantity required : 1 |
||||||
|
2 |
Bouchon réservoir essence |
||||||
|
3 |
GU00823932085-PROFILO PVC NERO More informationQuantity required : 1 |
||||||
|
5 |
GU31917365 - DECALCOMANIE More informationQuantity required : 2 |
||||||
|
6 |
ROBINET |
||||||
|
7 |
DOUILLE |
||||||
|
8 |
GU98200306 - VIS More informationQuantity required : 2 |
||||||
|
9 |
GU31105460 - ROBINET More informationQuantity required : 1 |
||||||
|
10 |
HOSE DE VALVE RENIFLARD 12, 5X7, 8 5/16 " OEM MOTO GUZZI COMMON A LA RANGE-GU00823956080 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/1/3/3/img/130133_20251023145539.jpg)
11 |
CLAMP CLIC (12. 5X8) OEM PIAGGIO COMMON A LA RANGE-GU28157950 More informationQuantity required : 4 |
||||||
|
12 |
GU19102750 - TIRANT More informationQuantity required : 1 |
||||||
|
13 |
SELLA COMPLETA DI FISSAGGIO |
||||||
|
14 |
GU95100141-WASHER 6, 5X20X2 More informationQuantity required : 2 |
||||||
|
15 |
GU92630106-NUT M6X1 More informationQuantity required : 2 |
||||||
|
16 |
GU234762101-COVER BATTERY More informationQuantity required : 1 |
||||||
|
16 |
COUVERCLE BATTERIE |
||||||
|
16 |
|
||||||
|
17 |
GU234763101 - COUVERCLE BATTERIE More informationQuantity required : 1 |
||||||
|
17 |
COUVERCLE BATTERIE |
||||||
|
17 |
|
||||||
|
18 |
DECALCOMANIE D |
||||||
|
19 |
|
||||||
|
20 |
|
||||||
|
21 |
GU99210210-SCREW TARAUD More informationQuantity required : 8 |
||||||
|
22 |
|
||||||
|
23 |
|
||||||
|
24 |
|
||||||
|
25 |
|
||||||
|
26 |
GU98230620-SCREW More informationQuantity required : 6 |
||||||
|
27 |
GU95001206 - RONDELLE More informationQuantity required : 6 |
||||||
|
28 |
GU92660601-NUT EN CAGE More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/6/1/img/68461.jpg)
29 |
SCREW BTR HEAD BOMBEE (6X20) OEM PIAGGIO COMMON A LA RANGE-672380 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/3/img/73553.jpg)
30 |
WASHER PLATE (6, 15X11X0, 8) OEM PIAGGIO COMMON A LA RANGE-GU95008206 More informationQuantity required : 6 |
||||||
|
31 |
GU91180605-SPACER More informationQuantity required : 2 |
||||||
|
33 |
GU93110082 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
|
34 |
DECALCOMANIE D |
||||||
|
35 |
DECALCOMANIE D |
