Vehicle Exploded View - MOTO-GUZZI NEVADA 350 1992-1993
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

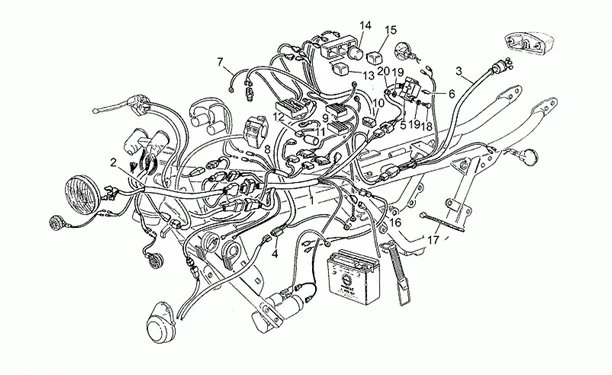

Chassis : 33.12 CIRCUIT ELECTRIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/496/Nevada_350_1992-1993_33.12.PNG)
1 |
|
||||||
|
2 |
|
||||||
|
3 |
|
||||||
|
4 |
GU29725850 - FAISCEAU PRINCIPAL More informationQuantity required : 1 |
||||||
|
5 |
Boîte à fusibles |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/4/4/img/66244.jpg)
6 |
BLADE FUSE STANDARD 15A OEM PIAGGIO COMMON A LA RANGE-290860 More informationQuantity required : 6 |
||||||
|
7 |
|
||||||
|
8 |
GU31722140-CABLES More informationQuantity required : 1 |
||||||
|
9 |
GU23721494-CENTRE ELECTRONIC More informationQuantity required : 2 |
||||||
|
10 |
GU27723835-BRACKET SIRENE More informationQuantity required : 2 |
||||||
|
11 |
GU27710435 - CONDENSATEUR More informationQuantity required : 1 |
||||||
|
12 |
GU18759550 - FILS DE MASSE More informationQuantity required : 1 |
||||||
|
13 |
Relais démarrage |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/9/img/73449.jpg)
14 |
FLASHER UNIT (FOR 21W BULB) "PIAGGIO GENUINE PART" COMMON TO ALL MOTO-GUZZI RANGE -GU17750520- More informationQuantity required : 1 |
||||||
|
15 |
Relais sirènes |
||||||
|
16 |
RALLONGE GR.CABLE |
||||||
|
17 |
GU14609650-CLAMP 3, 6X20, 6 More informationQuantity required : 1 |
||||||
|
18 |
Vis |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/0/3/img/132703.jpg)
19 |
WASHER PLATE (5. 25X14X1. 5) OEM PIAGGIO COMMON A LA RANGE-GU95100059 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/0/0/img/132500.jpg)
20 |
NUT AUTOBLOQUANT/NYLSTOP (M5) OEM PIAGGIO COMMON A LA RANGE-GU92630105 More informationQuantity required : 2 |
