Vehicle Exploded View - APRILIA MXV 450 Cross 2008-2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

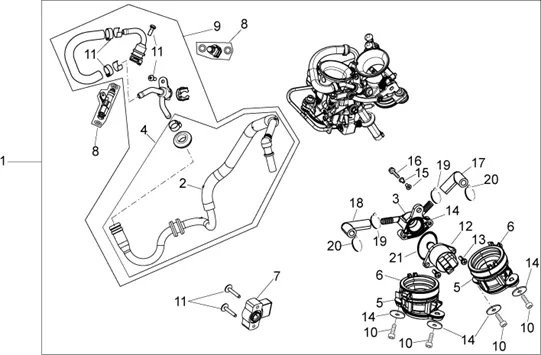

Moteur : 29.43 CORPS À PAPILLON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/690/MXV_450_Cross_2008-2010_29.43.PNG)
1 |
8559284 - CORPS A PAPILLON CPL. More informationQuantity required : 1 |
||||||
|
2 |
855185 - TUYAU ESSENCE More informationQuantity required : 1 |
||||||
|
3 |
855728-FITTING D'ADMISS. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/7/img/71397.jpg)
4 |
CLAMP CLIC VERT (6. 6X11X1) OEM PIAGGIO COMMON A LA RANGE-AP8120446 More informationQuantity required : 1 |
||||||
|
5 |
853871 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
6 |
853877 - COLLIER More informationQuantity required : 2 |
||||||
|
7 |
AP9101010 - POTENZIOMETRO More informationQuantity required : 1 |
||||||
|
8 |
AP9101011 - INIETTORE More informationQuantity required : 2 |
||||||
|
9 |
AP9101012-FUEL RAIL CPL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/7/img/68497.jpg)
10 |
SCREW BTR (6X20) OEM PIAGGIO COMMON A LA RANGE-709674 More informationQuantity required : 4 |
||||||
|
11 |
AP9101014-KIT VITI, FASCETTE, CLIP More informationQuantity required : 1 |
||||||
|
12 |
855771-ENGINE STEPPER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/7/img/71897.jpg)
13 |
SCREW CRUCIFORME (5X15) TARAUD OEM PIAGGIO COMMON A LA RANGE-AP8150509 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/2/img/65362.jpg)
14 |
WASHER PLATE (6. 4X13X1. 5) OEM PIAGGIO COMMON A LA RANGE-013777 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/8/6/img/68586.jpg)
15 |
WASHER T (5X14) DE SHEET METAL EXHAUST OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 2T-826118 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/9/0/img/68890.jpg)
16 |
SCREW FLANGE TH (5X16) OEM PIAGGIO COMMON A LA RANGE-830061 More informationQuantity required : 1 |
||||||
|
17 |
CM239302-HOSE D'ASPIRATION More informationQuantity required : 1 |
||||||
|
18 |
CM239301-HOSE D'ASPIRATION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/4/img/72894.jpg)
19 |
HOSE CLAMP HOSE (10X13) OEM PIAGGIO COMMON A LA RANGE-CM002908 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/0/img/66030_20251020091649.JPG)
20 |
CLAMP SERRAGE HOSE (10-16 MM) OEM PIAGGIO COMMON A LA RANGE-CM001913 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/1/2/img/65812.jpg)
21 |
O-RING SIDE STAND OEM PIAGGIO 400-500 MP3, BEVERLY, 400 X8, X-EVO, 500 X10, X9/GILERA 500 NEXUS, FUOCO, GP 800/APRILIA 400-500 ATLANTIC, SCARABEO, 850 SRV-191189 More informationQuantity required : 1 |
