Vehicle Exploded View - APRILIA MXV 450 Cross 2008-2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

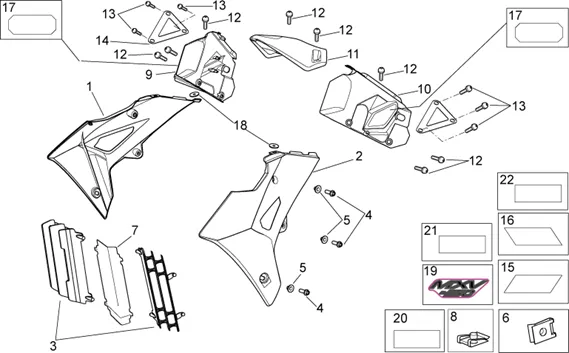

Chassis : 28.08 CARROSSERIE AV. II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/690/MXV_450_Cross_2008-2010_28.08.PNG)
1 |
85556000XR3-DUCT D More informationQuantity required : 1 |
||||||
|
1 |
89835600XR3 - CONVOYEUR D, ROUGE More informationQuantity required : 1 |
||||||
|
2 |
85556100XR3-DUCT G More informationQuantity required : 1 |
||||||
|
2 |
89835700XR3-DUCT G, RED More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/2/6/7/img/97267.jpg)
3 |
GRILLE DE RADIATOR OEM APRILIA 450-550 RXV, SXV-AP9100366 More informationQuantity required : 2 |
||||||
|
4 |
AP9100645 - VITE TE FLANGIATA M6X16 INOX More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/5/9/7/img/72597.jpg)
5 |
WASHER EN T (10X16X3, 5) FOR SCREW OF 6 OEM PIAGGIO COMMON A LA RANGE-AP9100053 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
6 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 6 |
||||||
|
7 |
855595-COVER RADIATOR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
8 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 2 |
||||||
|
9 |
855558-COVER FILTER D. More informationQuantity required : 1 |
||||||
|
10 |
855605-COVER FILTER G. More informationQuantity required : 1 |
||||||
|
11 |
855559 - COUVERCLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/4/img/71934.jpg)
12 |
SCREW BTR HEAD BOMBEE (5X12) OEM PIAGGIO COMMON A LA RANGE-AP8152267 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/7/img/71887.jpg)
13 |
SCREW CRUCIFORME (3. 9X10) TARAUD STAINLESS STEEL FOR PLASTIQUE OEM PIAGGIO COMMON A LA RANGE-AP8150444 More informationQuantity required : 6 |
||||||
|
14 |
855850-PLATE More informationQuantity required : 2 |
||||||
|
15 |
855949-EPONGE More informationQuantity required : 1 |
||||||
|
16 |
855950-EPONGE More informationQuantity required : 1 |
||||||
|
17 |
855851 - FILTRE AIR More informationQuantity required : 2 |
||||||
|
18 |
855861-BUSH More informationQuantity required : 2 |
||||||
|
19 |
890694-DECAL More informationQuantity required : 2 |
||||||
|
20 |
890692-DECAL More informationQuantity required : 2 |
||||||
|
21 |
896129-DECAL More informationQuantity required : 1 |
||||||
|
21 |
898345 - DECALCO More informationQuantity required : 1 |
||||||
|
22 |
896130-DECAL More informationQuantity required : 1 |
||||||
|
22 |
898346-DECAL More informationQuantity required : 1 |
