Vehicle Exploded View - APRILIA MXV 450 Cross 2008-2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

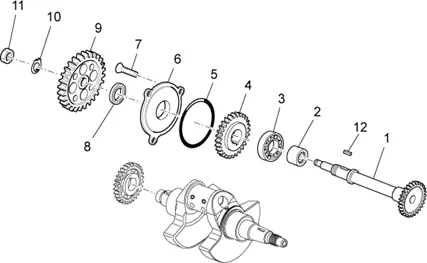

Moteur : 29.35 ARBRE TRNSMISSION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/690/MXV_450_Cross_2008-2010_29.35.PNG)
1 |
851008-SHAFT TRNSMISSION More informationQuantity required : 1 |
||||||
|
2 |
85106R - ROULEMENT A ROULEAUX D14-D22-S More informationQuantity required : 1 |
||||||
|
3 |
AP9150387-CUSCIN. SFERE D12-D28 More informationQuantity required : 1 |
||||||
|
4 |
AP9150130-GEAR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/7/7/4/img/97774.jpg)
5 |
O-RING (0. 79X1. 78) OEM PIAGGIO COMMON A LA RANGE-AP9150348 More informationQuantity required : 1 |
||||||
|
6 |
AP9150483-FLANGIA CHIUS. V. DISTRI More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/4/8/img/72648.jpg)
7 |
SCREW TORX (5X12) OEM PIAGGIO COMMON A LA RANGE-B014598 More informationQuantity required : 3 |
||||||
|
8 |
AP9150390-ANELLO DI TEN. D28-D20 More informationQuantity required : 1 |
||||||
|
9 |
AP9150290 - ENGRANAGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/3/2/img/66132.jpg)
10 |
WASHER (12X22X1) OEM PIAGGIO COMMON A LA RANGE-274246 More informationQuantity required : 1 |
||||||
|
11 |
851011-NUT M12X1X4, 5 More informationQuantity required : 1 |
||||||
|
12 |
AP9150389-LINGUETTA4X4X18UNI6604 More informationQuantity required : 1 |
