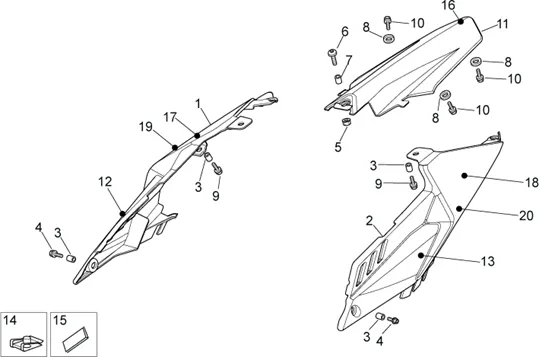

Chassis : 28.12 CARROSSERIE POSTERIEURE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/690/MXV_450_Cross_2008-2010_28.12.PNG)
1 |
85590200XR3 - QUEUE D. ROUGE More informationQuantity required : 1 |
||||||
|
2 |
85590100XR3 - QUEUE G. ROUGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/5/9/7/img/72597.jpg)
3 |
WASHER EN T (10X16X3, 5) FOR SCREW OF 6 OEM PIAGGIO COMMON A LA RANGE-AP9100053 More informationQuantity required : 4 |
||||||
|
4 |
AP9100645 - VITE TE FLANGIATA M6X16 INOX More informationQuantity required : 2 |
||||||
|
5 |
AP9100434-DADO AUTOBL. FLANGIATO M6X1 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/4/img/71914.jpg)
6 |
SCREW BTR HEAD BOMBEE (6X25) OEM PIAGGIO COMMON A LA RANGE-AP8152117 More informationQuantity required : 1 |
||||||
|
7 |
AP9100594-BUSSOLA COLLETTO D16-D10-SP7 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/5/9/img/70959.jpg)
8 |
SCREW FLANGE TH (6X10) OEM PIAGGIO COMMON A LA RANGE-969296 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/6/5/img/67365.jpg)
9 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-598839 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/8/img/71808.jpg)
10 |
WASHER PLATE (6. 6X18X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150015 More informationQuantity required : 3 |
||||||
|
11 |
89100200XR3 - GARDE-BOUE ARRIERE ROUGE More informationQuantity required : 1 |
||||||
|
12 |
890697-DECAL More informationQuantity required : 1 |
||||||
|
12 |
899087 - DECALCO More informationQuantity required : 1 |
||||||
|
13 |
890698-DECAL More informationQuantity required : 1 |
||||||
|
13 |
899088-DECAL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
14 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 2 |
||||||
|
15 |
858545-FRONT PROTECTOR More informationQuantity required : 1 |
||||||
|
16 |
890699-DECAL * More informationQuantity required : 1 |
||||||
|
17 |
899114-DECAL More informationQuantity required : 1 |
||||||
|
18 |
899115-DECAL More informationQuantity required : 1 |
||||||
|
19 |
899089-DECAL More informationQuantity required : 1 |
||||||
|
20 |
899090-DECAL More informationQuantity required : 1 |
