Vehicle Exploded View - APRILIA MXV 450 Cross 2008-2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

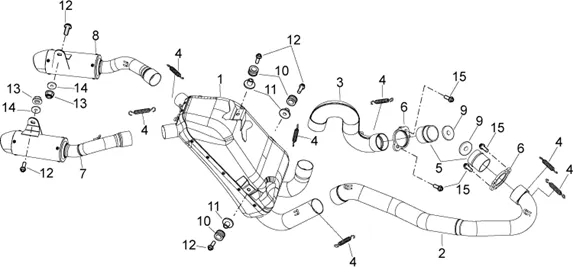

Chassis : 28.16 GROUPE ECHAPPEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/690/MXV_450_Cross_2008-2010_28.16.PNG)
1 |
856000 - SILENCIEUX More informationQuantity required : 1 |
||||||
|
2 |
855998 - COLLECTEUR More informationQuantity required : 1 |
||||||
|
3 |
855999 - COLLECTEUR More informationQuantity required : 1 |
||||||
|
4 |
855997-SPRING More informationQuantity required : 7 |
||||||
|
5 |
855996 - MOYEU More informationQuantity required : 2 |
||||||
|
6 |
855995 - BRIDE More informationQuantity required : 2 |
||||||
|
7 |
855924 - EXTR?MITE POT ECHAP. More informationQuantity required : 1 |
||||||
|
8 |
855923 - EXTR?MITE POT ECHAP. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/2/3/2/img/97232.jpg)
9 |
EXHAUST GASKET- "PIAGGIO GENUINE PART" APRILIA 450-550 RXV, SXV -AP9100252 More informationQuantity required : 2 |
||||||
|
10 |
855753-RUBBER MOUNT SILENCER D'ECHAPPEMENT More informationQuantity required : 3 |
||||||
|
11 |
855788-SPACER More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/3/img/71943.jpg)
12 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE-AP8152280 More informationQuantity required : 5 |
||||||
|
13 |
AP9100434-DADO AUTOBL. FLANGIATO M6X1 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/8/img/71808.jpg)
14 |
WASHER PLATE (6. 6X18X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150015 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/6/5/img/67365.jpg)
15 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-598839 More informationQuantity required : 4 |
