Vehicle Exploded View - PIAGGIO MP3 300 ie E4 LT BUSINESS-SPORT ABS 2016
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

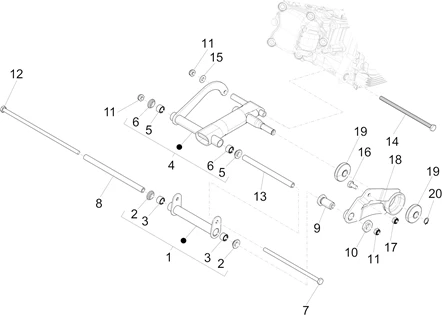

Suspensions - roues : 04.01 BRAS OSCILLANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/773/MP3_300_ie_E4_LT_BUSINESS-SPORT_ABS_2016_04.01.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/6/0/7/5/img/76075.jpg)
1 |
SWINGING ARM "PIAGGIO GENUINE PART" 300 MP3 BUSINESS 2014> -1C001010 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/3/5/img/67335.jpg)
2 |
GASKET FOR SWINGING ARM "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER /MAXISCOOTER -597317 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/0/4/img/67004.jpg)
3 |
ROLLER BEARING FOR SWINGING ARM "PIAGGIO GENUINE PART" FOR ALL SCOOTERS 125-250-300 -56127R More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/6/0/7/6/img/76076.jpg)
4 |
1C001011 - BRAS OSCILLANT COMPLET More informationQuantity required : 1 |
||||||
|
5 |
GASKET FOR SWINGING ARM "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER /MAXISCOOTER -597317 More informationQuantity required : 2 |
||||||
|
6 |
ROLLER BEARING FOR SWINGING ARM "PIAGGIO GENUINE PART" FOR ALL SCOOTERS 125-250-300 -56127R More informationQuantity required : 2 |
||||||
7 |
667827 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/5/6/5/img/95565.jpg)
8 |
SPACER- FOR SWINGING ARM (L.235,5) "PIAGGIO GENUINE PART" 300-350 MP3, 350 BEVERLY, 125-350 X10 -CM067809 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/5/1/img/67351.jpg)
9 |
SCREW - FOR ENGINE SILENTBLOC SUPPORT "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -597774 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/6/7/img/67067.jpg)
10 |
564611 - ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/5/img/63765.jpg)
11 |
NUT - M10 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -002440 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/2/3/7/img/90237.jpg)
12 |
667441 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/5/6/3/img/95563.jpg)
13 |
SPACER- FOR SWINGING ARM (198MM) "PIAGGIO GENUINE PART" 125 X10, 350 MP3, X10, BEVERLY, 300 MP3 -CM067807 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/3/0/img/67330.jpg)
14 |
597081 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/8/9/img/65789.jpg)
15 |
178790 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/5/4/img/67354.jpg)
16 |
BOLT "PIAGGIO GENUINE PART" -597893- More informationQuantity required : 1 |
||||||
|
17 |
NUT - M10 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -002440 More informationQuantity required : 1 |
||||||
|
18 |
1C003207 - PATTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/4/7/8/img/82478.jpg)
19 |
SILENBLOC ON SWING ARM "PIAGGIO GENUINE PART" 125-250-300 VESPA GTS, 125-300-350 BEVERLY, 125-300 YOURBAN, 125 X10 -599250 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/1/4/img/63814.jpg)
20 |
CIRCLIPS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -006416 More informationQuantity required : 1 |
