Vehicle Exploded View - PIAGGIO MP3 300 ie E4 LT BUSINESS-SPORT ABS 2016
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

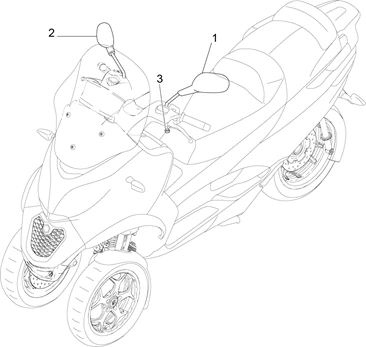

Châssis - parties plastiques - carrosseries : 02.45 RÉTROVISEUR/S
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/773/MP3_300_ie_E4_LT_BUSINESS-SPORT_ABS_2016_02.45.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/2/3/8/img/96238.jpg)
1 |
MIRROR- LEFT "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 2007> -CM174708 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/2/6/7/img/96267.jpg)
1 |
MIRROR- LEFT "PIAGGIO GENUINE PART" 125-300 YOURBAN, 300-500 MP3 SPORT/BUZINESS BLACK -CM175019 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/2/3/9/img/96239.jpg)
2 |
MIRROR- RIGHT"PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 2007> VERSION BUSINESS -CM174709 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/2/6/8/img/96268.jpg)
2 |
MIRROR- RIGHT "PIAGGIO GENUINE PART" "PIAGGIO GENUINE PART" 125-300 YOURBAN, 300-500 MP3 SPORT/BUZINESS BLACK -CM175020 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/5/5/img/65455.jpg)
3 |
NUT - M8 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -020008 More informationQuantity required : 2 |
